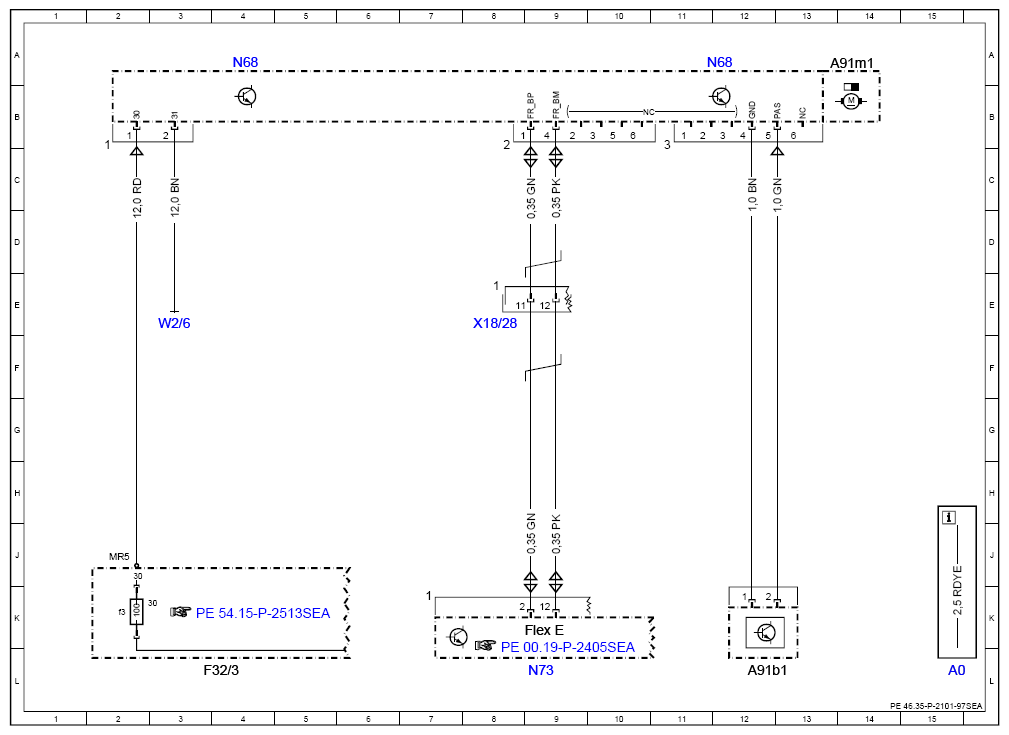

Wiring Diagram For Electric Power Steering Control Unit - PE46.35-P-2101-97SEA
Model 217 up to model year 2018 Control unit N68
Model 222 up to model year 2018 Control unit N68
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A91b1 | Electric power steering torque sensor | 12L |
| A91m1 | Electric power steering actuator motor | 14A |
| F32/3 | Engine compartment prefuse box | 4L |
| F32/3f3 | Fuse 3 | 2K |
| Flex E | Chassis FlexRay | 9K |
| N68 | Electrical power steering control unit | 4A |
| N68 | Electrical power steering control unit | 12A |
| N73 | Electronic ignition switch control unit | 9L |
| W2/6 | Electric power steering ground point | 3E |
| X18/28 | Left cockpit/engine compartment electrical connector | 8E |
