Remove/Install Inner Tie Rod With Axial Joint - AR46.40-P-0201LF

MODEL 217

MODEL 222

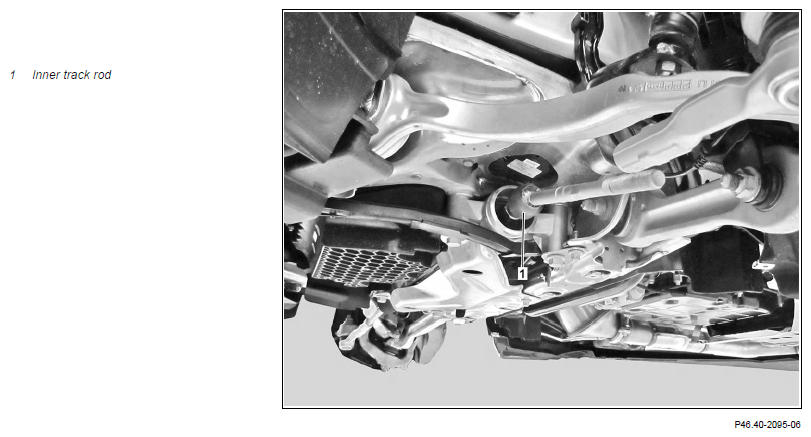

Shown on MODEL 222

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove bellows		AR46.40-P-9998LF
2	Unscrew inner tie rod (1)	Inner tie rod to rack-and-pinion steering	*BA46.40-P-1003-01M
		Open end wrench	Fig 1
3	Install in the reverse order

TIE ROD

Number	Designation		MODEL 217	MODEL 222
BA46.40-P-1003-01M	Inner tie rod to rack-and-pinion steering	Nm	110	110

Fig 1: Identifying Open End Wrench (201 589 00 01 00)

Courtesy of MERCEDES-BENZ USA
