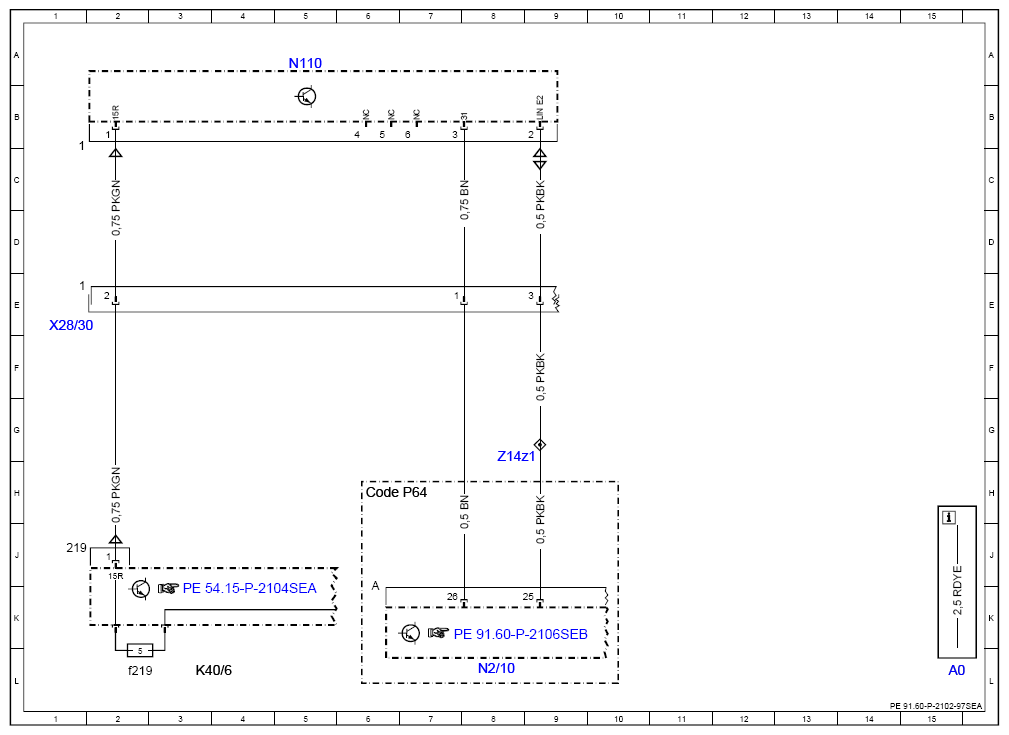

Wiring Diagram For Weight Sensing System (WSS) Control Unit - PE91.60-P-2102-97SEA
Model 217 up to model year 2018 with code U10 (Automatic seat occupancy recognition and child seat recognition) Control unit N110
Model 222 up to model year 2018 with code U10 (Automatic seat occupancy recognition and child seat recognition) Control unit N110
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| Code P64 | Memory package | 6H |
| K40/6 | Left fuse and relay module | 3L |
| K40/6f219 | Fuse 219 | 2L |
| N110 | Weight Sensing System (WSS) control unit | 5A |
| N2/10 | Supplemental restraint system control unit | 8L |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 1E |
| Z14z1 | Seat occupied LIN (LIN E2) connector sleeve | 8G |
