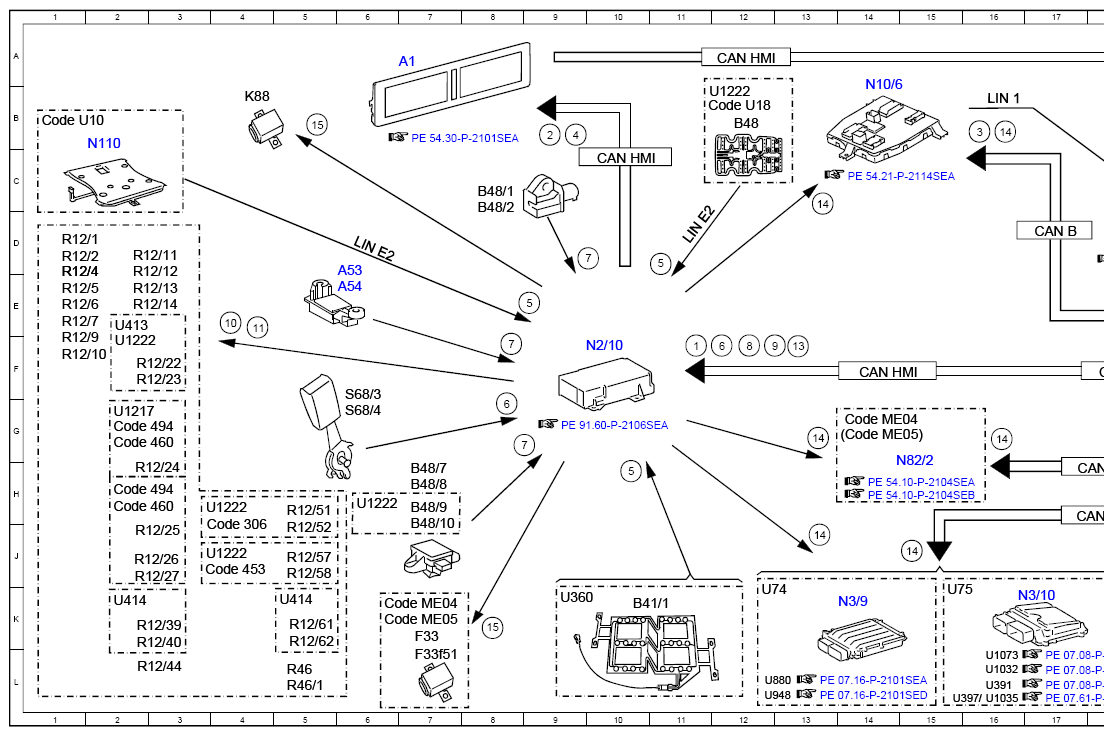

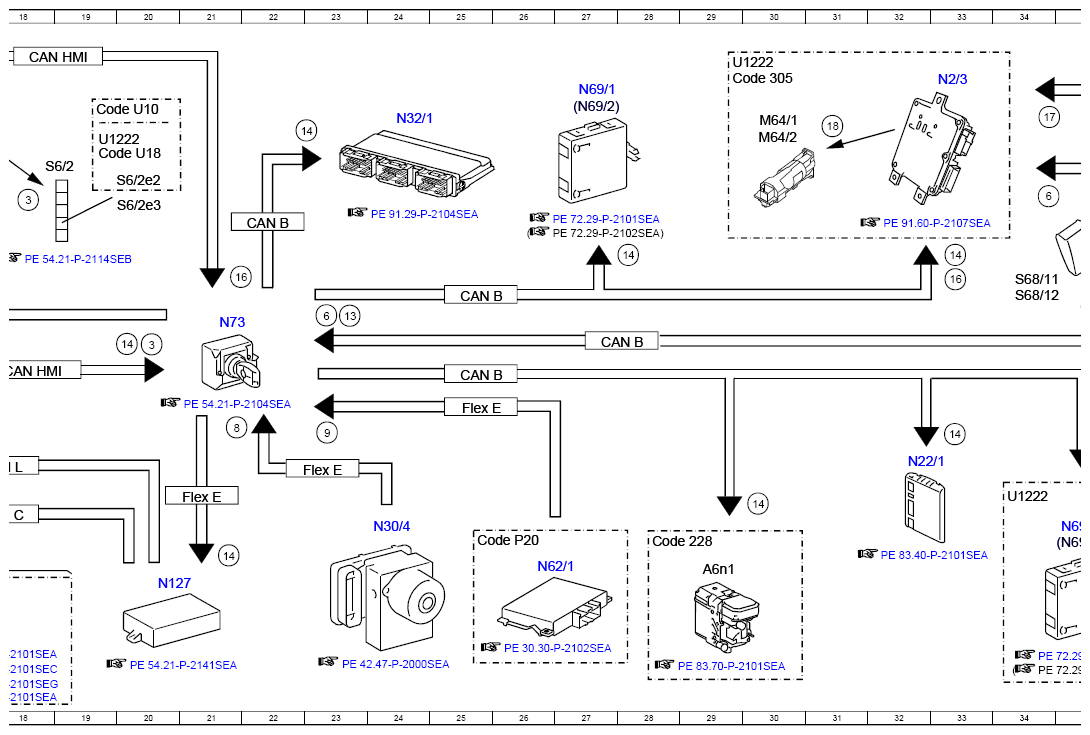

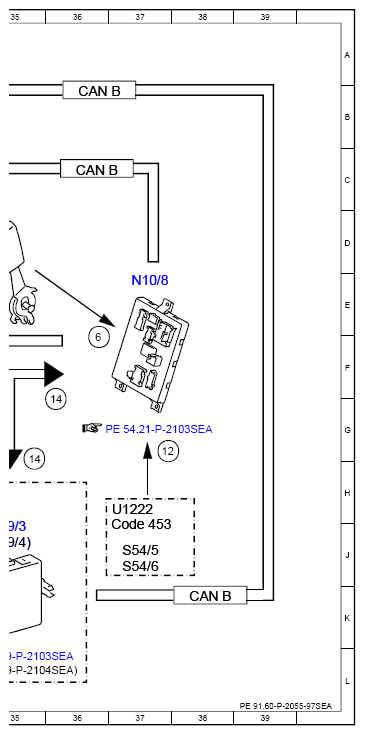

Actuate Supplemental Restraint System, Electrical Function Schematic - PE91.60-P-2055-97SEA
Model 217, 222 up to model year 2018
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 11F |
| 10 | Squib, actuation | 4E |
| 11 | Restraint equipment, actuation | 4E |
| 12 | Rear passenger compartment backrest inclination switch, status | 37G |
| 13 | Rear passenger compartment backrest in sleep position, signal | 13F |
| 13 | Rear passenger compartment backrest in sleep position, signal | 23E |
| 14 | Crash, signal | 20F |
| 14 | Crash, signal | 33D |
| 14 | Crash, signal | 22B |
| 14 | Crash, signal | 16B |
| 14 | Crash, signal | 30H |
| 14 | Crash, signal | 13J |
| 14 | Crash, signal | 15J |
| 14 | Crash, signal | 16G |
| 14 | Crash, signal | 21J |
| 14 | Crash, signal | 28D |
| 14 | Crash, signal | 13G |
| 14 | Crash, signal | 33G |
| 14 | Crash, signal | 13C |
| 14 | Crash, signal | 35H |
| 14 | Crash, signal | 36G |
| 15 | Pyrofuse, actuation | 8K |
| 15 | Pyrofuse, actuation | 5B |
| 16 | Vehicle speed, signal | 33E |
| 16 | Vehicle speed, signal | 21E |
| 17 | Main locking position microswitch, status | 34B |
| 18 | Active belt buckle motor, actuation | 31B |
| 2 | Indicator lamp, request | 9B |
| 3 | Front passenger airbag indicator lamp, request | 16B |
| 3 | Front passenger airbag indicator lamp, request | 18C |
| 3 | Front passenger airbag indicator lamp, request | 20F |
| 4 | Supplemental restraint system messages, request | 9B |
| 5 | Front passenger seat occupied recognition, status | 10H |
| 5 | Front passenger seat occupied recognition, status | 9E |
| 5 | Front passenger seat occupied recognition, status | 11D |
| 6 | Seat belt buckle switch, status | 8G |
| 6 | Seat belt buckle switch, status | 12F |
| 6 | Seat belt buckle switch, status | 36F |
| 6 | Seat belt buckle switch, status | 34C |
| 6 | Seat belt buckle switch, status | 23E |
| 7 | Impact detection, signal | 8G |
| 7 | Impact detection, signal | 8F |
| 7 | Impact detection, signal | 10D |
| 8 | Lateral acceleration, signal | 21G |
| 8 | Lateral acceleration, signal | 12F |
| 9 | Autonomous brake application, signal | 12F |
| 9 | Autonomous brake application, signal | 23G |
| A1 | Instrument cluster | 7A |
| A53 | Left sidebag sensor | 6E |
| A54 | Right sidebag sensor | 6E |
| A6n1 | Stationary heater control unit | 29J |
| B41/1 | Front passenger seat occupied recognition | 10K |
| B48 | Front passenger seat occupied recognition and ACSR | 12B |
| B48/1 | Left frontal acceleration sensor | 8C |
| B48/10 | Right rear door pressure sensor | 7J |
| B48/2 | Right frontal acceleration sensor | 8D |
| B48/7 | Left front door pressure sensor | 7H |
| B48/8 | Right front door pressure sensor | 7H |
| B48/9 | Left rear door pressure sensor | 7H |
| CAN B | Interior CAN | 25E |
| CAN B | Interior CAN | 25F |
| CAN B | Interior CAN | 17D |
| CAN B | Interior CAN | 22D |
| CAN B | Interior CAN | 36C |
| CAN B | Interior CAN | 36B |
| CAN B | Interior CAN | 38K |
| CAN B | Interior CAN | 27F |
| CAN C | Engine CAN | 18H |
| CAN HMI | User interface CAN | 10C |
| CAN HMI | User interface CAN | 14F |
| CAN HMI | User interface CAN | 18A |
| CAN HMI | User interface CAN | 12A |
| CAN HMI | User interface CAN | 18F |
| CAN L | Hybrid CAN | 18H |
| Code 228 | Stationary heater | 28J |
| Code 305 | Rear PRE-SAFE | 29A |
| Code 306 | Beltbag for outer rear seats | 3J |
| Code 453 | Rear reclining seats | 37J |
| Code 453 | Rear reclining seats | 3J |
| Code 460 | Canada version | 2G |
| Code 460 | Canada version | 2H |
| Code 494 | USA version | 2G |
| Code 494 | USA version | 2H |
| Code ME04 | Mild hybrid drive | 6K |
| Code ME04 | Mild hybrid drive | 14G |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 14G |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 6K |
| Code P20 | Driver assistance package | 25J |
| Code U10 | Front passenger seat with weight detection | 1B |
| Code U10 | Front passenger seat with weight detection | 19B |
| Code U18 | Automatic child seat recognition (ACSR [AKSE]) | 11B |
| Code U18 | Automatic child seat recognition (ACSR [AKSE]) | 19C |
| F33 | Rear prefuse box | 7K |
| F33f51 | High-voltage pyrofuse | 7L |
| Flex E | Chassis FlexRay | 25G |
| Flex E | Chassis FlexRay | 23H |
| Flex E | Chassis FlexRay | 21H |
| K88 | Pyrotechnical separator | 4B |
| LIN 1 | Instrument panel LIN | 16B |
| LIN E2 | Seat occupied recognition LIN | 6D |
| LIN E2 | Seat occupied recognition LIN | 11D |
| M64/1 | Left rear seat active belt buckle motor | 30B |
| M64/2 | Right rear seat active belt buckle motor | 30B |
| N10/6 | Front SAM control unit | 14B |
| N10/8 | Rear SAM control unit | 37E |
| N110 | Weight Sensing System (WSS) control unit | 2B |
| N127 | Drivetrain control unit | 20K |
| N2/10 | Supplemental restraint system control unit | 10F |
| N2/3 | Active belt buckle control unit | 33A |
| N22/1 | Climate control control unit | 32H |
| N3/10 | ME-SFI [ME] control unit | 17K |
| N3/9 | CDI control unit | 14K |
| N30/4 | Electronic Stability Program control unit | 24J |
| N32/1 | Driver seat control unit | 24B |
| N62/1 | Radar sensors control unit | 26J |
| N69/1 | Left front door control unit | 27B |
| N69/2 | Right front door control unit | 27B |
| N69/3 | Left rear door control unit | 35J |
| N69/4 | Right rear door control unit | 35J |
| N73 | Electronic ignition switch control unit | 21E |
| N82/2 | Battery management system control unit | 15H |
| R12/1 | Driver ETR [GUS] squib | 1D |
| R12/10 | Front passenger sidebag squib | 1F |
| R12/11 | Left rear sidebag squib | 2D |
| R12/12 | Right rear sidebag squib | 2E |
| R12/13 | Driver airbag squib 1 | 2E |
| R12/14 | Driver airbag squib 2 | 2E |
| R12/2 | Front passenger ETR [GUS] squib | 1D |
| R12/22 | Left windowbag squib | 2F |
| R12/23 | Right windowbag squib | 2F |
| R12/24 | Front passenger kneebag squib | 2H |
| R12/25 | Driver kneebag squib | 2J |
| R12/26 | Front passenger belt force limiter | 2J |
| R12/27 | Driver belt force limiter | 2J |
| R12/39 | Left headbag squib | 2K |
| R12/4 | Front passenger airbag squib 1 | 1E |
| R12/40 | Right headbag squib | 2K |
| R12/44 | Front passenger airbag bleed valve squib | 2L |
| R12/5 | Front passenger airbag squib 2 | 1E |
| R12/51 | Left rear beltbag squib | 5H |
| R12/52 | Right rear beltbag squib | 5J |
| R12/57 | Left rear cushionbag squib | 5J |
| R12/58 | Right rear cushionbag squib | 5J |
| R12/6 | Left rear emergency tensioning retractor squib | 1E |
| R12/61 | Left roll bar squib | 5K |
| R12/62 | Right roll bar squib | 5K |
| R12/7 | Right rear emergency tensioning retractor squib | 1E |
| R12/9 | Driver sidebag squib | 1F |
| R46 | Driver"s seat PRE-SAFE® pulse squib | 5L |
| R46/1 | Front passenger seat PRE-SAFE® pulse squib | 5L |
| S54/5 | Left rear backrest inclination switch | 37J |
| S54/6 | Right rear backrest inclination switch | 37J |
| S6/2 | Center instrument panel button group | 18C |
| S6/2e2 | Front passenger airbag ON indicator lamp | 19C |
| S6/2e3 | Front passenger airbag OFF indicator lamp | 20C |
| S68/11 | Left rear seat belt buckle switch | 34E |
| S68/12 | Right rear seat belt buckle switch | 34E |
| S68/3 | Driver seat belt buckle switch | 6F |
| S68/4 | Front passenger seat belt buckle switch | 6G |
| U1032 | Valid for engine 278 and 157 | 16L |
| U1035 | Valid for gasoline engine 279 | 16L |
| U1073 | Valid for gasoline engine 276.9 | 16L |
| U1217 | Valid for model series 217 | 2G |
| U1222 | Valid for model series 222 | 3H |
| U1222 | Valid for model series 222 | 3J |
| U1222 | Valid for model series 222 | 29A |
| U1222 | Valid for model series 222 | 34H |
| U1222 | Valid for model series 222 | 6H |
| U1222 | Valid for model series 222 | 2F |
| U1222 | Valid for model series 222 | 19B |
| U1222 | Valid for model series 222 | 11B |
| U1222 | Valid for model series 222 | 37H |
| U360 | Valid without code (U18) Automatic child seat recognition (ACSR [AKSE]) and without code (U10) Front passenger seat with weight detection | 9K |
| U391 | Valid for gasoline engine 276.8 | 16L |
| U397 | Valid for gasoline engine 277 | 15L |
| U413 | Valid for model 217.3 | 2E |
| U414 | Valid for model 217.4 | 5K |
| U414 | Valid for model 217.4 | 2K |
| U74 | Valid for diesel engines | 12K |
| U75 | Valid for gasoline engines | 15K |
| U880 | Valid for diesel engine 642 | 12L |
| U948 | Valid for diesel engine 651 | 12L |
