Removing Rear Head Restraint - AR91.16-P-1770LCA
Model 217.4
| Remove/install | |||
| 1 | Remove seat backrest | AR91.12-P-1620LF | |

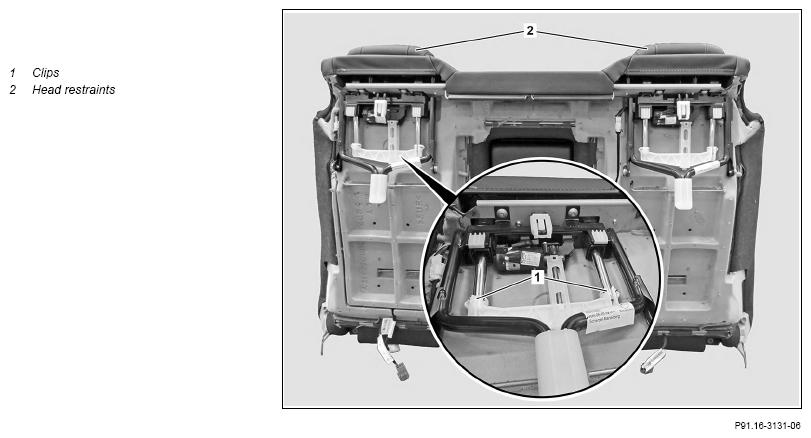

| 2 | Unclip clamps (1) | ||
| 3 | Remove head restraint (2) upwards | ||
| 4 | Install in the reverse order |
Model 217.4
| Remove/install | |||
| 1 | Remove seat backrest | AR91.12-P-1620LF | |
| 2 | Unclip clamps (1) | ||
| 3 | Remove head restraint (2) upwards | ||
| 4 | Install in the reverse order |
