Remove/Install Seat Cushion - AR91.10-P-3310LF
Model 217
Model 222
Shown on MODEL 222 with CODE U18 (Automatic child seat recognition, ACSR [AKSE])
Front passenger seat with CODE U10 (Automatic front passenger airbag shutoff)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove front paneling (2) and side paneling (3) at seat frame | AR91.10-P-1200LF | |

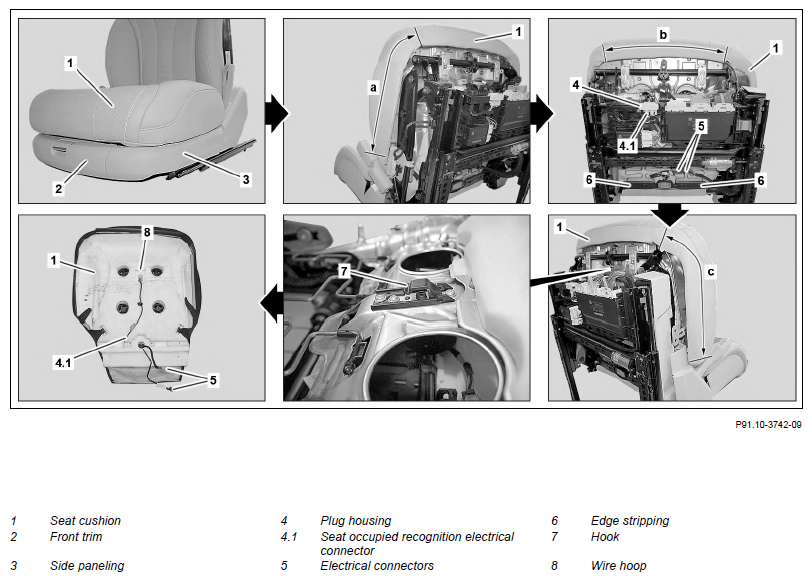

| 2 | Unhook edge stripping of seat cushion (1) at seat cushion frame (area a) | Fig 2 | |
| 3 | Disconnect and expose electrical connectors (5) | ||
| 4 | Release and remove seat occupied recognition electrical connector (4.1) in connector housing (4) using suitable means | Model 222 with code U18 (Automatic child seat recognition (ACSR)) During removal of seat cushion (1) on front passenger seat. Carefully release seat occupied recognition electrical connector (4.1). Otherwise there is a risk of breakage of the connector housing (4). |
|
| 5 | Expose electrical wiring harness of seat occupied recognition | Model 222 with code U18 (Automatic child seat recognition (ACSR)) During removal of seat cushion (1) on front passenger seat. |
|
| 6 | Disconnect electrical connector from weight sensing system (WSS) (11) | Model 217, 222 with code U10 (Automatic seat occupancy recognition and child seat recognition) During removal of seat cushion (1) on front passenger seat. |
|

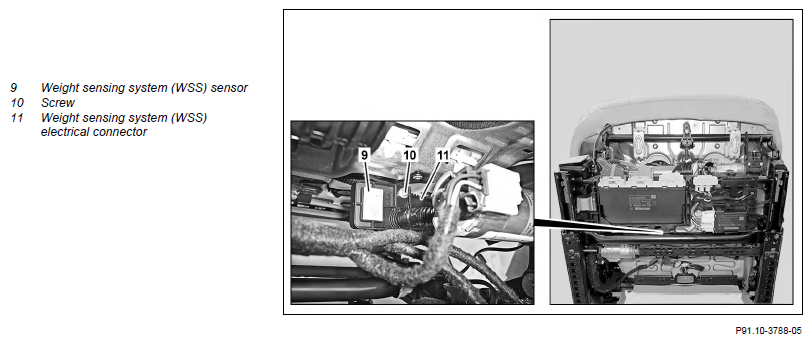

| 7 | Remove screw/bolt (10) and remove weight sensing system (WSS) sensor (9) from bracket | Model 217, 222 with code U10 (Automatic seat occupancy recognition and child seat recognition) During removal of seat cushion (1) on front passenger seat. |
|
| 8 | Unhook edge stripping (6) of seat cushion (1) at seat cushion frame | ||
| 9 | Unhook edge stripping of seat cushion (1) at seat cushion frame (area b) | Fig 2 | |
| 10 | Unhook edge stripping of seat cushion (1) at seat cushion frame (area c) | Fig 2 | |
| 11 | Slide seat cushion (1) toward rear and unhook wire hoop (8) from hook (7) | Carefully unhook seat cushion (1). Otherwise wire hoop (8) can be torn out of foam material of seat cushion (1). |
|
| 12 | Lift and remove seat cushion (1) | with code U10 (Automatic seat occupancy recognition and child seat recognition) Installation: The sensor mat of the weight sensing system (WSS) must be fixed in place on the seat cushion (1) of the front passenger seat using duct tape. |
|
| 13 | Install in the reverse order | ||
| Initial startup | |||
| 14 | Perform weight sensing system (WSS) commissioning | Model 217, 222 with code U10 (Automatic seat occupancy recognition and child seat recognition) During removal of seat cushion (1) on front passenger seat. |
|
