Remove/Install Seat Belt With Emergency Tensioning Retractor - AR91.40-P-0630LC
Model 217

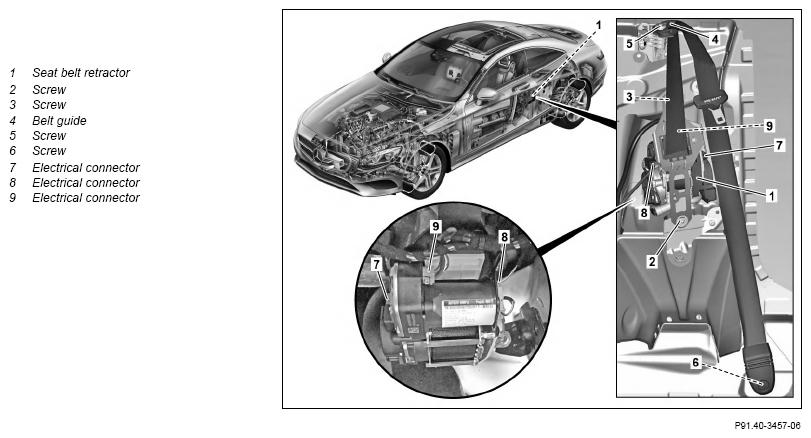

Shown on left side of vehicle
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Risk of injury . Injury may result when the tension in the spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Topical note | Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | |
| Topical note | Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Disconnect battery ground line | AR54.10-P-0003LF | |
| 2 | Remove rear passenger compartment side trim panel | AR68.30-P-4780LC | |
| 3 | Remove screw/bolt (6) from belt end fitting | *BA91.40-P-1003-01V | |
| 4 | Disconnect electrical connector (8) from belt retractor (1) | ||
| 5 | Remove screw/bolt (3) from belt retractor (1) | *BA91.40-P-1006-01V | |
| 6 | Remove screw/bolt (2) from belt retractor (1) | *BA91.40-P-1004-01V | |
| 7 | Disconnect electrical connectors (7, 9) from belt retractor (1) | ||
| 8 | Remove screw/bolt (5) from belt guide (4) and completely remove belt retractor (1) with belt guide (4) | When replacing belt retractor (1) ↓ Dispose of the belt retractor (1) properly |
*BA91.40-P-1001-01V |
| 9 | Install in the reverse order |
SEAT BELTS
| Number | Designation | Model 217 | |
|---|---|---|---|
| BA91.40-P-1001-01V | Bolt, belt guide to mounting bracket | Nm | 35 |
SEAT BELTS
| Number | Designation | Model 217 | |
|---|---|---|---|
| BA91.40-P-1003-01V | Bolt, front belt end fitting to longitudinal member | Nm | 35 |
SEAT BELTS
| Number | Designation | Model 217 | |
|---|---|---|---|
| BA91.40-P-1004-01V | Bolt, front seat belt retractor to bottom of seat belt retractor bracket | Nm | 35 |
SEAT BELTS
| Number | Designation | Model 217 | |
|---|---|---|---|
| BA91.40-P-1006-01V | Bolt, bracket for front top seat belt retractor to body | Nm | 35 |
