Remove/Install Seat Belt Buckle (Front Seat) - AR91.40-P-1515LC

MODEL 217

Courtesy of MERCEDES-BENZ USA

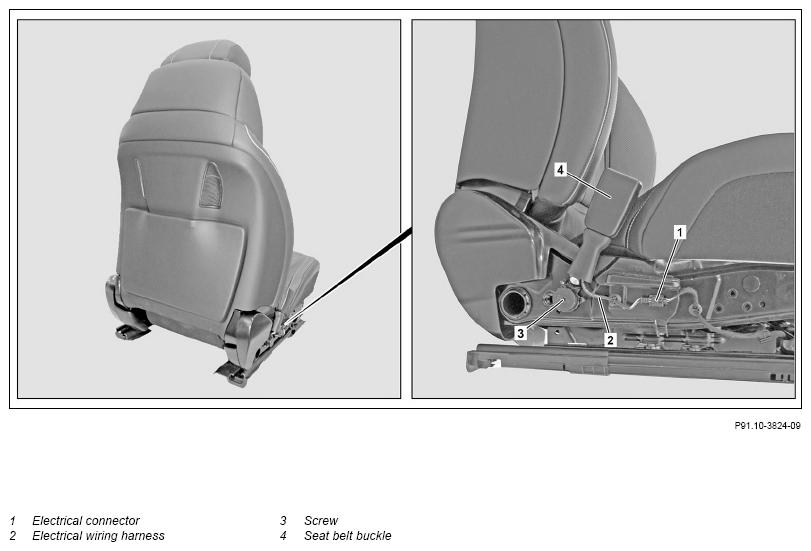

	Remove/install
1	Remove left or right front seat		AR91.10-P-1000LF
2	Disconnect electrical connector (1)
3	Expose electrical wiring harness (2)	Check cable ties for damage.
4	Remove screw/bolt (3) and remove belt buckle (4)	Bolt, front seat belt buckle to seat	*BA91.40-P-1007-01V
5	Install in the reverse order

SEAT BELTS

Number	Designation		MODEL 217
BA91.40-P-1007-01V	Bolt, front seat belt buckle to seat	Nm	35
