Remove/Install Backrest Release - AR91.10-P-1460LC
MODEL 217
MODIFICATION NOTES
| 31.3.15 | Release backrest and fold forward, added. | Operation step 5 |
| Remove/install | |||
| 1 | Remove head restraint | AR91.16-P-0040LF | |

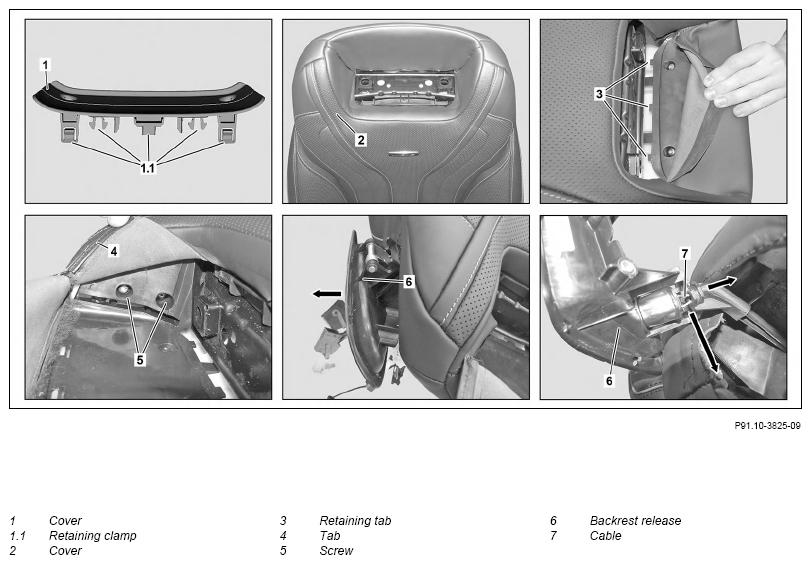

| 2 | Unclip paneling (1) upward | Using suitable tool, press on the clip lugs from the front and carefully lift off paneling (1) upwards. Otherwise the retaining clips (1.1) will be damaged. |
|
| 3 | Unhook cover (2) from retaining tabs (3) | ||
| 4 | Unhook lug (4) of cover (2) from the backrest release side towards the middle and fold back far enough so that the screws/bolts (5) are visible | Do not remove the lug (4) with tools. Otherwise, the cover (2) may be damaged. |
|
| 5 | Release backrest and fold forward | ||
| 6 | Remove screw/bolts (5) | ||
| 7 | Protect cover (2) from damage around the area of the backrest release (6) | ||
| 8 | Remove the backrest release (6) until the cable (7) is accessible | ||
| 9 | Remove cable (7) from the backrest release (6) using a suitable tool, and pull the cable (7) out of the backrest release (6) through the access opening | ||
| 10 | Install in the reverse order |
