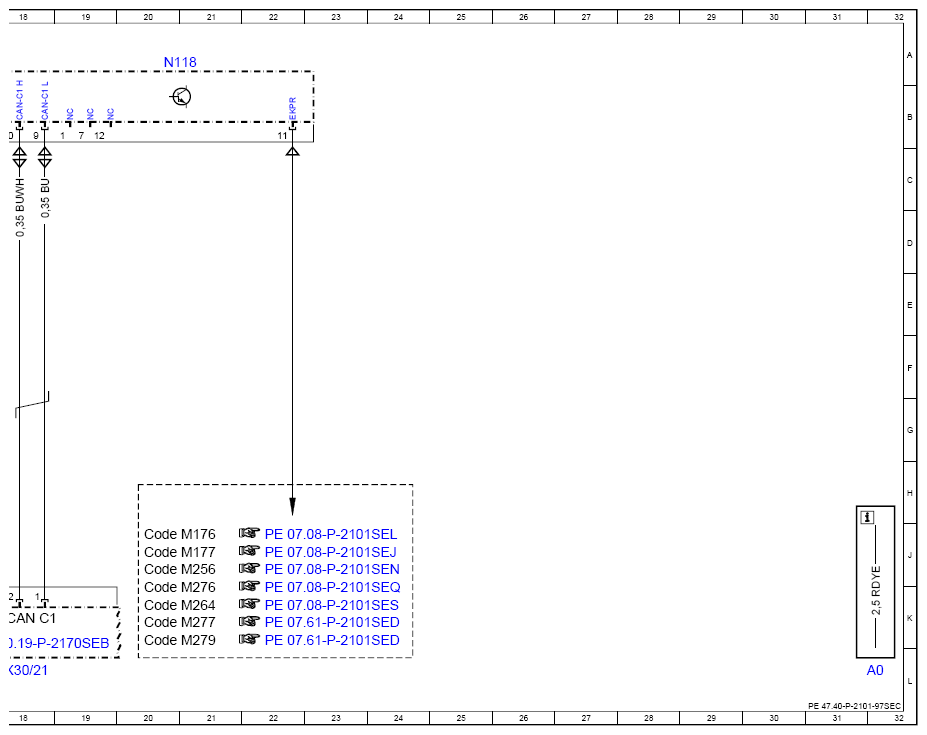

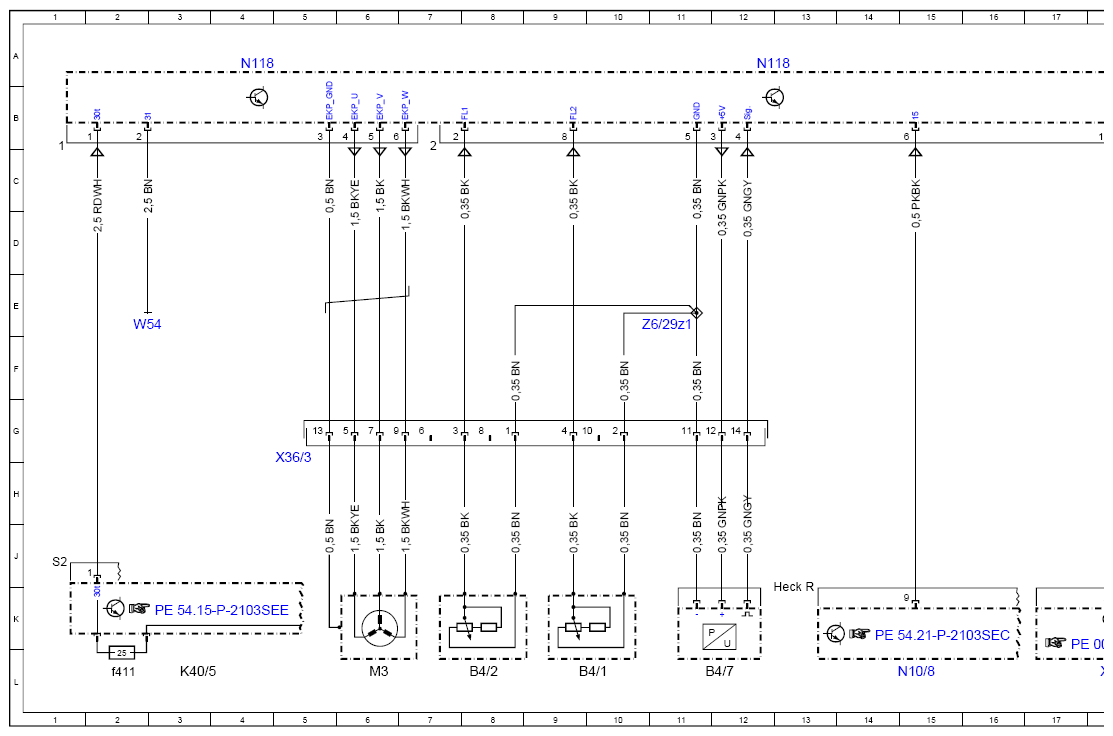

Wiring Diagram For Fuel Pump Control Unit - PE47.40-P-2101-97SEC
Engine 176, 177, 256, 264, 276, 277, 279
in model 222
as of model year 2018
Control unit N118
Engine 176, 177, 276, 279
in model 217
as of model year 2018
Control unit N118
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| B4/1 | Fuel tank fuel level indicator fill level sensor, left | 9L |
| B4/2 | Fuel tank fuel level indicator fill level sensor, right | 8L |
| B4/7 | Fuel pressure sensor | 12L |
| CAN C1 | Drive train CAN | 18K |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 20J |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 20J |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 20J |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 20K |
| Code M276 | SPARK-IGNITION ENGINE M276 | 20K |
| Code M277 | V12 SPARK-IGNITION ENGINE M277 | 20K |
| Code M279 | V12 SPARK-IGNITION ENGINE M279 - AMG | 20K |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5f411 | Fuse 411 | 2L |
| M3 | Fuel pump (FP) | 6L |
| N10/8 | Rear SAM control unit | 15L |
| N118 | Fuel pump control unit | 12A |
| N118 | Fuel pump control unit | 4A |
| N118 | Fuel pump control unit | 20A |
| W54 | Right rear wheel well ground point | 2E |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 18L |
| X36/3 | Fuel pump harness electrical connector | 5H |
| Z6/29z1 | Connector sleeve, ground connection for fuel pump | 11E |
