Remove/Install Tensioning Rails On Secondary Chain Drive - AR05.10-P-8129MNL
Engine 176 in model 217, 222
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury caused by scraping or rutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove camshaft positioner of right intake camshaft | AR05.20-P-7209MNL | |
| 2 | Remove camshaft positioner of left exhaust camshaft | AR05.20-P-7208MNL | |

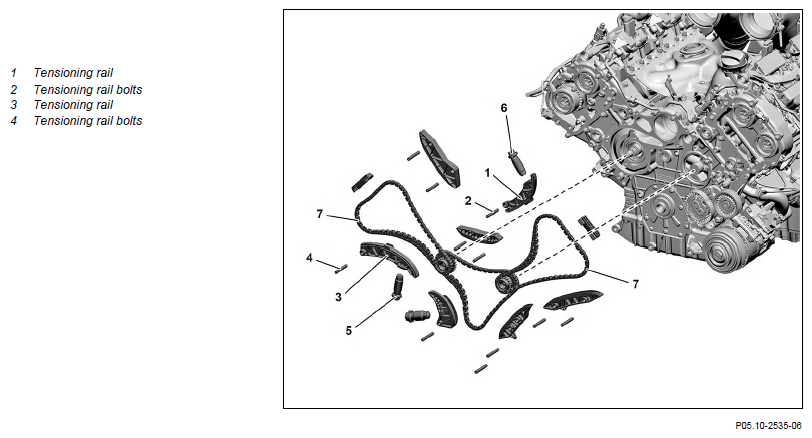

| 3 | Remove tensioning rail bolt (2) | Fig 2 | |
| Fig 3 | |||
| 4 | Remove tensioning rail bolt (4) | Fig 2 | |
| Fig 3 | |||
| 5 | Remove tensioning rails (1, 3) upwards | ||
| 6 | Check tensioning rails (13) for wear, galling and damage | In case of a complaint ↓ Replace the relevant tensioning rail (1, 3). |
|
| 7 | Install in the reverse order | ||
| 8 | Check oil level of engine and correct it | ||
| AP18.00-P-1812SKI | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform an engine test run and check engine for proper operation and leak tightness | ||
| 10 | Install lower engine compartment paneling | AR61.20-P-1105LF | |
| 11 | Install upper engine cover |
