Remove/Install Hydraulic Valve Clearance Compensating Elements - AR05.00-P-2011MNL
Engine 176 in model 217, 222
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove respective camshafts | Camshafts of right cylinder bank | AR05.20-P-6994MNL |
| Camshafts of left cylinder bank | AR05.20-P-6993MNL | ||

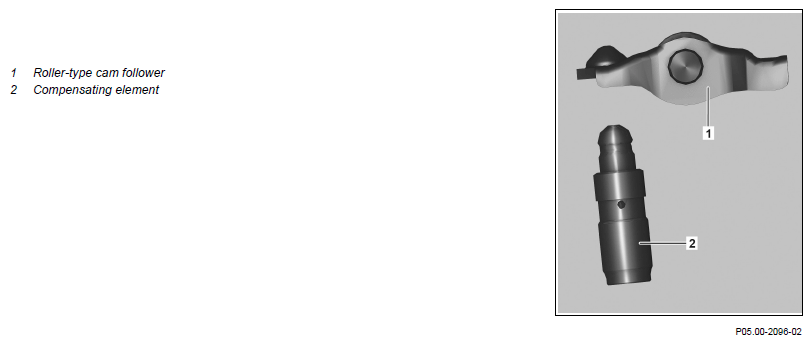

| 2 | Mark roller cam followers (1) and compensating elements (2) relative to respective cylinder | On reuse of roller cam followers (1) and compensating elements (2). |
|
| 3 | Remove roller cam followers (1) and compensating elements (2) from cylinder head | ||
| 4 | Detach compensating elements (2) from roller-type cam followers (1) | ||
| 5 | Install in the reverse order |
