Remove/Install Oil Pan - AR01.45-P-7500MNL

Engine 176 in model 217, 222 except code M005 (Vehicles with 4MATIC/all-wheel drive)

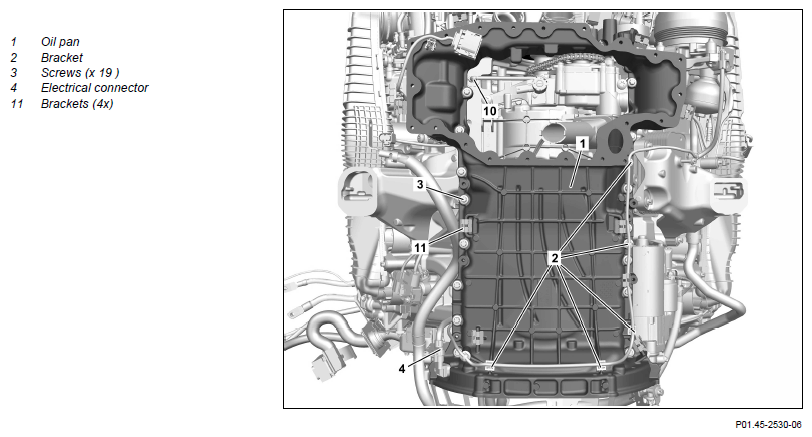

Fig 1: Engine Oil Pan Component Location - Engine 176 In Model 217 Except Code M005

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove engine from front axle carrier		AR01.10-P-2510MNL
2	Mount engine with boom crane to assembly stand
	000 588 27 31 00 Assembly stand for cars		WS01.00-P-0262B
	000 588 00 62 00 Load tilter	Commercially available devices/tools Boom crane	WS01.00-P-0102B
3	Remove oil pan bottom section		AR01.45-P-7555MNL
4	Release and disconnect electrical connector (4) of crankshaft hall sensor		AR15.12-P-2136MNL
5	Unclip brackets (2) from oil pan (1) and place electrical wiring harness to one side
6	Remove alternator		AR15.40-P-5032MNL
7	Remove A/C compressor		AR83.55-P-5310MNL
8	Remove guide pulley for poly-V belt		AR13.20-P-0004MNL
9	Remove rear radial shaft sealing ring		AR03.20-P-3003MNL
10	Remove front radial shaft sealing ring		AR03.20-P-3002MNL
11	Remove screws (3), move oil pan (1) away and remove from crankcase		AR01.45-P-7500-04MNE
	000 588 00 84 00 Heat gun		WS54.00-P-0049B

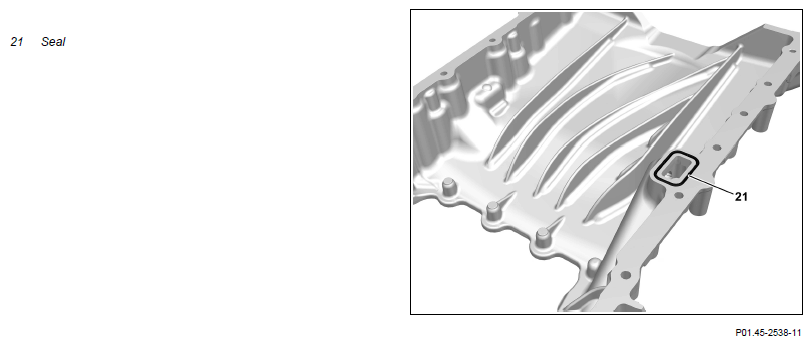

		Do not drive any tools between crankcase and oil pan (1) to unfasten them. Otherwise the sealing surfaces are damaged. If necessary, heat oil pan (1) in area around the sealing surfaces using a heat gun. :  Install new seal (21). Apply sealant to sealing surfaces of the crankcase.
		Bolt, oil pan top section to crankcase	*BA01.45-P-1005-01Y
		Sealant, Loctite 5970, 50 ml	*BR00.45-Z-1013-01A
		Application gun	Fig 2
12	Clean sealing surfaces on the oil pan (1) and crankcase		AR01.00-P-0050-01A
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
		Loctite 7200	*BR00.45-Z-1038-04A
13	Remove holders (11)	When installing a new oil pan (1).
14	Remove crankshaft Hall sensor	When installing a new oil pan (1).	AR15.12-P-2136MNL
15	Install in the reverse order

Fig 2: Identifying Application Gun (112 589 00 25 00)

Courtesy of MERCEDES-BENZ USA
