Remove/Install Coolant Pump - AR20.10-P-1271MNL

Engine 176 in model 217, 222

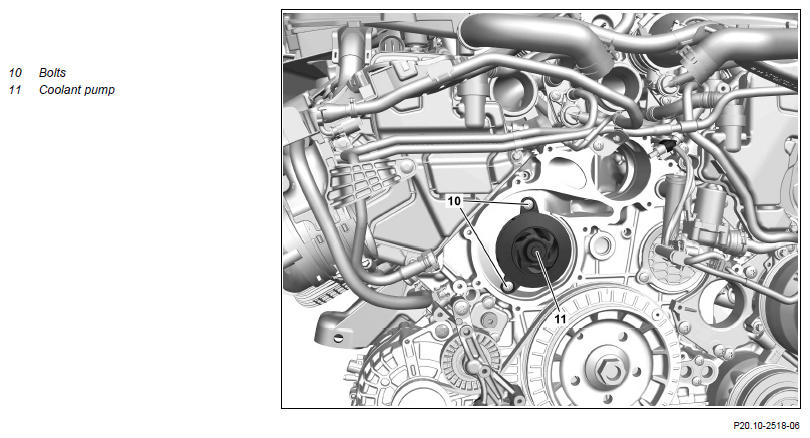

Fig 1: Coolant Pump Component Location - Engine 176 In Model 217

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA
	Remove/install
1	Remove coolant thermostat		AR20.10-P-2461MNL
2	Remove screws (10) and remove coolant pump (11)	:  During installation of coolant pump (11), ensure that toothing of coolant pump (11) engages with toothing of drive. Coolant pump (11) is otherwise not installed up to end stop. :  Replace seals of coolant pump (11).
		Bolt, coolant pump to crankcase	*BA20.10-P-1001-01ZA
3	Install in the reverse order

COOLANT PUMP, COOLANT THERMOSTAT

Number	Designation		Engine 176
BA20.10-P-1001-01ZA	Bolt, coolant pump to crankcase	Nm	8
