Drain/Pour In Coolant - AR20.00-P-1142MNL
Engine 176, 177 in model 217, 222
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove | |||
| 1 | Slowly open cap of engine cooling system coolant expansion reservoir and remove | ||
| 2 | Remove front and center lower engine compartment paneling | AR61.20-P-1105LF | |
| Drain off | |||

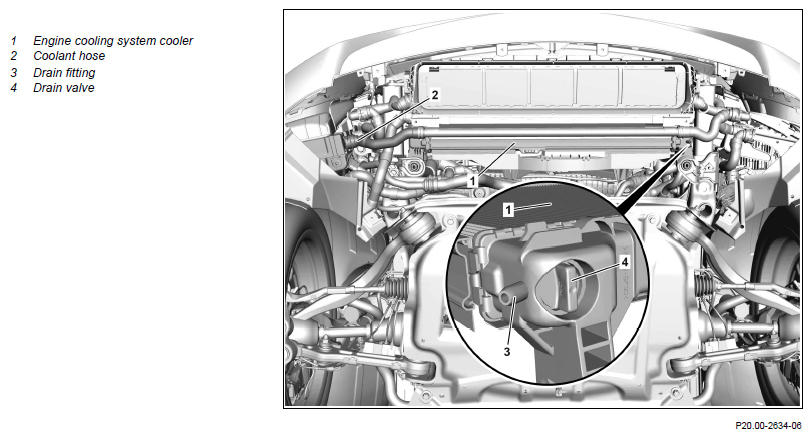

| 3 | Slide suitable drain hose onto drain fitting (3) | ||
| 4 | Open drain valve (4) on engine cooling system cooler (1) and drain off coolant into a suitable container | Otherwise damage will occur on drain valve (4) and on engine cooling system cooler (1). |
|
| 5 | Close drain valve (4) | ||
| 6 | Remove the coolant hose (2) on engine oil cooler in the right wheel arch and drain off coolant into a suitable container | AR20.20-P-7441-01RQ | |
| 7 | Reattach the coolant hose (2) to the engine oil cooler | AR20.20-P-7441-01RQ | |
| Pour in | |||
| 8 | Pour in clean coolant and bleed the engine cooling system | AR20.00-P-1142-04A | |
| *BF20.00-P-1001-02LA | |||
| *BF20.00-P-1001-06A | |||
| Fig 2 | |||
| Fig 4 | |||
| Fig 1 | |||
| Fig 3 | |||
| Check | |||
| 9 | Check engine cooling system for leaktightness | AR20.00-P-1010LF | |
| Install | |||
| 10 | Install bottom front engine compartment lining | AR61.20-P-1105LF | |
| 11 | Attach cap to engine cooling system coolant expansion reservoir |
COOLING SYSTEM
| Number | Designation | Engine 177 in model 217 | Engine 177 in model 222 | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-02LA | Cooling system | Workshop replacement amount | Main circuit | Liter | ≈ 13, 6 | ≈ 13, 5 |
| NT1-circuit | Liter | ≈ 6, 2 | ≈ 6, 2 | |||
| NT2-circuit | Liter | - | - | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | 50/50 | ||
| -38°C and below | % | 55/45 | 55/45 | |||
| Specifications for Operating Fluids, sheet | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0325-06A | BB00.40-P-0325-06A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0326-06A | BB00.40-P-0326-06A | ||||
COOLING SYSTEM
| Number | Designation | Engine 176 in model 217 | Engine 176 in model 222 | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-06A | Cooling system | Workshop replacement amount | Main circuit | Liter | ≈ 14 | ≈ 14 |
| Low-temperature circuit | Liter | ≈ 4 | ≈ 4 | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | 50/50 | ||
| -38°C and below | % | 55/45 | 55/45 | |||
| Specifications for Operating Fluids, sheet | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0325-06A | BB00.40-P-0325-06A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0326-06A | BB00.40-P-0326-06A | ||||
