Overview Of Energy Management System Components - GF54.10-P-9990LF
Model 217, 222

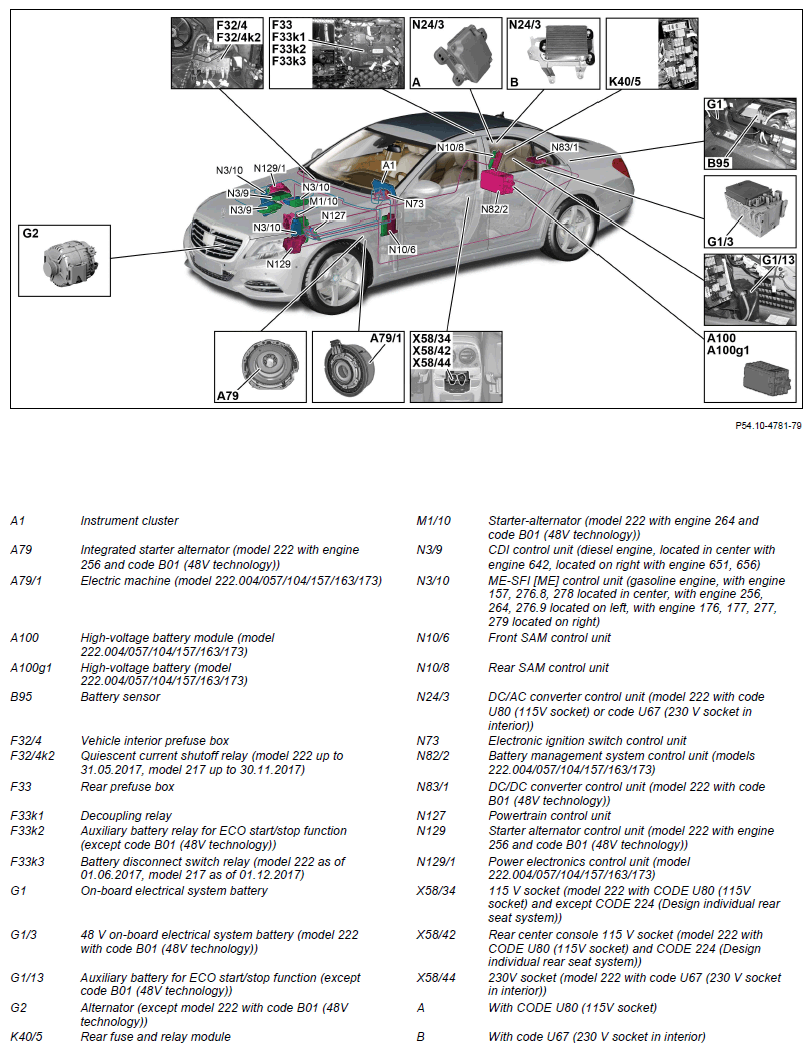

Shown on model 222.0 up to 31.05.2017
Model 222
with code B01 (48V technology)

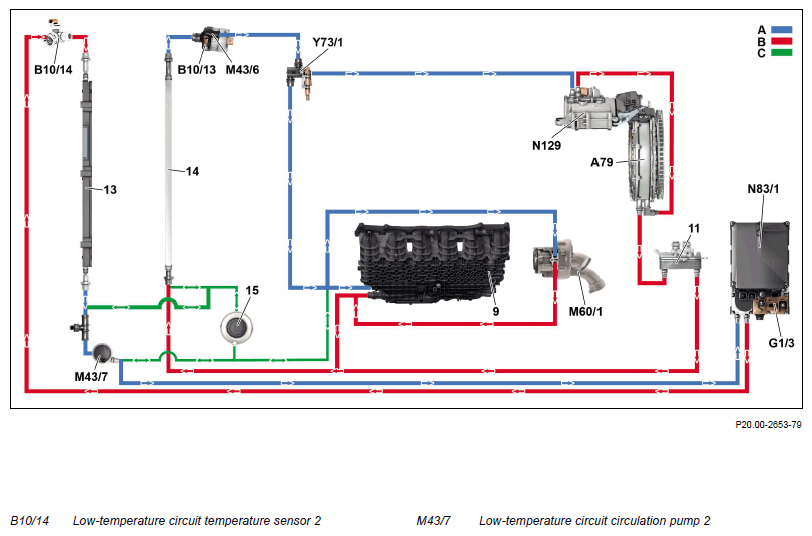

The low-temperature circuit 2 temperature sensor (B10/14) and low-temperature circuit circulation pump 2 (M43/7) are installed in addition.
View of low-temperature circuit, shown on model 222 with engine 256
| Component description for instrument cluster | Model 217, 222 as of model year 2018 A1 |
GF54.30-P-6000LFM | |
| Model 217, 222 up to model year 2018 A1 |
GF54.30-P-6000LF | ||
| Component description for starter-alternator | Model 222 with engine 264 with code B01 (48V technology) M1/10 |
GF15.40-P-2103LF | |
| Component description for CDI control unit | Model 222 with engine 642.8 N3/9 |
GF07.16-P-6000OGS | |
| Model 222 with engine 651.9 N3/9 |
GF07.16-P-6000OLA | ||
| Model 222 with engine 656.9 N3/9 |
GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 217, 222 with engine 157.9, 278.9 N3/10 |
GF07.61-P-6000MML | |
| Model 222 with engine 276.8 N3/10 |
GF07.61-P-6000MMT | ||
| Model 222 with engine 276.9 N3/10 |
GF07.61-P-6000MMK | ||
| Model 217 with engine 279 Model 222 with engine 277, 279 N3/10 |
GF07.61-P-6000MUB | ||
| Model 217 with engine 176.9, 177.9 Model 222 with engine 176.9, 177.9 N3/10 |
GF07.61-P-6000MNL | ||
| Model 222 with engine 256.9 N3/10 |
GF07.61-P-6000MRT | ||
| Model 222 with engine 264.9 N3/10 |
GF07.61-P-6000MRK | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030LF | |
| DC/AC converter control unit, component description | Model 222 with code U67 (230 V socket in interior compartment) Model 222 with code U80 (115 V socket) N24/3 |
GF54.21-P-4127LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for battery management system control unit | Model 222.004/104 with engine 651.9 Model 222.057/157 with engine 276 Model 222.163 with engine 276 Model 222.173 with engine 276 N82/2 |
GF54.10-P-3012LFH | |
| Component description for DC/DC converter control unit | Model 222 (except 222.163/173) with code B01 (48V technology) N83/1 |
GF54.10-P-3006LF | |
| Drivetrain control unit, component description | Model 217 with engine 176.9, 177.9 Model 217, 222 (except 222.163/173) with engine 157.9, 276.8, 277, 278.9, 279 Model 222 with engine 176.9, 177.9, 256.9 Model 222 with engine 264 N127 |
GF54.21-P-2141LF | |
| Model 222 with engine 276.9 Model 222.163 with engine 276.8 N127 |
GF54.21-P-2141MMK | ||
| Model 222 with engine 642.8 N127 |
GF54.21-P-2141OGS | ||
| Model 222 with engine 656.9 N127 |
GF54.21-P-2141OIA | ||
| Model 222 with engine 651.9 N127 |
GF54.21-P-2141OLA | ||
| Starter-alternator control unit component description | Model 222 with engine 256 with code B01 (48V technology) N129 |
GF54.21-P-4191LF | |
| Component description for power electronics control unit | Model 222.004/104 with engine 651.9 Model 222.057/157 with engine 276 Model 222.163 with engine 276 Model 222.173 with engine 276 N129/1 |
GF08.20-P-1001LFH | |
| Table of contents for function description of energy management | GF54.10-P-0990LF |
