Wiring Diagram For Horns - PE54.35-P-2002-97SEA
Model 217, 222 as of model year 2018 Left horn H2, right horn H2/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| CAN B | Interior CAN | 16K |
| CAN B | Interior CAN | 15K |
| Code F217 | MODEL SERIES 217 | 7E |
| Code F222 | MODEL SERIES 222 | 9E |
| Code L | LEFT-HAND DRIVE | 11F |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 4C |
| Code M279 | V12 SPARK-IGNITION ENGINE M279 - AMG | 4D |
| Code R | RIGHT-HAND DRIVE | 11F |
| Flex E | Chassis FlexRay | 21K |

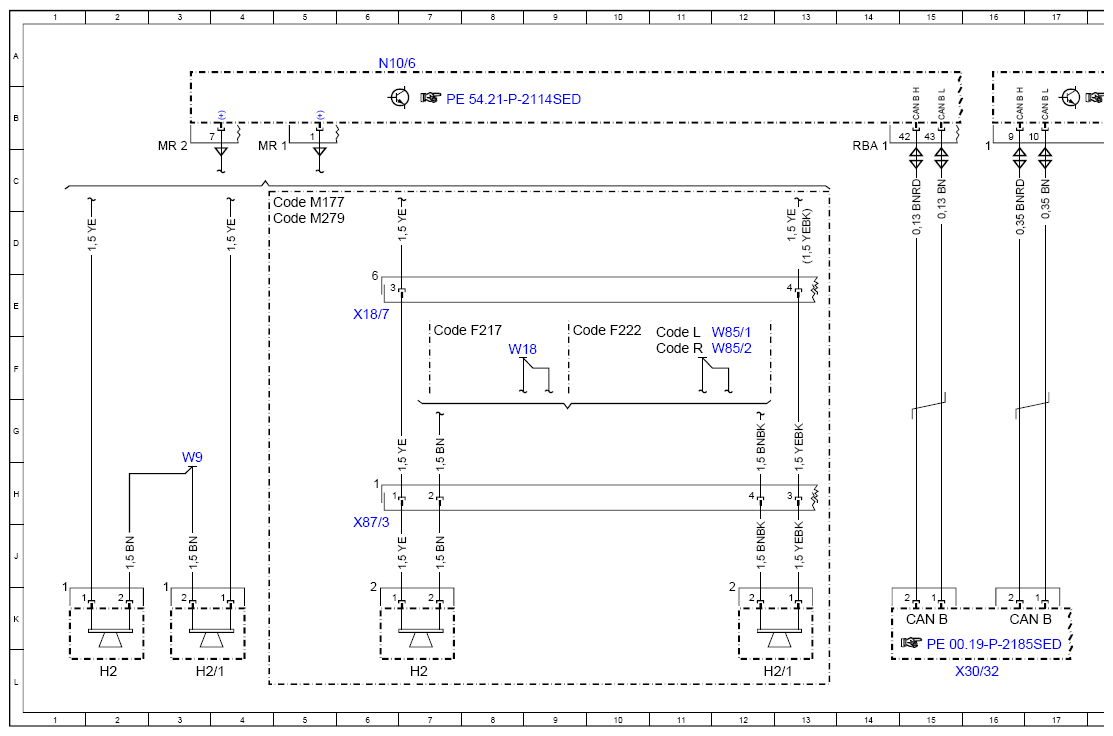

| H2 | Left fanfare horn | 2L |
| H2 | Left fanfare horn | 7L |
| H2/1 | Right fanfare horn | 3L |
| H2/1 | Right fanfare horn | 12L |
| N10/6 | Front SAM control unit | 6A |

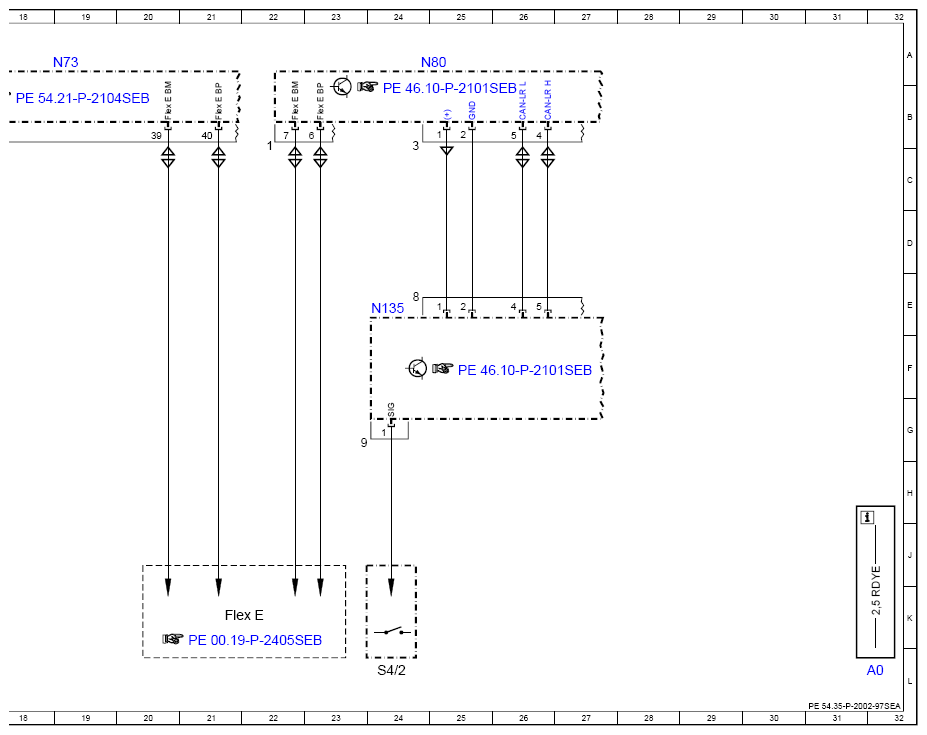

| N135 | Steering wheel electronics | 24E |
| N73 | Electronic ignition switch control unit | 19A |
| N80 | Steering column module control unit | 24A |
| W18 | Left front seat crossmember ground point | 8F |
| W85/1 | Driver footwell frame floor assembly ground point | 12F |
| W85/2 | Front passenger footwell frame floor assembly ground point | 12F |
| W9 | Left front ground point (at lamp unit) | 3H |
| X18/7 | Vehicle interior and engine compartment electrical connector | 6E |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 16L |
| X87/3 | Horn electrical connector | 6J |
