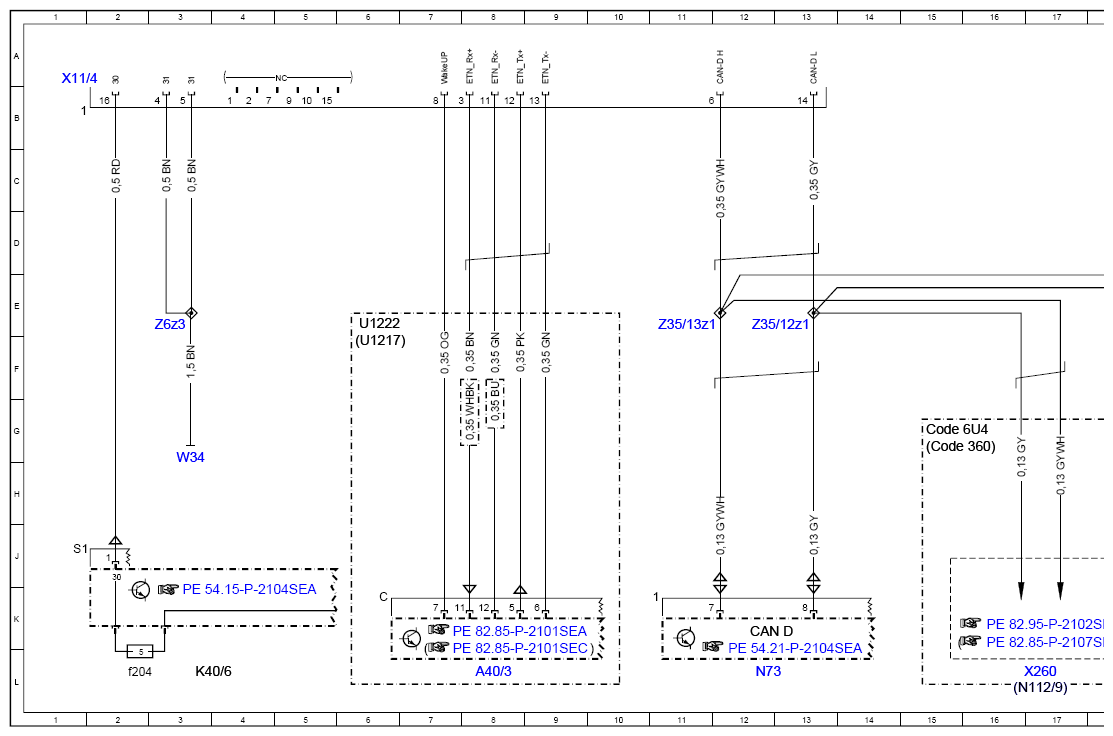

Wiring Diagram For Data Link Connector/Diagnostic Socket - PE54.22-P-2000-97SEA
Model 217 up to model year 2018
Diagnostic connector X11/4
Model 222 up to model year 2018
Diagnostic connector X11/4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A40/3 | COMAND control unit | 8L |
| CAN D | Diagnostic CAN | 12K |
| Code 348 | Emergency call/assistance system | 19G |
| Code 350 | Ecall Europe emergency call system | 19H |
| Code 360 | HERMES UMTS | 15G |
| Code 6U4 | Mercedes-Benz E-Call Russia (GLONASS) emergency call system | 15G |
| Code B54 | Live Traffic Information | 19G |
| K40/6 | Left fuse and relay module | 3L |
| K40/6f204 | Fuse 204 | 2L |
| N112/2 | Telematics services communication module | 20L |
| N112/9 | HERMES control unit | 17L |
| N123/4 | Emergency call system control unit | 20L |
| N73 | Electronic ignition switch control unit | 12L |
| U1217 | Valid for model series 217 | 6F |
| U1222 | Valid for model series 222 | 6E |
| W34 | Left footwell ground point | 3G |
| X11/4 | Diagnostic connector | 1A |
| X260 | E-Call Russia (GLONASS) control unit electrical connector | 17L |
| Z35/12z1 | Diagnostic CAN (CAN D) low connector sleeve | 13E |
| Z35/13z1 | Diagnostic CAN (CAN D) high connector sleeve | 11E |
| Z6z3 | Circuit 31 connector sleeve | 3E |
