Replace Propeller Shaft Center Support Bearing - AR41.40-P-0002LF

MODEL 217

MODEL 222

Shown on model 222 with 2-piece propeller shaft

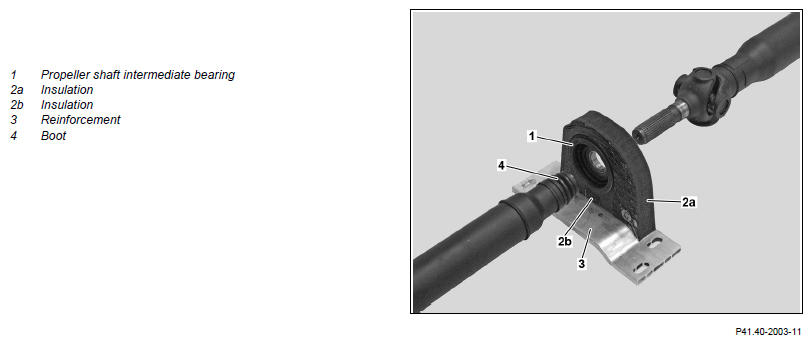

Fig 1: Propeller Shaft Center Support Bearing Component Location - Model 217 (Shown On Model 222)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove propeller shaft		AR41.10-P-0050LF
2	Separate propeller shaft at the appropriate slide connection
	Long-life grease (NLGI grade 2)		BB00.40-P-0266-02A
		Connect sections of propeller shaft Installation:  Assemble the propeller shaft in the correct position. Vehicles with 3-piece propeller shaft have 2 propeller shaft center support bearings (1).	AR41.10-P-0050-05LF
3	Detach propeller shaft center support bearing (1) from joint fork.		AR41.40-P-0002-02LF
		Removal and installation tool	Fig 5
		Drift	Fig 3
		Puller arms	Fig 6
		Puller, two-arm	Fig 4
4	Remove ball bearing of rear propeller shaft center support bearing (1)	MODEL 222.9 The ball bearing of the propeller shaft center support bearing (1) can only be replaced on the rear propeller shaft center support bearing (1).	AR41.40-P-0002-03LF
		Removal and installation tool	Fig 2
	Check
5	Check insulation (2a)	In event of damage and loose mounting. Replace insulation (2a): ↓ Clean contact surface of insulation (2a) on propeller shaft center support bearing (1). Glue insulation (2a) onto propeller shaft center support bearing (1). The contact surface must be clean, dry and free of grease and dust.
		Cleaner	*BR00.45-Z-1025-04A
6	Check insulation (2b)	Check for any damage and correct seating.
7	Check boot (4)	Check for any damage and correct seating.
8	Install in the reverse order

Fig 2: Identifying Removal And Installation Tool (116 589 09 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Drift (126 589 03 15 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Puller, Two-Arm (000 589 88 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Removal And Installation Tool (203 589 01 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Puller Arms (129 589 00 34 00)

Courtesy of MERCEDES-BENZ USA
