Seam Sealing Following Repair, Rear End Damage - Ar97.10-P-4000-02LC
Model 217
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
- Seal connecting flange of repaired area with body sealant seam sealant material.
Observe standard sealing.
Seal only primed body parts.
Insert plastic stop plug and rubber grommets with sealant.
- Seal spot welds and rivets in repaired area with seam sealant material.
Also keep drain openings and contact surfaces for axle attachments, windows and detachable parts free of sealant.
It is necessary to seal accessible spot weld flanges on both sides. If accessible from one side, only seal corresponding surface.
When sealing seams we differentiate between:
- smoothing/wiping (A)
- sealing/spreading (B)

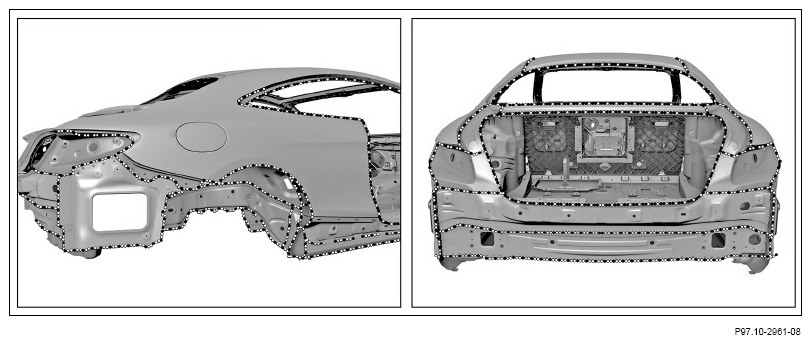

Rear area, rear fender and left rear wheel arch, shown on model 217.3

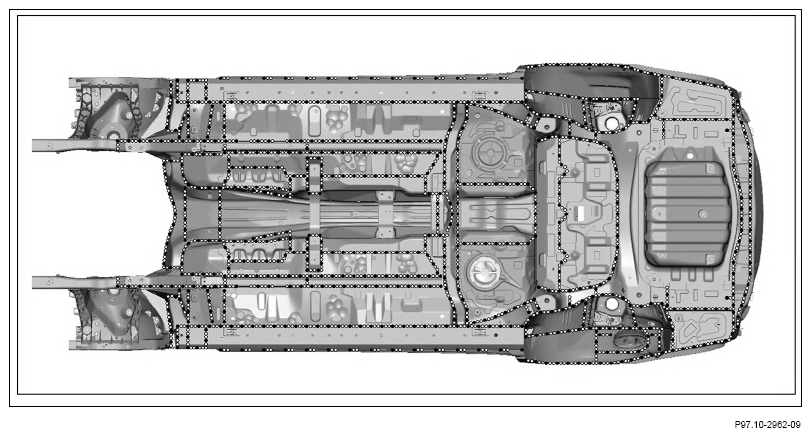

Area of underfloor and wheel well, shown on model 217.3
