Sealing Seam After Repairing Roof - Ar97.10-P-4000-05LC
MODEL 217.3
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
- Seal connecting flanges of repaired area with body sealant.
Observe standard sealing.
Seal only primed body parts.
Insert plastic stop plug and rubber grommets with sealant.
- Seal spot welds and rivets in repaired area with seam sealant material.
Also keep drain openings and contact surfaces for axle attachments, windows and detachable parts free of sealant.
It is necessary to seal accessible spot weld flanges on both sides. If accessible from one side, only seal corresponding surface.
When sealing seams we differentiate between:
- smoothing/wiping (A)
- sealing/spreading (B)

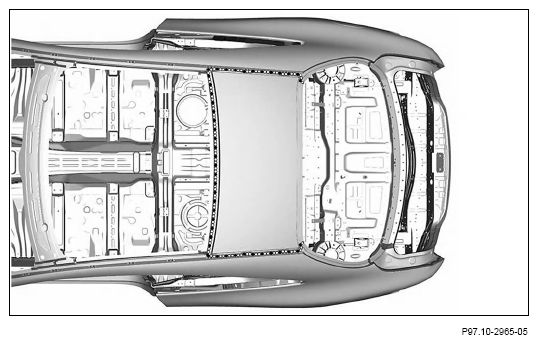

Area of roof paneling
