Separate Front Roof Frame - Ar65.20-P-1006-02LC
MODEL 217.3
The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side of the vehicle.
 Courtesy of MERCEDES-BENZ USA
|

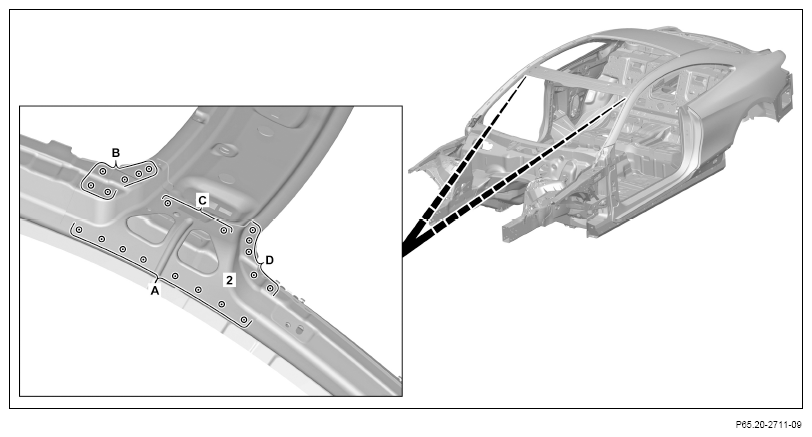

- Expose spot welds on mounting console (2) and cut out (areas A, B, C and D).
- Remove mounting console (2)
 Courtesy of MERCEDES-BENZ USA
|

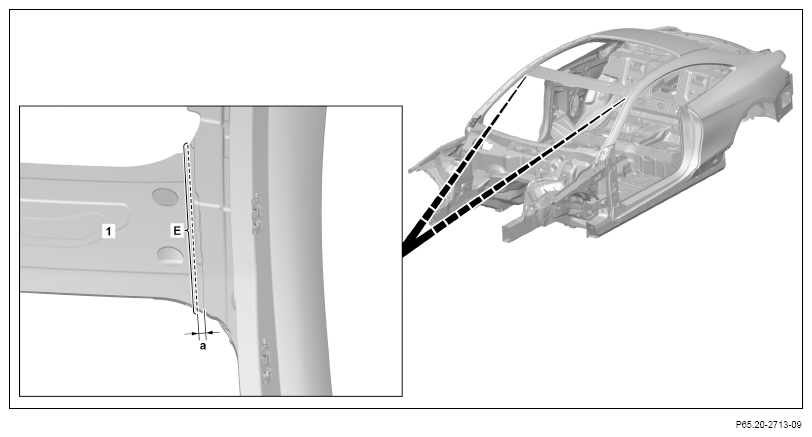

- Mark separating points on front roof frame (1) and cut (areas E).
Dimensions:
a = 10 mm
 Courtesy of MERCEDES-BENZ USA
|

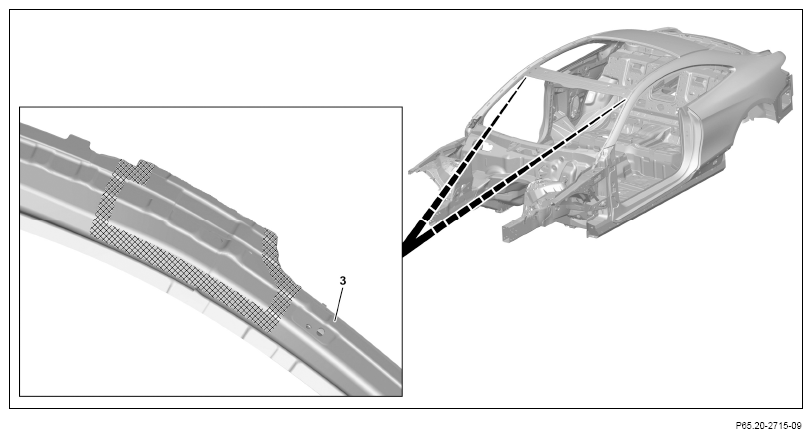

- Coat mating surfaces on side roof frame (3) with zinc dust paint.
