Preparing Rear Part Of Roof Paneling For Installation - Ar65.10-P-5760-02LC

MODEL 217.3

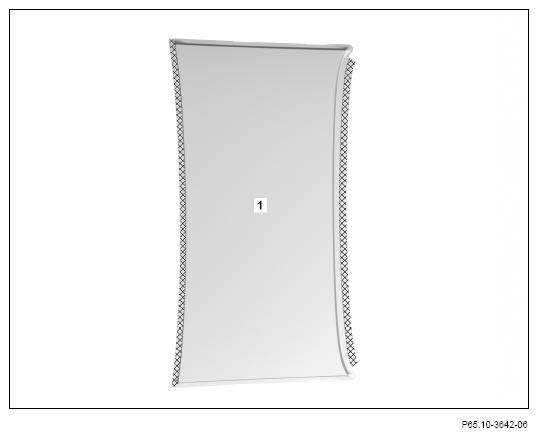

1. Grind mating surfaces on center roof paneling (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

2. Coat insides of spot weld flanges with zinc dust paint.

Courtesy of MERCEDES-BENZ USA
