Prepare Front Roof Frame For Installation - Ar65.20-P-1006-04LC

MODEL 217.3

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side of the vehicle.

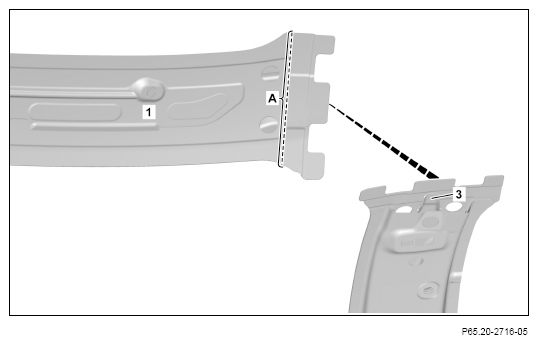

1. Mark separating points on front roof frame (1) and cut (areas A).

   Do not make the cuts too deep.

   Otherwise the lug on the front roof frame (3) located behind can be damaged.

   Take separation points from vehicle.

Courtesy of MERCEDES-BENZ USA
