Install Front Roof Frame - Ar65.20-P-1006-05LC

MODEL 217.3

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side of the vehicle.

Courtesy of MERCEDES-BENZ USA

1. Install front roof frame (1) and mounting console (2) and fix in place.
2. Drill rivet holes on mounting console (2) with Ø 6.7 mm bit for high-strength steels (areas B).

   Courtesy of MERCEDES-BENZ USA

3. Drill rivet holes on mounting console (2) with Ø 6.7 mm bit for high-strength steels (areas C and D).
4. Remove mounting console (2).
5. Deburr rivet holes on mounting console (2) on both sides.
6. Remove drilling shavings with wet/dry vacuum cleaner.

   Courtesy of MERCEDES-BENZ USA

7. Install front roof frame (1) and mounting console (2) and fix in place.

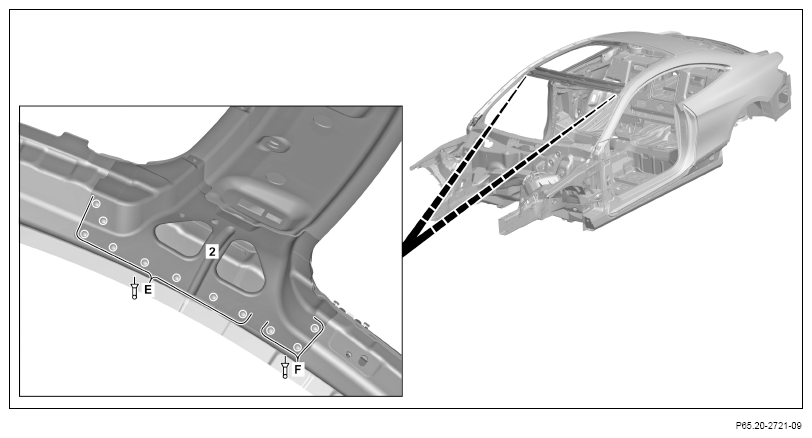

8. Rivet mounting console (2) with Ø 6.5 X 12 blind rivets (areas F).
9. Rivet mounting console (2) with Ø 6.5 X 12.5 blind rivets (areas E).

   Courtesy of MERCEDES-BENZ USA

10. Rivet mounting console (2) with Ø 6.4 X 14.0 blind rivets with countersunk head (areas G and H).
11. Rivet mounting console (2) with Ø 6.4 X 15.5 blind rivets with countersunk head (areas I and J).

    Courtesy of MERCEDES-BENZ USA

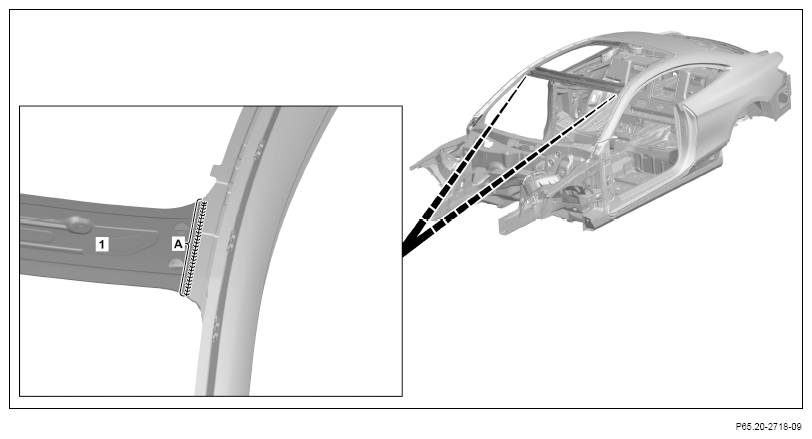

12. Front roof frame (1) (areas A).

    Inert gas weld in intervals and allow welding area to cool down in between. Reduces heat distortion

13. Grind inert gas welds down flat (areas A)
