Replace Complete Front End Assembly Together With Reinforcement - Ar62.30-P-1570LF

Model 217, 222

Shown on model 222

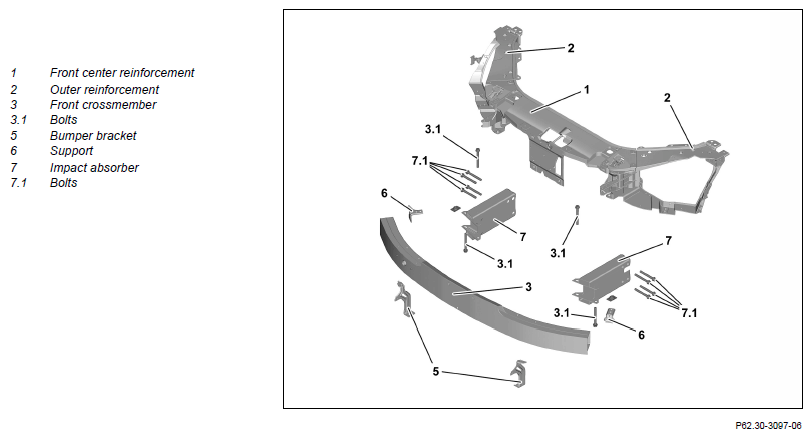

Fig 1: Upper Radiator Support, Front Bumper Reinforcement And Adjacent Component Locations (Model 217)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on model 222

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 222 on right side of vehicle

Shown on model 222

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 222 on right side of vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	General information on body repair		AH60.00-P-0001-01KOA
Notice	General information on crack diagnosis of aluminum parts		AH60.00-P-0014-01N
	Remove/install
1	Remove all detachable parts in repair area	: Install detachable parts in repair area only after applying wax.

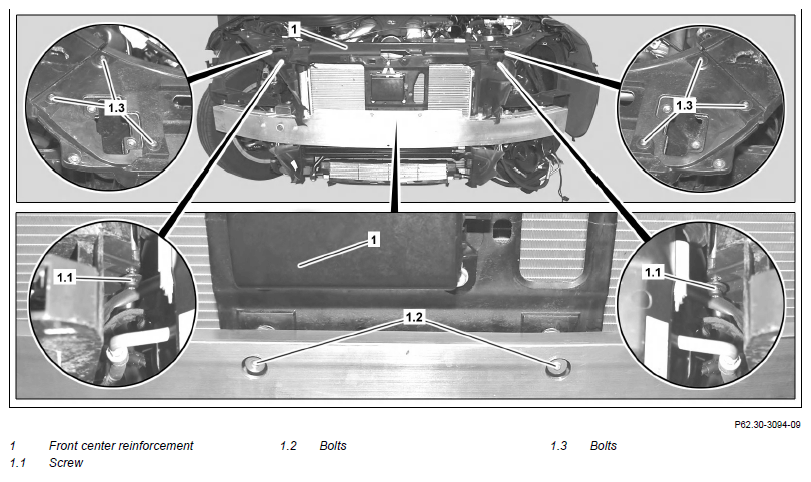

2	Unscrew bolts (1.1) on front center reinforcement (1)
3	Unscrew bolts (1.2) from front center reinforcement (1)	Model 217 Mark adjustment depth of bolts (1.2) before removal and when installing adjust bolts (1.2) to the marked depth.
4	Unscrew bolts (1.3) and remove front center reinforcement (1)

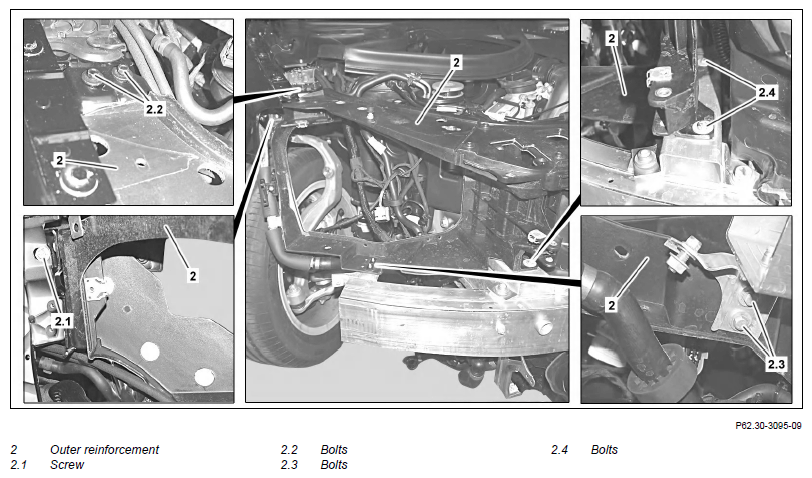

5	Unscrew bolts (2.1, 2.2, 2.3, 2.4) on left or right outer reinforcements (2) and remove left or right outer reinforcements (2)

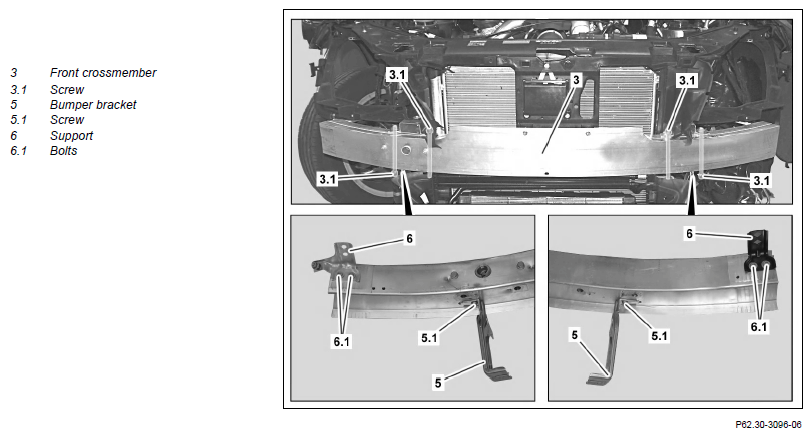

6	Unscrew bolts (3.1) and remove front crossmember (3)	: Align sleeves in front crossmember (3) before inserting bolts (3.1). Bolt, impact absorber to cross member	*BA62.30-P-1001-01G
7	Rework front crossmember (3)	Model 222 with code Z22 (Panic alarm system) If front crossmember (3) is replaced.	AR62.30-P-1570-03LF

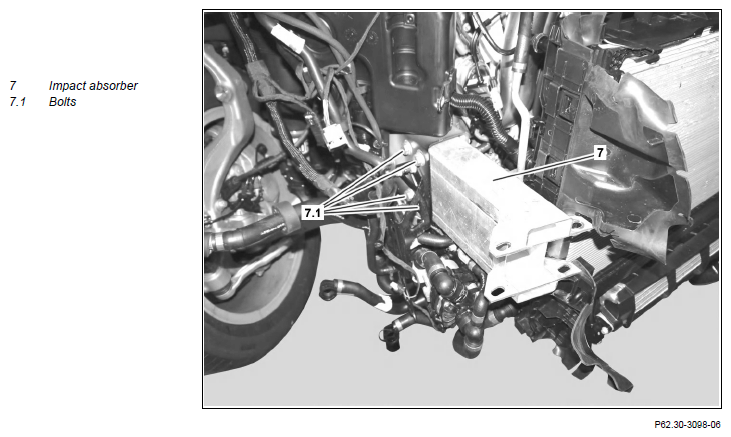

8	Unscrew bolts (7.1) on left and right impact absorber (7) and remove left and right impact absorber (7)	: Position bolts (7.1) and push impact absorbers (7) with front crossmember (3) straight toward rear until impact absorbers (7) are flush with upper and lower bolts (7.1). Bolt, impact absorber to longitudinal member	*BA62.30-P-1002-01G
9	Unscrew bolts (5.1) and remove bumper brackets (5)
10	Unscrew bolts (6.1) and remove supports (6)
11	Install in the reverse order
12	Apply wax to connections on body
Notice	Notes on cavity preservation		AH97.20-P-0001-01B
	000 588 01 72 00 Sealing and corrosion protection gun		WS97.00-Z-0002KOB
		Cavity preservation (free of solvents), 1 liter	*BR00.45-Z-1003-05A
