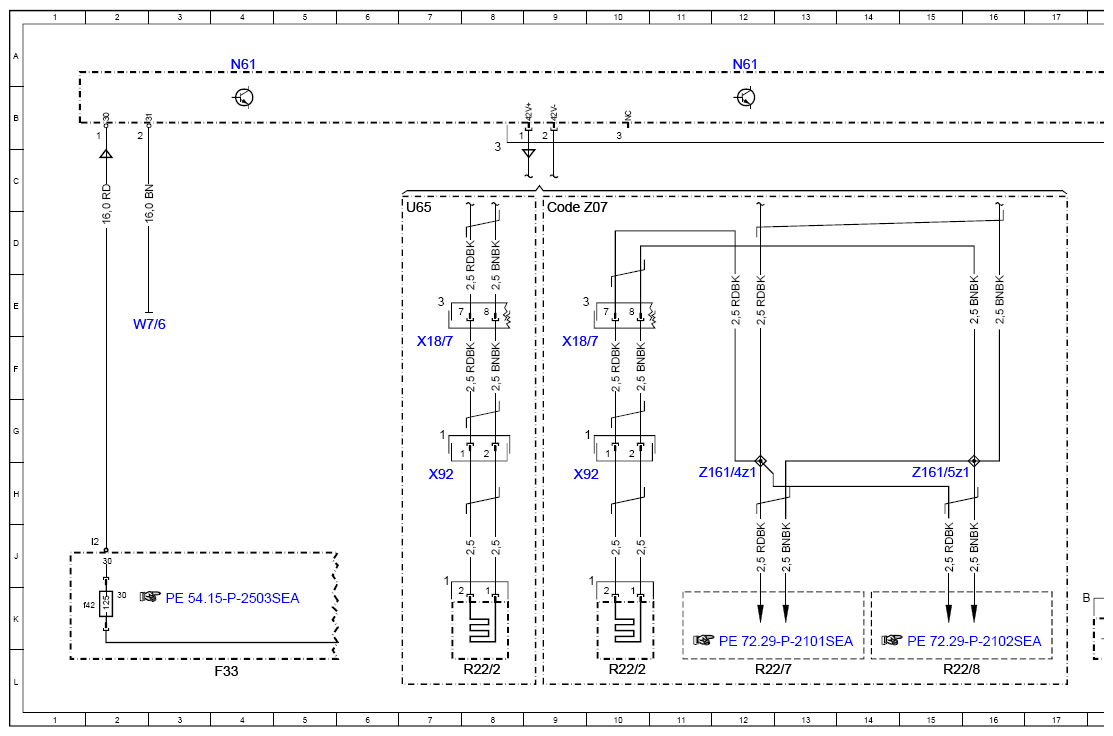

Wiring Diagram Of Heated Windshield Control Unit - PE67.10-P-2101-97SEA
Model 217
up to model year 2018
with code 597 (Heated windscreen)
Control unit N61
Model 222
up to model year 2018
with code 597 (Heated windscreen)
Control unit N61
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| Code Z07 | Top protection | 9D |
| F33 | Rear prefuse box | 4L |
| F33f42 | Fuse 42 | 1K |
| N22/1 | Climate control control unit | 19L |
| N61 | Windshield heater control unit | 4A |
| N61 | Windshield heater control unit | 12A |
| N61 | Windshield heater control unit | 19A |
| R22/2 | Heated windshield | 8L |
| R22/2 | Heated windshield | 10L |
| R22/7 | Left front heated side window | 12L |
| R22/8 | Right front heated side window | 15L |
| U65 | Valid without code (Z07) Highest protection | 7D |
| W7/6 | Rear additional battery ground point | 2E |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 19F |
| X18/7 | Vehicle interior and engine compartment electrical connector | 7F |
| X18/7 | Vehicle interior and engine compartment electrical connector | 9F |
| X92 | Windshield heater electrical connector | 7H |
| X92 | Windshield heater electrical connector | 10H |
| Z161/4z1 | Windshield heater connector sleeve (+) | 12H |
| Z161/5z1 | Windshield heater connector sleeve (-) | 15H |
| Z68/24z1 | Connector sleeve, data line for climate control LIN 2 | 19H |
