Glue In Window Seal For Side Window On A-Pillar - AR72.10-P-1907-01LCA

Model 205.4

Model 217.4

Model 238.4

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
BR00.45-Z-1085-01A	Butyl cord Terostat 81 Ø 6 mm	A 004 989 61 20

The following operation steps are shown on the left side of the vehicle on model 217.4.

Clean bonding surfaces.
Adhesive surfaces on body must be free of grease and dust.

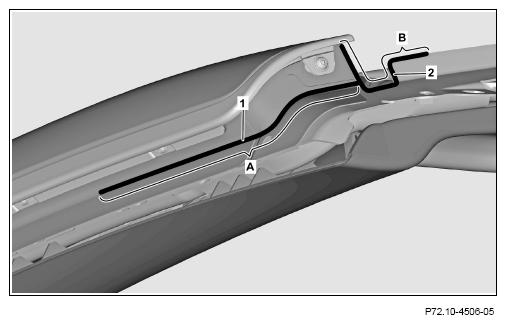

Install butyl cord (1, 2) on A-pillar.
Dimensions:

A = approx. 18 cm

B = approx. 13 cm

Courtesy of MERCEDES-BENZ USA
Clean bonding surfaces.
Adhesive surfaces on body must be free of grease and dust.

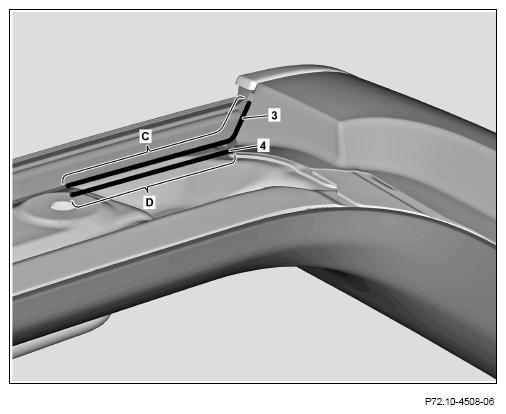

Install butyl cord (3, 4) on roof frame.
Dimensions:

C = approx. 8 cm

D = approx. 6.5 cm

Courtesy of MERCEDES-BENZ USA
Clean bonding surfaces.
The adhesive surfaces on the window seal (7) must be free of grease and dust.

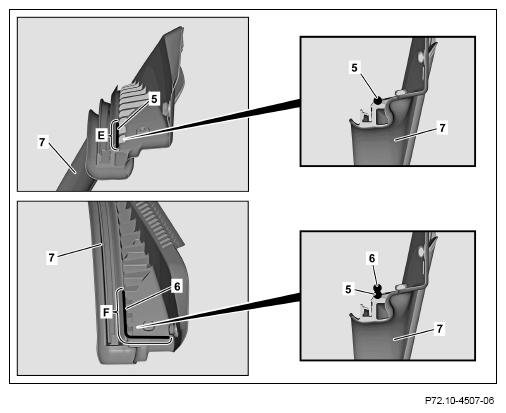

Install butyl cord (5) on window seal (7) in area of mirror triangle below sealing lip.
Dimensions:

E = approx. 2 cm
Install butyl cord (6) on sealing lip on butyl cord (5) already routed.
Dimensions:

F = approx. 10 cm
Install window seal (7) from left to right mirror triangle
Helper required.
