Wiring Diagram For Magic Sky Control Control Unit - PE77.35-P-2101-97SEB

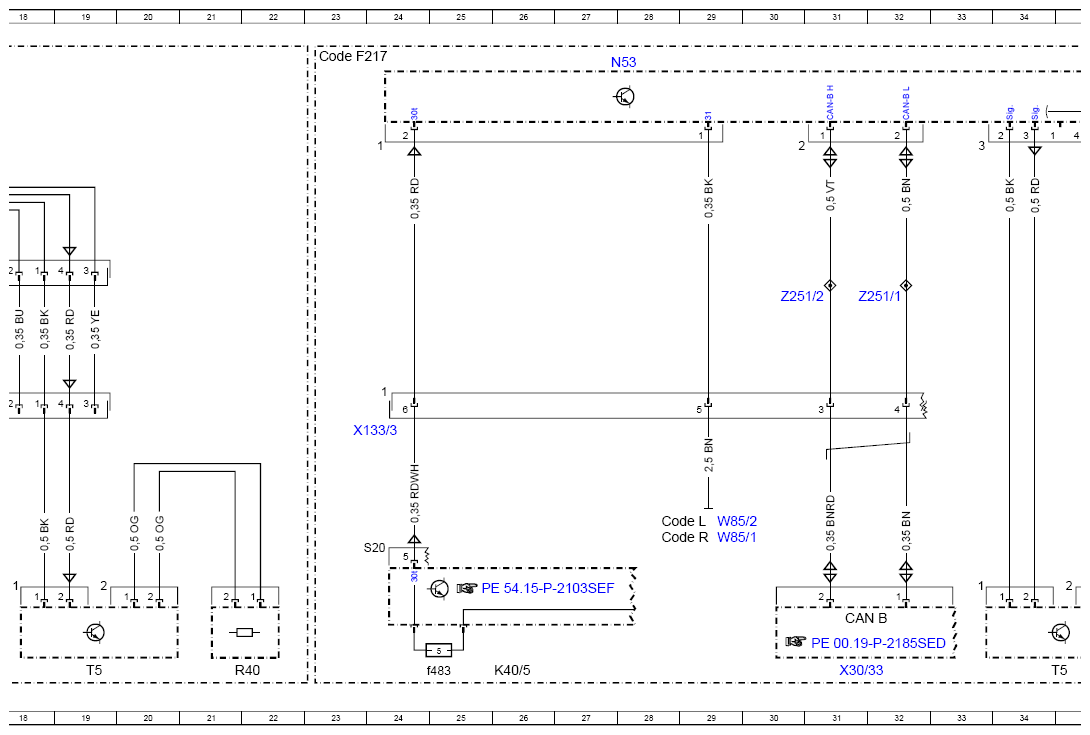

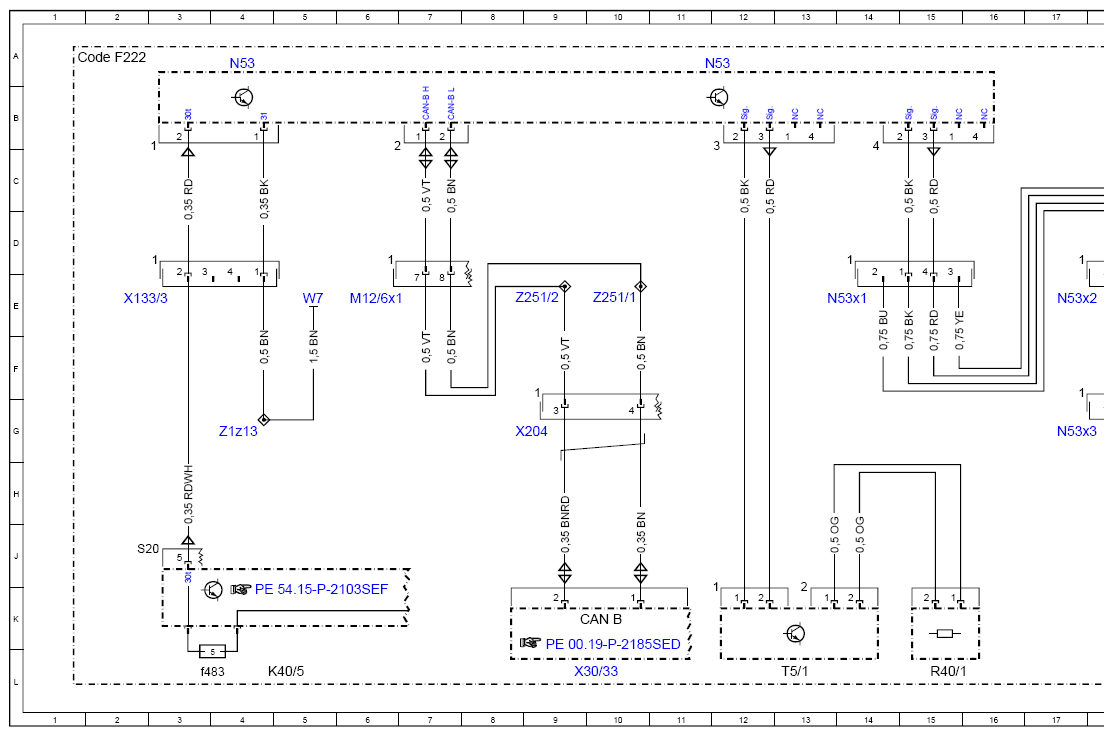

Model 217, 222 as of model year 2018 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Control unit N53
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| CAN B | Interior CAN | 10K |
| CAN B | Interior CAN | 31K |
| Code F217 | MODEL SERIES 217 | 23A |
| Code F222 | MODEL SERIES 222 | 1A |
| Code L | LEFT-HAND DRIVE | 28J |
| Code R | RIGHT-HAND DRIVE | 28J |
| K40/5 | Rear fuse and relay module | 5L |
| K40/5 | Rear fuse and relay module | 26L |
| K40/5f483 | Fuse 483 | 3L |
| K40/5f483 | Fuse 483 | 25L |
| M12/6x1 | Rear panoramic sliding sunroof roller sun blind drive unit electrical connector | 6E |
| N53 | MAGIC SKY CONTROL control unit | 4A |
| N53 | MAGIC SKY CONTROL control unit | 12A |
| N53 | MAGIC SKY CONTROL control unit | 28A |
| N53 | MAGIC SKY CONTROL control unit | 35A |
| N53x1 | MAGIC SKY CONTROL high-voltage transformer electrical connector 1 | 14E |
| N53x2 | MAGIC SKY CONTROL high-voltage transformer electrical connector 2 | 17E |
| N53x3 | MAGIC SKY CONTROL high-voltage transformer electrical connector 3 | 17G |
| R40 | MAGIC SKY CONTROL roof | 22L |
| R40 | MAGIC SKY CONTROL roof | 37L |
| R40/1 | Rear roof MAGIC SKY CONTROL | 15L |
| T5 | MAGIC SKY CONTROL high-voltage transformer | 19L |
| T5 | MAGIC SKY CONTROL high-voltage transformer | 35L |
| T5/1 | Rear roof MAGIC SKY CONTROL high-voltage transformer | 13L |
| W7 | Right wheel house trunk ground point | 5E |
| W85/1 | Driver footwell frame floor assembly ground point | 29J |
| W85/2 | Front passenger footwell frame floor assembly ground point | 29J |
| X133/3 | MAGIC SKY CONTROL electrical connector | 2E |
| X133/3 | MAGIC SKY CONTROL electrical connector | 24G |
| X204 | Panoramic sliding roof electrical connector | 9G |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 9L |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 31L |
| Z1z13 | Circuit 31 connector sleeve | 4G |
| Z251/1 | MAGIC SKY CONTROL connector sleeve (CAN B low) | 10E |
| Z251/1 | MAGIC SKY CONTROL connector sleeve (CAN B low) | 32E |
| Z251/2 | MAGIC SKY CONTROL connector sleeve (CAN B high) | 9E |
| Z251/2 | MAGIC SKY CONTROL connector sleeve (CAN B high) | 30E |
