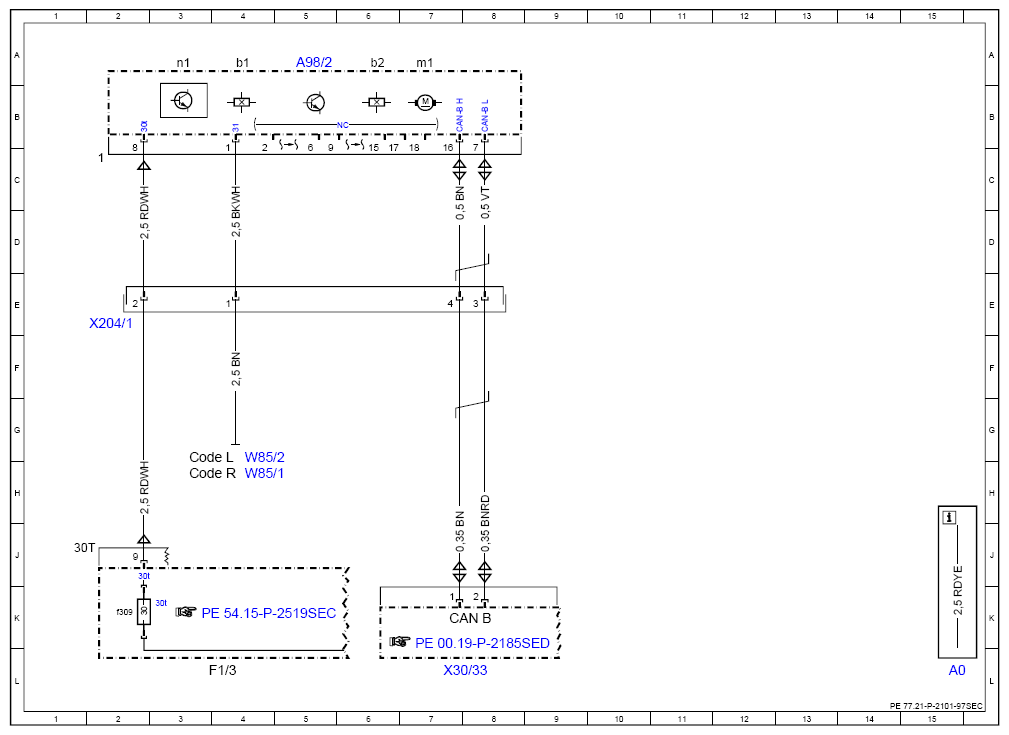

Panoramic Roof Roller Sun Blind Control Unit Wiring Diagram - PE77.21-P-2101-97SEC
Model 217 as of model year 2018 except code 398 (Panoramic roof with MAGIC SKY CONTROL) Control module A98/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A98/2 | Panoramic roof roller sun blind control module | 5A |
| A98/2b1 | Hall sensor 1, panoramic roof roller sun blind | 4A |
| A98/2b2 | Hall sensor 2, panoramic roof roller sun blind | 6A |
| A98/2m1 | Panoramic roof roller sun blind motor | 7A |
| A98/2n1 | Panoramic roof roller sun blind control unit | 3A |
| CAN B | Interior CAN | 7K |
| Code L | LEFT-HAND DRIVE | 3H |
| Code R | RIGHT-HAND DRIVE | 3H |
| F1/3 | Passenger-side A-pillar fuse box | 4L |
| F1/3f309 | Fuse 309 | 2K |
| W85/1 | Driver footwell frame floor assembly ground point | 4H |
| W85/2 | Front passenger footwell frame floor assembly ground point | 4H |
| X204/1 | Panoramic roof roller sun blind electrical connector | 2E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 7L |
