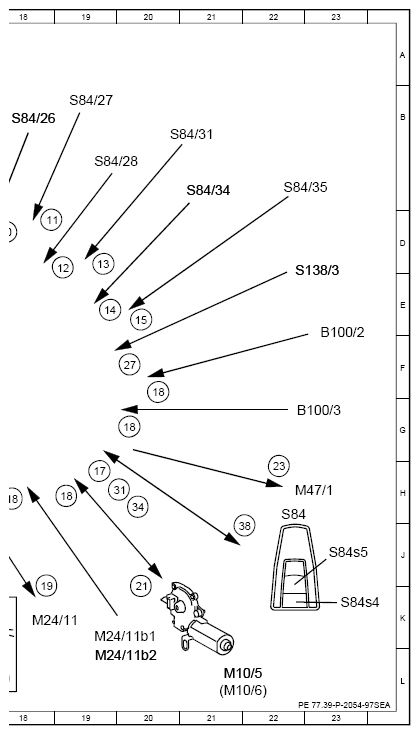

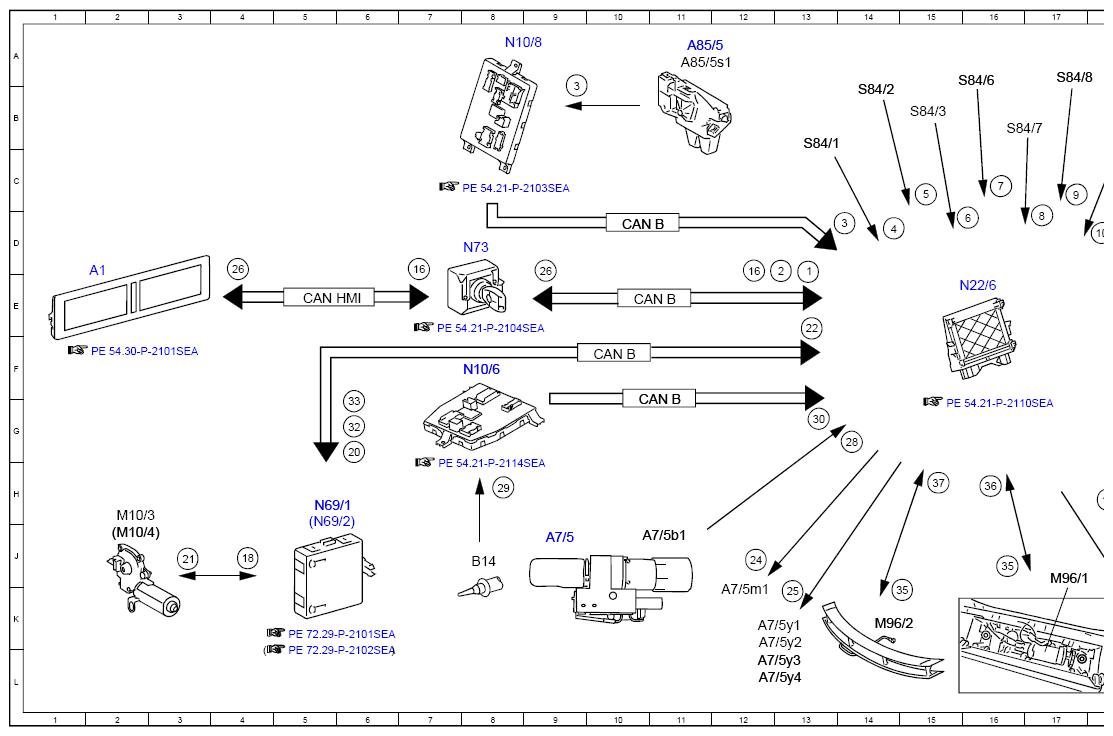

Electrical Function Schematic For Opening/Closing Soft Top With Switch - PE77.39-P-2054-97SEA
Model 217.4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 13D |
| 10 | Left upper soft top compartment lid limit switch, status | 18D |
| 11 | Left soft top compartment lid locked limit switch, status | 19D |
| 12 | Right soft top compartment lid locked limit switch, status | 18D |
| 13 | Soft top "Closed" limit switch, status | 19D |
| 14 | Soft top lock "Open" limit switch, status | 19E |
| 15 | Soft top lock "Locked" limit switch, status | 20E |
| 16 | Vehicle speed, signal | 12E |
| 16 | Vehicle speed, signal | 7D |
| 17 | Soft top control switch, status | 19H |
| 18 | Hall sensor, signal | 20F |
| 18 | Hall sensor, signal | 4J |
| 18 | Hall sensor, signal | 18H |
| 18 | Hall sensor, signal | 19H |
| 18 | Hall sensor, signal | 20G |
| 19 | Trunk partition motor, actuation | 18J |
| 2 | Circuit 50, status | 13E |
| 20 | Move to short stroke position, request | 6G |
| 21 | Power window motor, actuation | 3J |
| 21 | Power window motor, actuation | 20J |
| 22 | At short stroke position, signal | 13E |
| 23 | Front soft top lock motor, actuation | 22G |
| 24 | Soft top control hydraulic unit electric motor, actuation | 12J |
| 25 | Solenoid valve, actuation | 13J |
| 26 | Soft top instrument cluster messages, request | 9E |
| 26 | Soft top instrument cluster messages, request | 4D |
| 27 | Trunk partition switch, status | 19F |
| 28 | Soft top control hydraulic unit temperature sensor, signal | 28G |
| 29 | Outside temperature sensor, signal | 8H |
| 3 | Trunk lid lock main catch switch, status | 9B |
| 3 | Trunk lid lock main catch switch, status | 14D |
| 30 | Outside temperature, signal | 13G |
| 31 | Power window central operation switch, status | 19H |
| 32 | Convenience feature, status | 6G |
| 33 | Convenience feature direction, signal | 6G |
| 34 | Draft stop and wind deflector button, status | 20H |
| 35 | Actuator motors, actuation | 16J |
| 35 | Actuator motors, actuation | 16J |
| 36 | Draft stop actuator motor, status | 16H |
| 37 | Wind deflector actuator motor, status | 15H |
| 38 | Draft stop and wind deflector button status LEDs, actuation | 21H |
| 4 | Left soft top "Locked" limit switch, status | 14D |
| 5 | Right soft top "Locked" limit switch, status | 15C |
| 6 | Soft top "Open" limit switch, status | 16D |
| 7 | Left lower soft top bow "Locked" limit switch, status | 16C |
| 8 | Right lower soft top bow "Locked" limit switch, status | 17D |
| 9 | Upper soft top bow limit switch, status | 17C |
| A1 | Instrument cluster | 2E |
| A7/5 | Soft top control hydraulic unit | 9J |
| A7/5b1 | Temperature sensor | 11J |
| A7/5m1 | Convertible top control hydraulic unit electric motor | 12K |
| A7/5y1 | Solenoid valve 1 | 12K |
| A7/5y2 | Solenoid valve 2 | 12K |
| A7/5y3 | Solenoid valve 3 | 12L |
| A7/5y4 | Solenoid valve 4 | 12L |
| A85/5 | Trunk lid lock | 11A |
| A85/5s1 | Trunk lid lock main catch switch | 11A |
| B100/2 | Left trunk partition Hall sensor | 23F |
| B100/3 | Right trunk partition Hall sensor | 23G |
| B14 | Outside temperature sensor | 8J |
| CAN B | Interior CAN | 10F |
| CAN B | Interior CAN | 10E |
| CAN B | Interior CAN | 10D |
| CAN B | Interior CAN | 11G |
| CAN HMI | User interface CAN | 5E |
| M10/3 | Left front power window motor | 2H |
| M10/4 | Right front power window motor | 2J |
| M10/5 | Left rear power window motor | 21L |
| M10/6 | Right rear power window motor | 21L |
| M24/11 | Trunk partition motor | 18K |
| M24/11b1 | Trunk partition open/closed Hall sensor | 19K |
| M24/11b2 | Trunk partition drive power transmission Hall sensor | 19L |
| M47/1 | Front soft top lock motor | 22H |
| M96/1 | Draft stop actuator motor | 17J |
| M96/2 | Wind deflector actuator motor | 14K |
| N10/6 | Front SAM control unit | 8F |
| N10/8 | Rear SAM control unit | 8A |
| N22/6 | Rear control unit | 16E |
| N69/1 | Left front door control unit | 5H |
| N69/2 | Right front door control unit | 5J |
| N73 | Electronic ignition switch control unit | 8D |
| S138/3 | Trunk partition switch | 23E |
| S84 | Soft top control switch | 22H |
| S84/1 | Left soft top "locked" limit switch | 13B |
| S84/2 | Right soft top "Locked" limit switch | 14B |
| S84/26 | Left soft top compartment lid up limit switch | 18B |
| S84/27 | Left soft top compartment lid locked limit switch | 19B |
| S84/28 | Right soft top compartment lid locked limit switch | 19C |
| S84/3 | Soft top "open" limit switch | 15B |
| S84/31 | Soft top closed limit switch | 21B |
| S84/34 | Soft top lock open limit switch | 21C |
| S84/35 | Soft top lock locked limit switch | 22C |
| S84/6 | Left soft top bow locked down limit switch | 16A |
| S84/7 | Right soft top bow locked down limit switch | 16B |
| S84/8 | Soft top bow up limit switch | 17A |
| S84s4 | Draft stop and wind deflector button | 23K |
| S84s5 | Power windows central operating switch | 23J |
