Remove/Install Upper Soft Top Limit Switch - AR77.39-P-3688LCA
Model 217.4
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove | |||

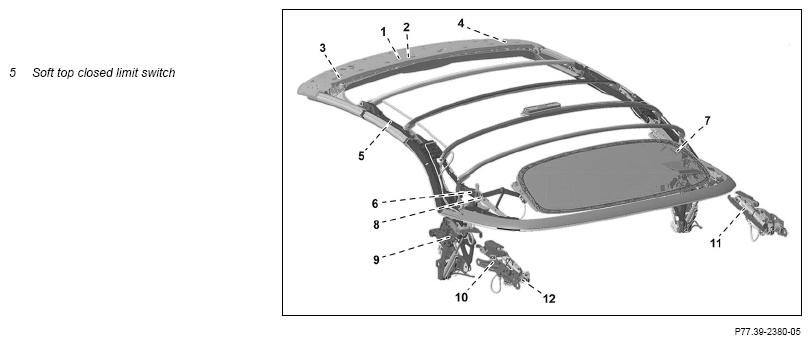

| 1 | Loosen left front soft top canvas | AR77.33-P-1005LCA | |
| 2 | Remove rivet | ||
| 3 | Cut wiring harness on soft top closed limit switch (5) at suitable point | ||
| Install | |||
| Risk of injury caused by burns to skin and eyes, risk of poisoning caused by inhaling fumes during soldering. | Wear protective gloves, protective clothing and safety glasses. Ensure that the work area is adequately ventilated. Secure power supply cables. Avoid sources of fire in working area. | AS00.19-Z-0002-01A | |
| 4 | Solder wiring harness with corresponding lines of limit switch | ||
| Notes on soldering | AH00.19-P-1000-10A | ||
| Notes on soft soldering | AH00.19-P-1000-07A | ||
| 000 588 00 84 00 Heat gun | WS54.00-P-0049B | ||
| AR00.19-P-0100-09A | |||
| Fig 1 | |||
| Fig 4 | |||
| Fig 2 | |||
| Fig 5 | |||
| Fig 3 | |||
| Fig 6 | |||
| 5 | Protect repair point with fabric tape after repairing line | AR00.19-P-0100-08A | |
| 6 | Rivet soft top closed limit switch (5) | ||
| 7 | Fasten left front soft top canvas | AR77.33-P-1005LCA |
