Remove/Install Trunk Partition Limit Switch - AR77.39-P-3699LCA
Model 217.4

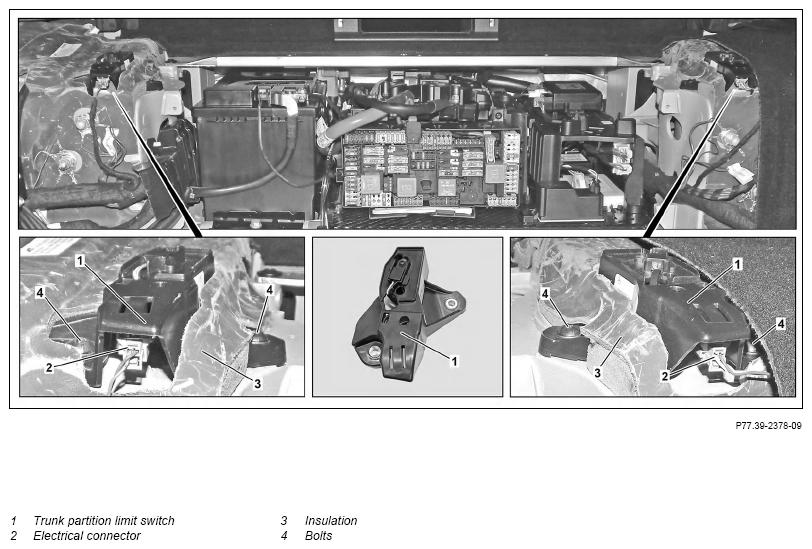

| Remove/install | |||
| 1 | Remove front trunk paneling | AR68.30-P-4602LCA | |
| 2 | Remove side paneling in trunk | AR68.30-P-4780LC | |
| 3 | Disconnect electrical connector (2) | ||
| 4 | Lift insulation (3) in area of trunk partition limit switch (1) | ||
| 5 | Remove bolts (4) | ||
| 6 | Remove trunk partition limit switch (1) | ||
| 7 | Install in the reverse order |
