Remove/Install Soft Top Mechanism Control Unit - AR77.39-P-3606LCA
Model 217.4
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

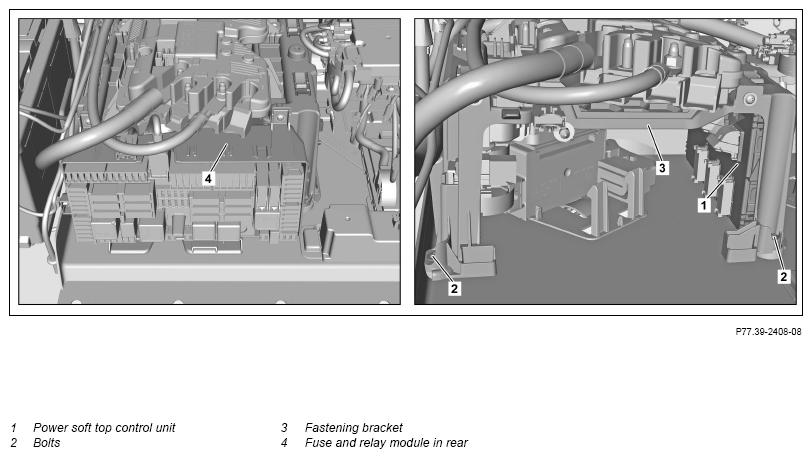

| 1 | Perform initial startup for soft top mechanism control unit (1) | When replacing soft top mechanism control unit (1). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove rear fuse and relay module (4) from mounting console (3) and lay down to side with electrical lines connected | AR54.15-P-0001LF | |
| 3 | Remove screw/bolts (2) | ||
| 4 | Press mounting console (3) upward, unlock soft top mechanism control unit (1) from mounting console (3) and disengage | ||
| 5 | Disconnect electrical connectors from soft top mechanism control unit (1) | ||
| 6 | Remove soft top mechanism control unit (1) | ||
| 7 | Install in the reverse order |
