Remove/Install Soft Top Lock With Integrated Limit Switch - AR77.33-P-1011LCA
Model 217.4
| Remove/install | |||

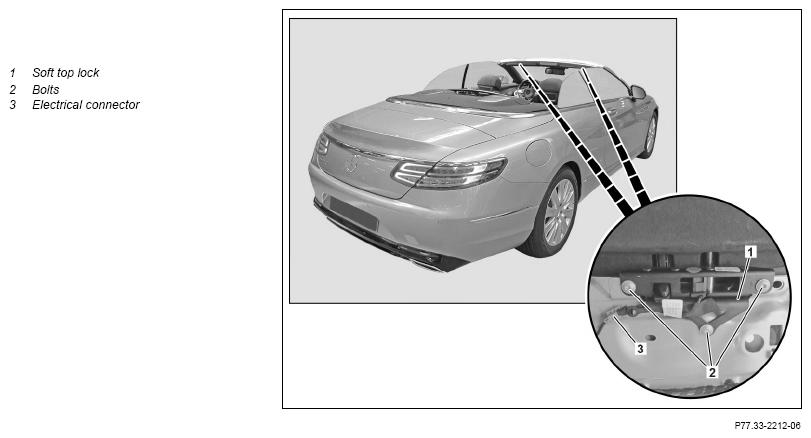

| 1 | Remove paneling from A-pillar | AR68.30-P-4050LCA | |
| 2 | Remove screw/bolts (2) | ||
| 3 | Disconnect electrical connection (3) | ||
| 4 | Remove soft top lock (1) | ||
| 5 | Install in the reverse order |
