Remove/Install Limit Switch For Front Soft Top Lock - AR77.39-P-3679LCA

Model 217.4

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Remove/install
1	Remove soft top lock		AR77.39-P-5000LCA
2	Remove rivets	Drive pointed pin into rivet and break rivet out with circular motion. Remove remaining pieces of rivet with appropriate punch.
3	Unclip connector

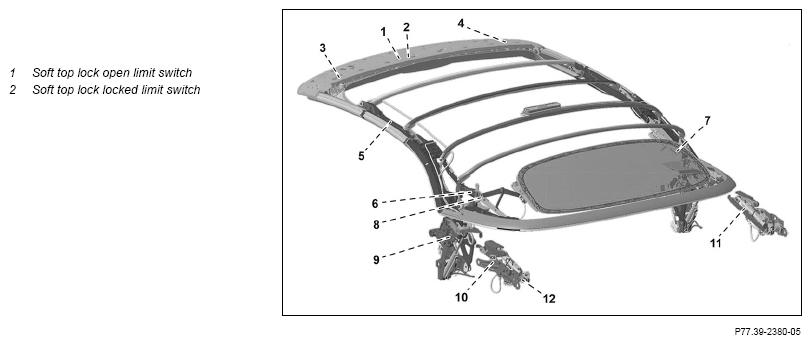

4	Remove soft top lock open/locked limit switch (1, 2)
5	Install in the reverse order
