Prepare Panoramic Roof Frame For Installation - AR77.21-P-0800-02LC
Model 217.3
| Topical note | Notes on removal/installation of bonded elements of panoramic roof | AH77.21-P-0001-01A |
MODIFICATION NOTES
| 13.04.2018 | Notes on removal/installation of bonded elements of the panoramic roof added. |

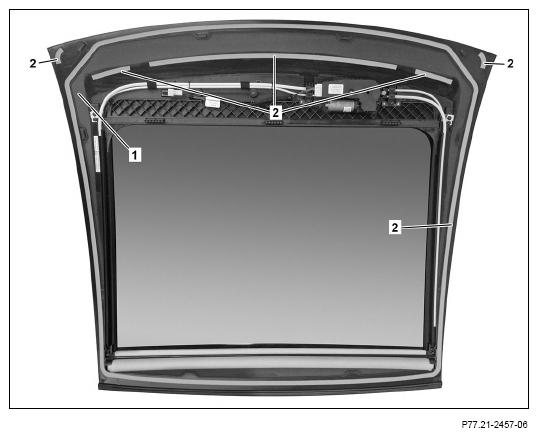

- Check panorama roof frame (1) and all associated detachable parts for damage.
If there is a problem,
↓
Replace corresponding component.
- Attach suction lifters to the outside of the panorama roof frame (1) and lay panorama roof frame (1) down on a suitable base with the inside pointing upward.
- Apply cleaner with one part of the paper towel to the bonding surfaces (2) on the panorama roof frame (1) and wipe off with the other part of the paper towel.
- Apply primer to the bonding surfaces (2).
