Prepare Panoramic Roof Frame Body Flange For Installation. - AR77.21-P-0800-05LC
Model 217.3
| Topical note | Notes on removal/installation of bonded elements of panoramic roof | AH77.21-P-0001-01A |
MODIFICATION NOTES
| 16.04.2018 | Notes on removal/installation of bonded elements of the panoramic roof added. |

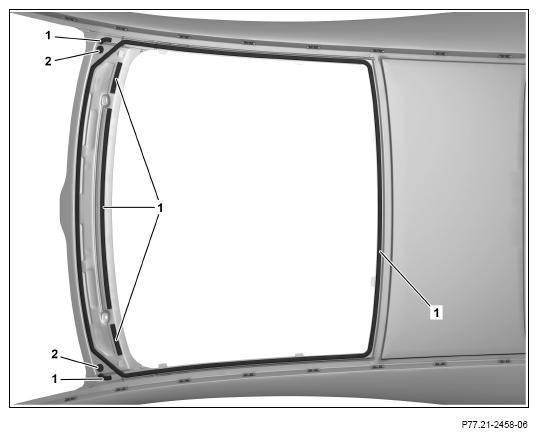

- Cut back adhesive material residues (1) on the body flange to a residual height of max. 1 mm with a scraper.
- Remove glue residues (1) cut from body flange.
- Check body grommets (2) in the area of the front roof frame for damage.
If there is a problem,
↓
Replace respective body grommet (2).
↓
repair paint damage on body flange
- Check body flange for paint damage.
If there is a problem,
- Apply primer in the respective adhesive area.
Only if adhesive material residues (1) in the adhesive area are missing
