Install Soft Top Support Fastening Gauge - AR77.30-P-1002-02LCA

Model 217.4

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

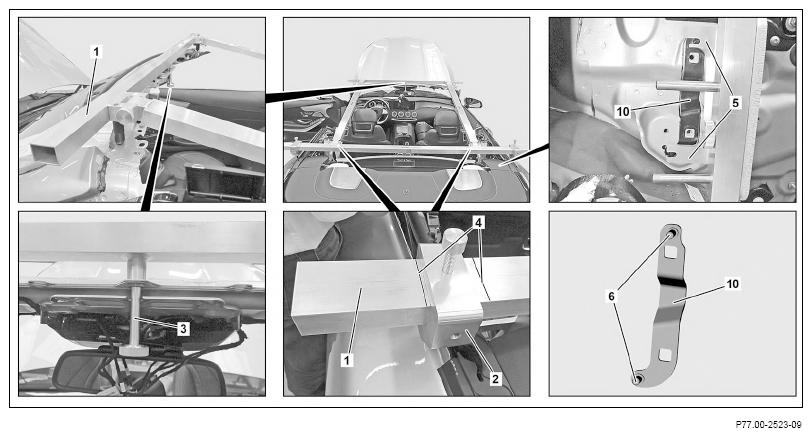

1. Assemble device (1) and move sliding pieces (2) to corresponding marking (4).

   Perform operation step analogously on both sides.

   Marking (4) must still be visible when adjusting sliding pieces (2).

2. Install device (1) on vehicle and tighten bolt (3) on windshield crossmember.

   Perform operation step analogously on the other two screws to the windshield crossmember

3. Install adjusted sliding pieces (2) on beltline of left and right rear fender.
4. Insert mounting plates (10) into mounts (5) on device (1).

   Lay mounting plates (10) on pins (6) into mounts (5) without gap.

5. Tighten mounting plate (10) .
