Connection Scheme For Pressure Test - AR77.37-P-4205-02LWR
Model 205.4
Model 217.4
Model 238.4
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A |
The following special tools are required:
valve block,
adapter and
test device.

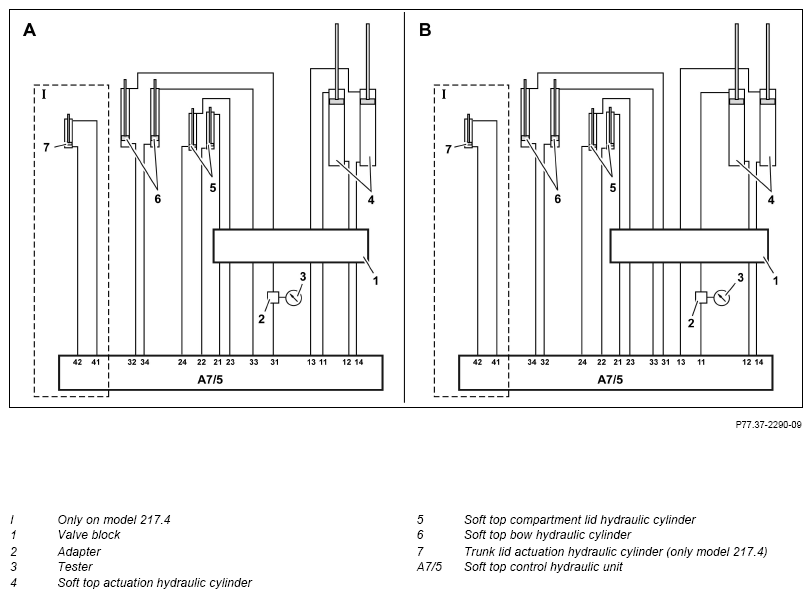

Connection diagram A and B

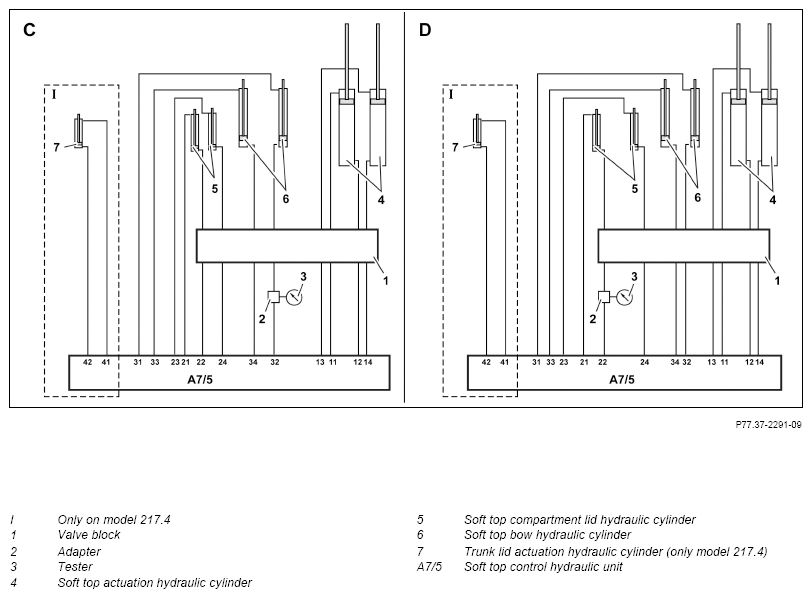

Connection diagram C and D

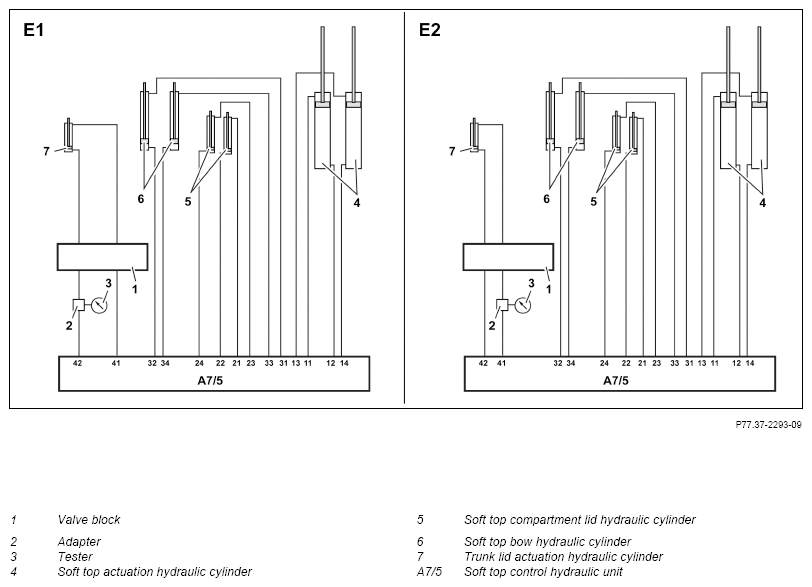

Model 217.4, connection diagram E1 and E2
