Adjust Side Flap For Soft Top - AR77.33-P-1021LCA

Model 217.4

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
	Check
1	Open soft top	With soft top closed.
2	Check gap dimensions of side flap for soft to	Gap dimensions must be uniform and transitions flush.
	Adjust
3	Move soft top compartment lid (1) to vertical position	Close soft top only until soft top compartment lid (1) is positioned vertically and the side flaps for the soft top (2) are folded out.	.
4	Secure soft top compartment lid (1) against falling down	: Hydraulic system looses pressure over time, carefully lay down soft top compartment lid (1) Otherwise damage can occur.	.

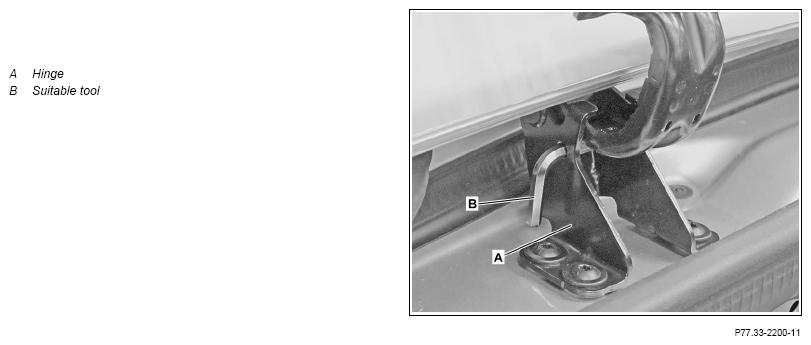

		: Alway remove suitable tools (B) from holes in hinges (A). Otherwise the soft top compartment (1) can be damaged. Insert suitable tools (B) through holes in hinges (A).

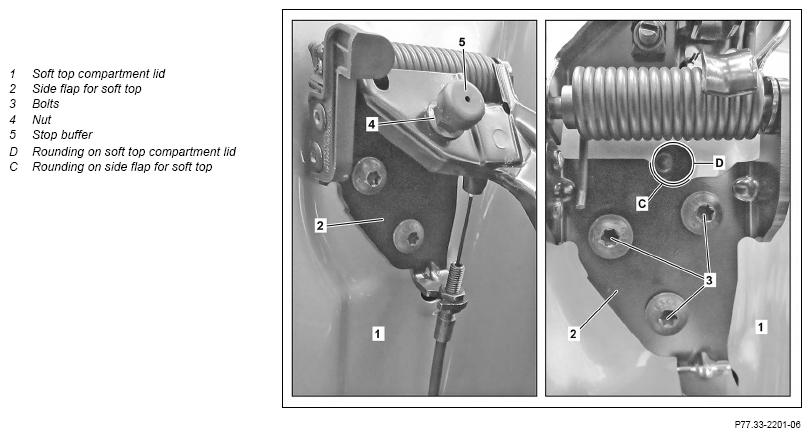

5	Loosen bolts (3) and adjust side flap for soft top (2) on soft top compartment lid (1)	Rounding (C) on side flap for soft top (2) should be parallel with rounding (D) on soft top compartment lid (1).
6	Tighten bolts (3)	Bolt, side flap hinge to soft top compartment lid	*BA77.33-P-1007-02A
7	Loosen nut (4) and adjust height of side flap for soft top compartment lid (2)	Turn stop buffers (5) in appropriate direction.
8	Tighten nut (4)
	Check
9	Check gap dimensions of side flap for soft top	If gap dimensions of side flap for soft top (2) are not uniform. ↓ Repeat adjustment

MECHANICAL SOFT-TOP COMPONENTS

Number	Designation		Model 217.4
BA77.33-P-1007-02A	Bolt, side flap hinge to soft top compartment lid	Nm	10
