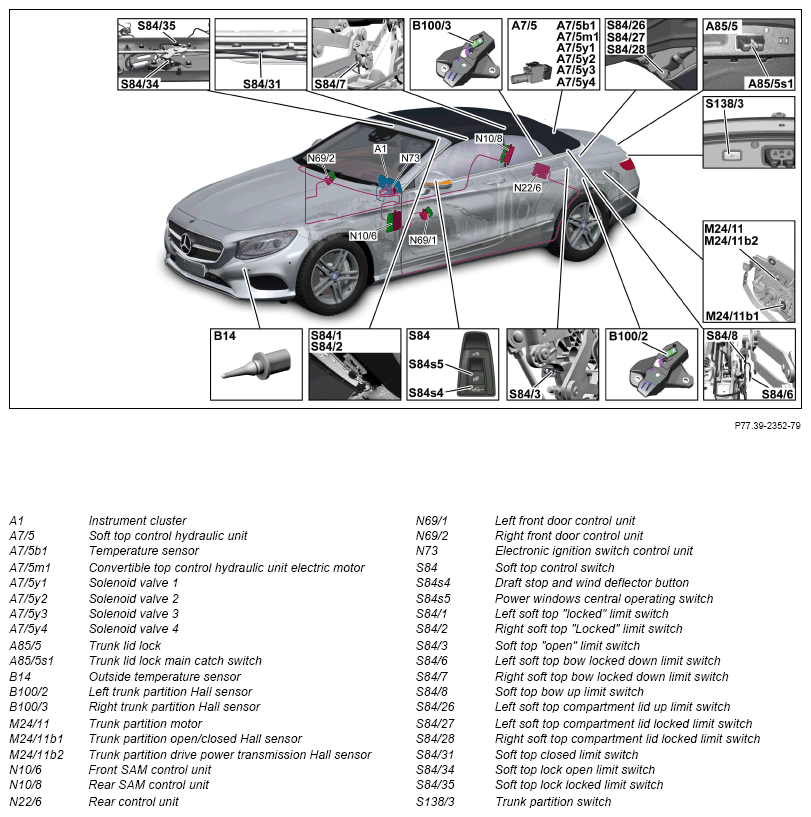

Overview Of System Components For Soft Top, Component Description - GF77.30-P-9997LF
Model 217.4
| Component description for instrument cluster | Model 217.4 up to model year 2018 A1 |
GF54.30-P-6000LF | |
| Model 217.4 as of model year 2018 A1 |
GF54.30-P-6000LFM | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030LF | |
| Rear control unit, component description | N22/6 | GF54.21-P-4134LF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Table of contents for function description of soft top | GF77.30-P-0999LF |
