Removing And Installing Soft Top Paneling - AR68.30-P-4320LCA
Model 217.4
MODIFICATION NOTES
| 07.03.2016 | "Move soft top to intermediate position" added. | Operation step 1 | |
| 07.03.2016 | "Manually lay down soft top in soft top compartment" added. | Operation step 4 |
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. |
AS91.00-Z-0008-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury when performing check and repair work in area of roll bar | Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects. |
AS91.00-Z-0003-01LCA | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Move soft top into intermediate position and secure | AR77.30-P-1030-01LCA | |

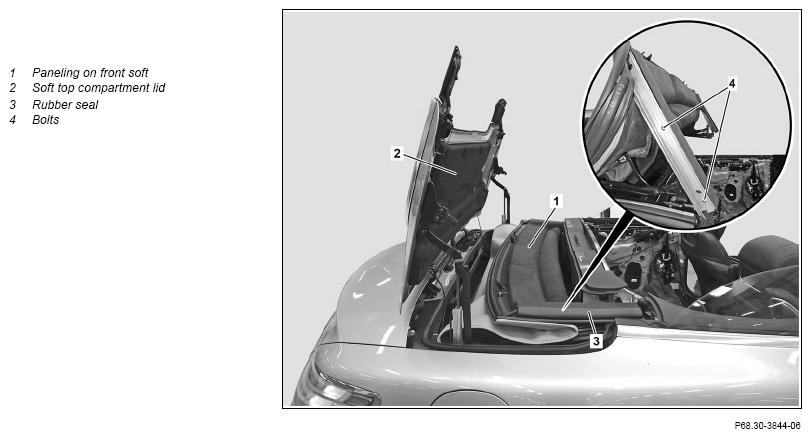

| 2 | Remove left and right rubber seal (3) until bolts (4) are accessible | ||
| 3 | Unscrew left and right bolts (4) | ||
| 4 | Manually lay down soft top in soft top compartment | ||
| 5 | Unclip paneling on soft top (1) from soft top compartment | ||
| 6 | Pull out paneling on soft top (1) below rubber seal (3) and remove | ||
| 7 | Install in the reverse order |
