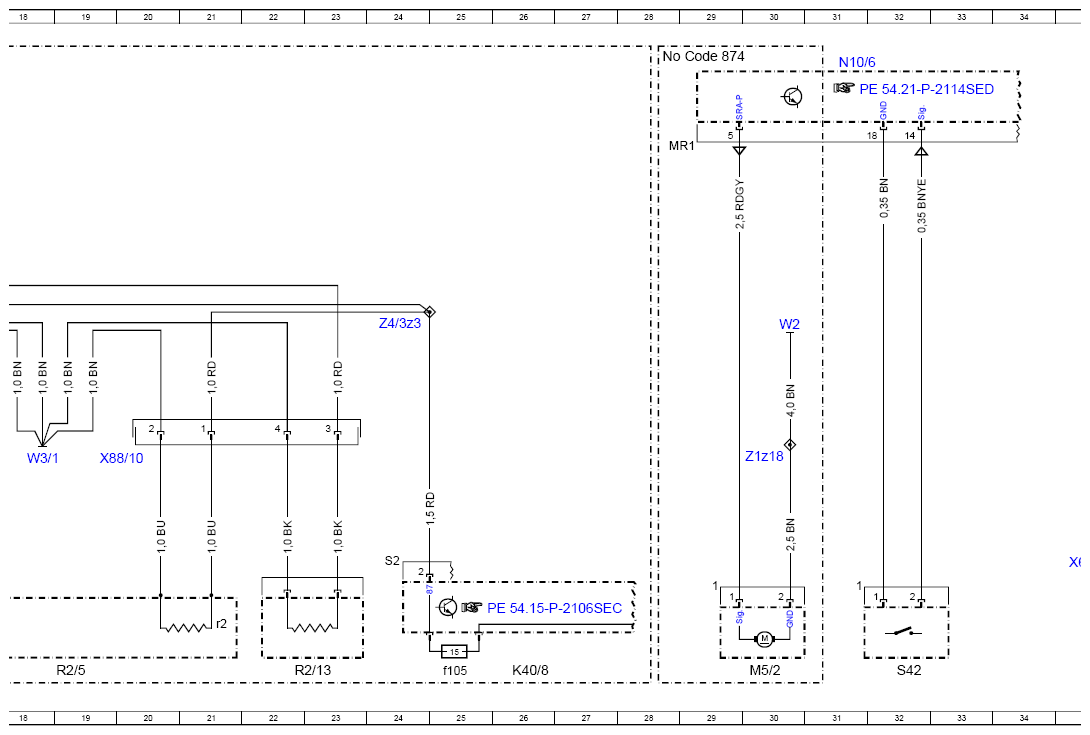

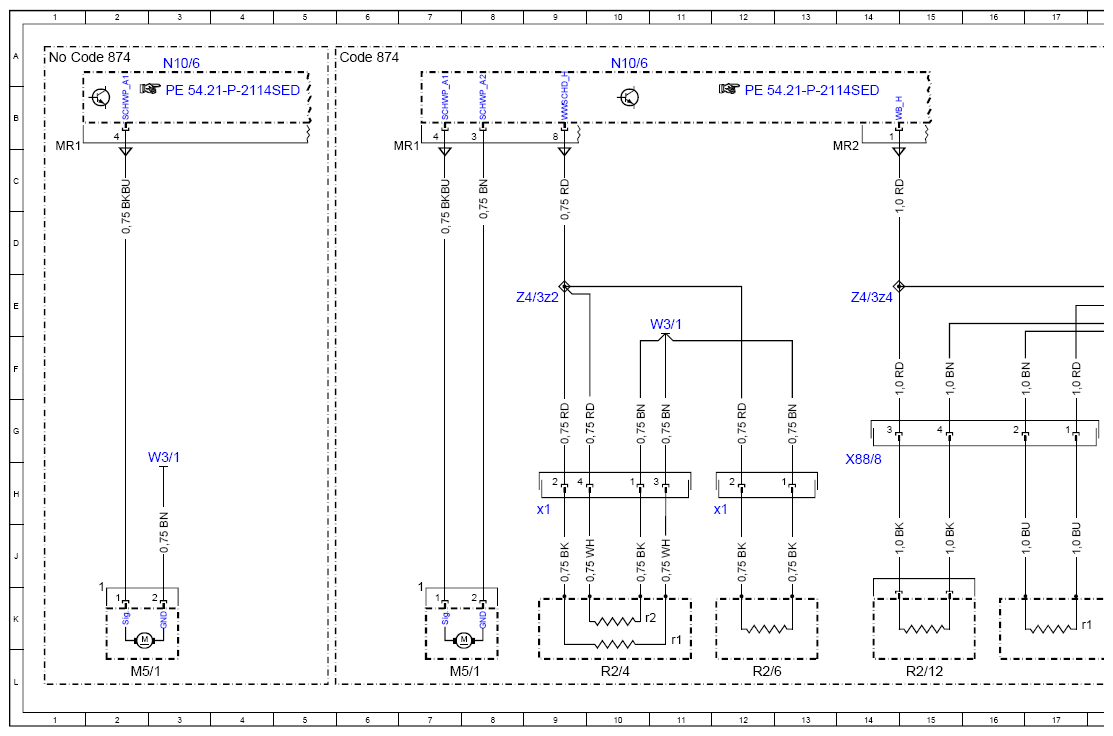

Wiring Diagram Of Windshield Washer System - PE82.35-P-2100-97SEA
Model 217, 222 as of model year 2018
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| Code 874 | MAGIC VISION CONTROL | 6A |
| Code 874 | MAGIC VISION CONTROL | 1A |
| Code 874 | MAGIC VISION CONTROL | 29A |
| K40/8 | Engine fuse and relay module | 26L |
| K40/8 | Engine fuse and relay module | 37A |
| K40/8f105 | Fuse 105 | 25L |
| K40/8f106 | Fuse 106 | 36A |
| M5/1 | Windshield washer system pump | 7L |
| M5/1 | Windshield washer system pump | 2L |
| M5/2 | Night & Day View Assist long-range camera washer fluid pump | 30L |
| N10/6 | Front SAM control unit | 3A |
| N10/6 | Front SAM control unit | 10A |
| N10/6 | Front SAM control unit | 31A |
| R2/10 | Wiper park heater | 36L |
| R2/12 | Left heated wiper blade | 15L |
| R2/13 | Right heated wiper blade | 22L |
| R2/4 | Lower spray nozzle hose heater | 10L |
| R2/4r1 | Lower spray nozzle hose heater feed line heating element | 11K |
| R2/4r2 | Lower spray nozzle hose heater return line heating element | 10K |
| R2/4x1 | Lower spray nozzle hose heater electrical connector | 9H |
| R2/5 | Upper spray nozzle hose heater | 19L |
| R2/5r1 | Upper spray nozzle hose heater, left | 17K |
| R2/5r2 | Upper spray nozzle hose heater, right | 21K |
| R2/6 | Windshield washer system junction box | 12L |
| R2/6x1 | Windshield washer system junction box electrical connector | 12H |
| S42 | Windshield washer system washer fluid level switch | 32L |
| W2 | Right front ground point (at lamp unit) | 30E |
| W3/1 | Ground point (right front wheel well) | 3H |
| W3/1 | Ground point (right front wheel well) | 18H |
| W3/1 | Ground point (right front wheel well) | 11E |
| W3/2 | Left front wheel arch ground point | 36G |
| X64/3 | Wiper park position heater electrical connector | 35J |
| X88/10 | Upper spray nozzle hose heater and right wiper blade heater electrical connector | 20H |
| X88/8 | Upper spray nozzle hose heater and left wiper blade heater electrical connector | 14H |
| Z1z18 | Circuit 31 connector sleeve | 30G |
| Z4/3z2 | Tml. 30 connector sleeve | 9E |
| Z4/3z3 | Tml. 30 connector sleeve | 24E |
| Z4/3z4 | Tml. 30 connector sleeve | 14E |
