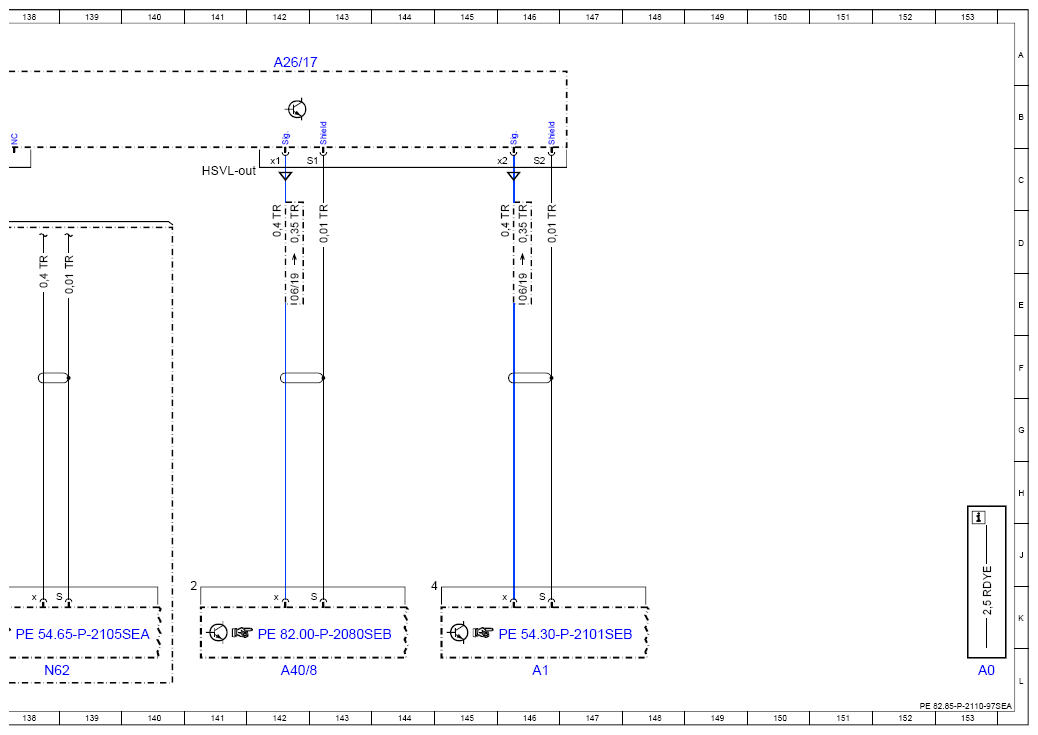

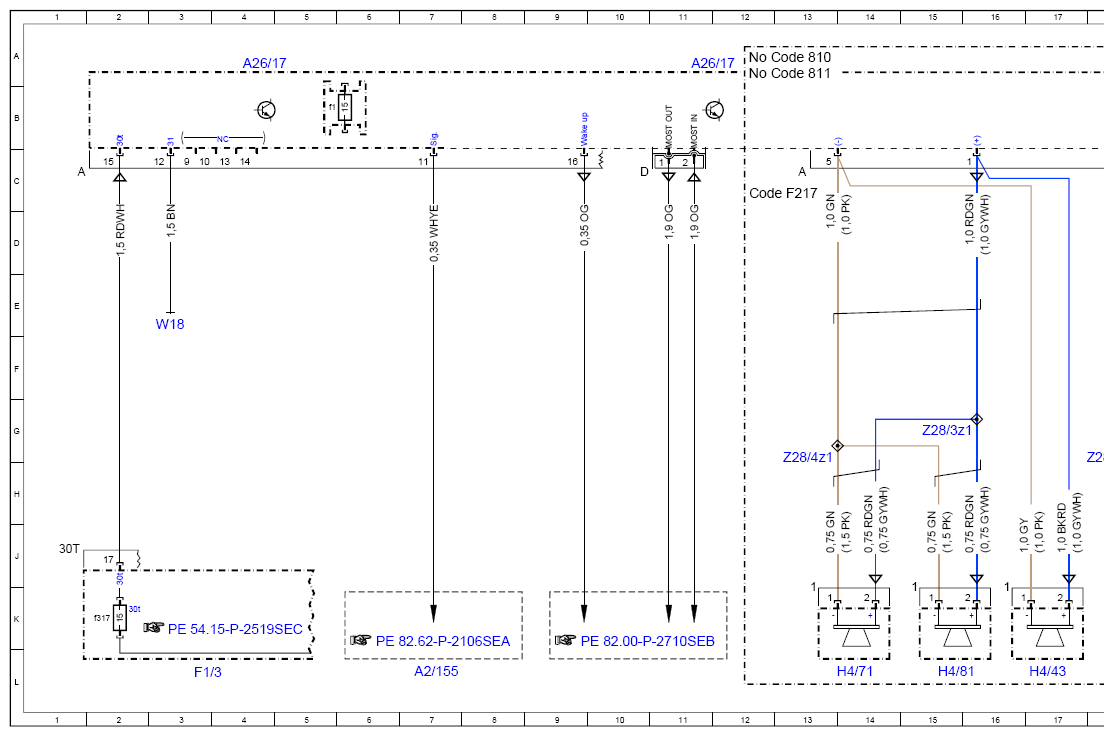

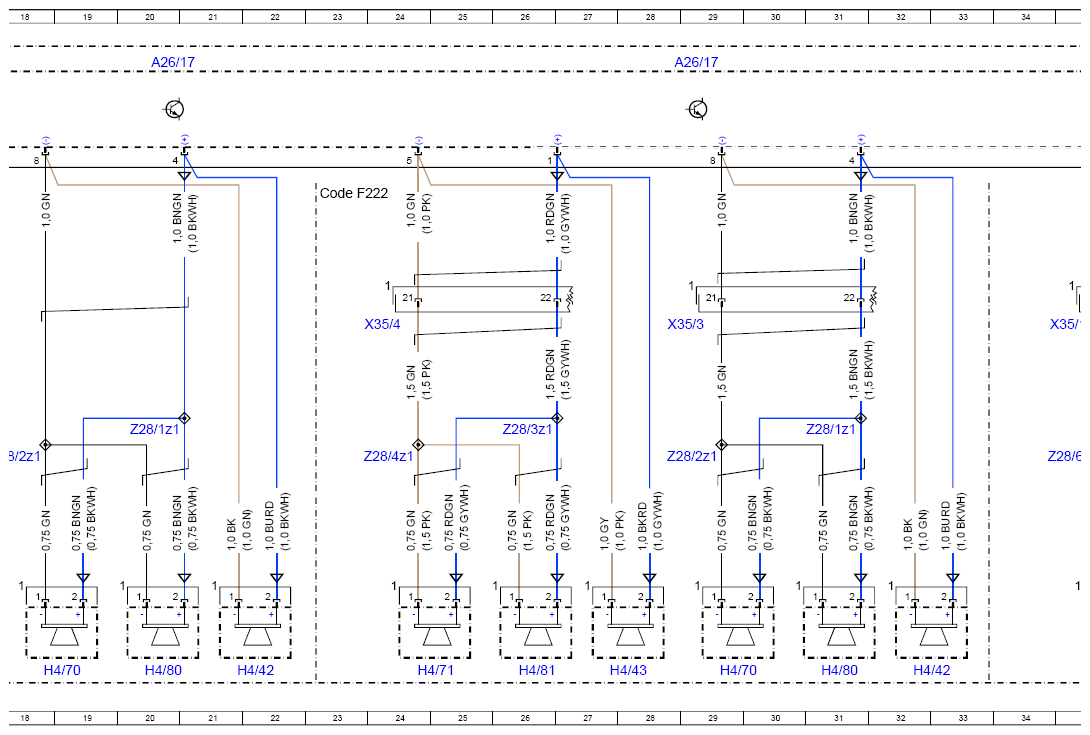

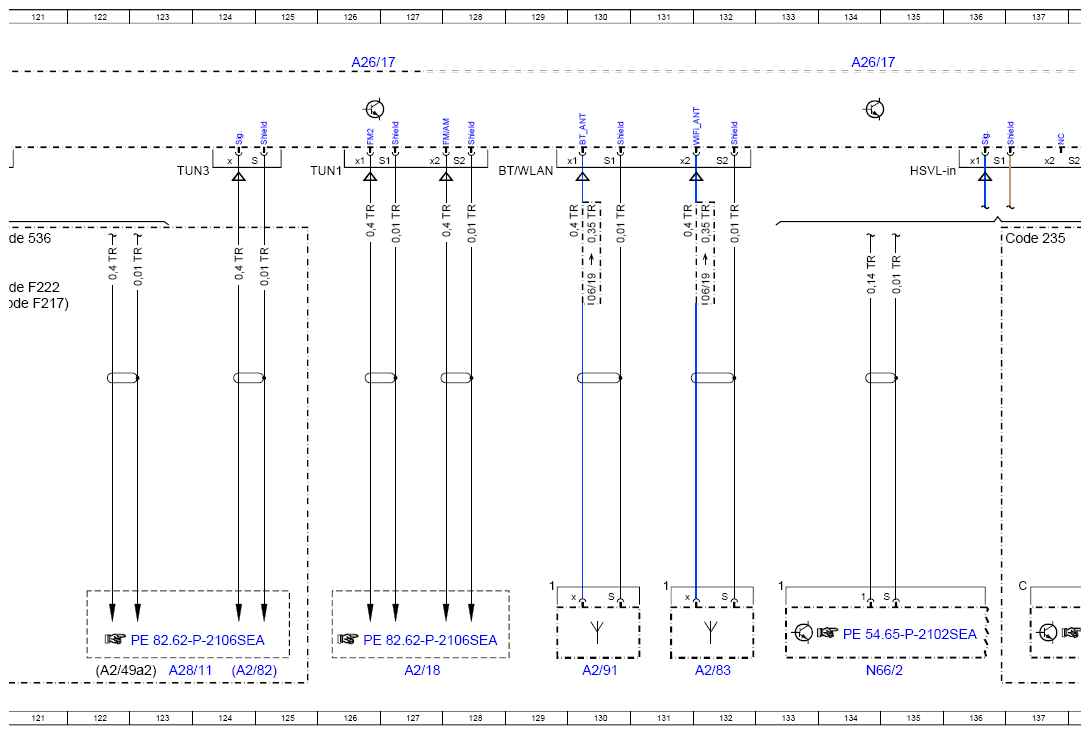

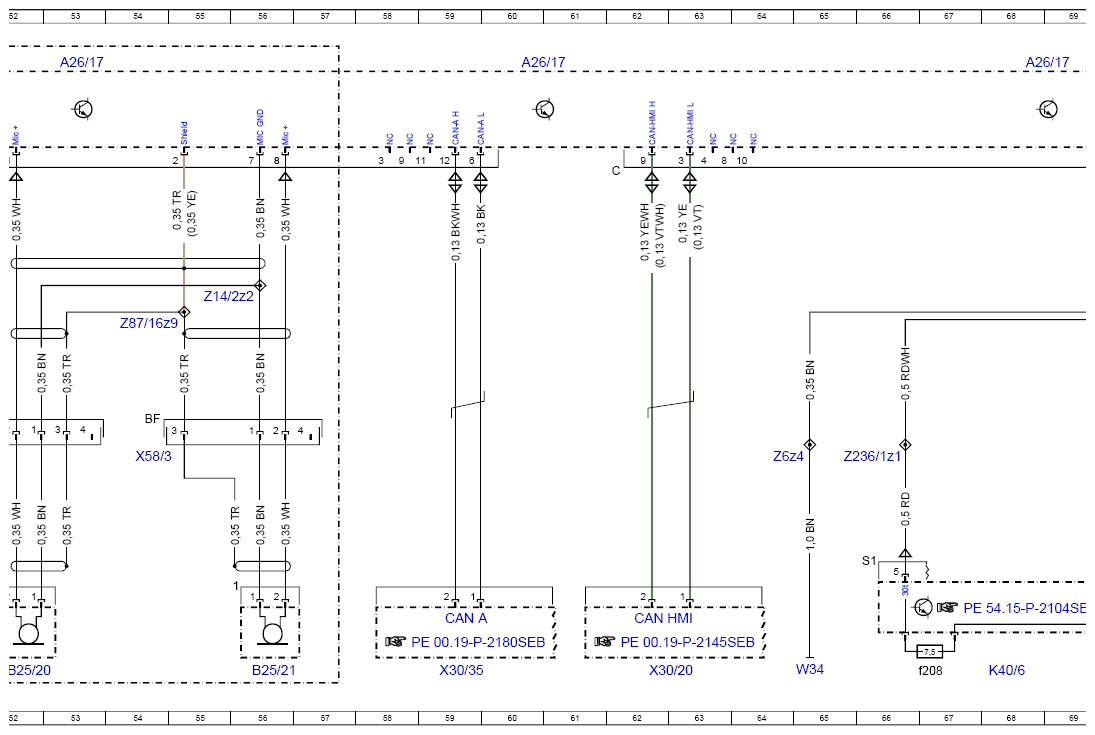

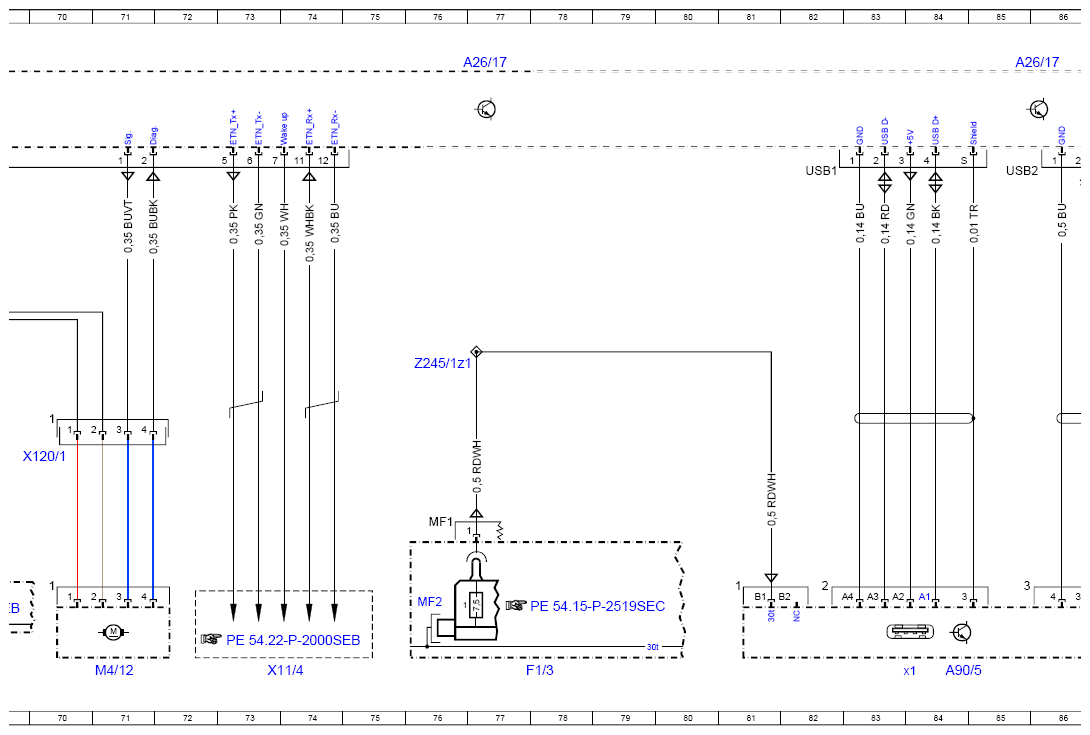

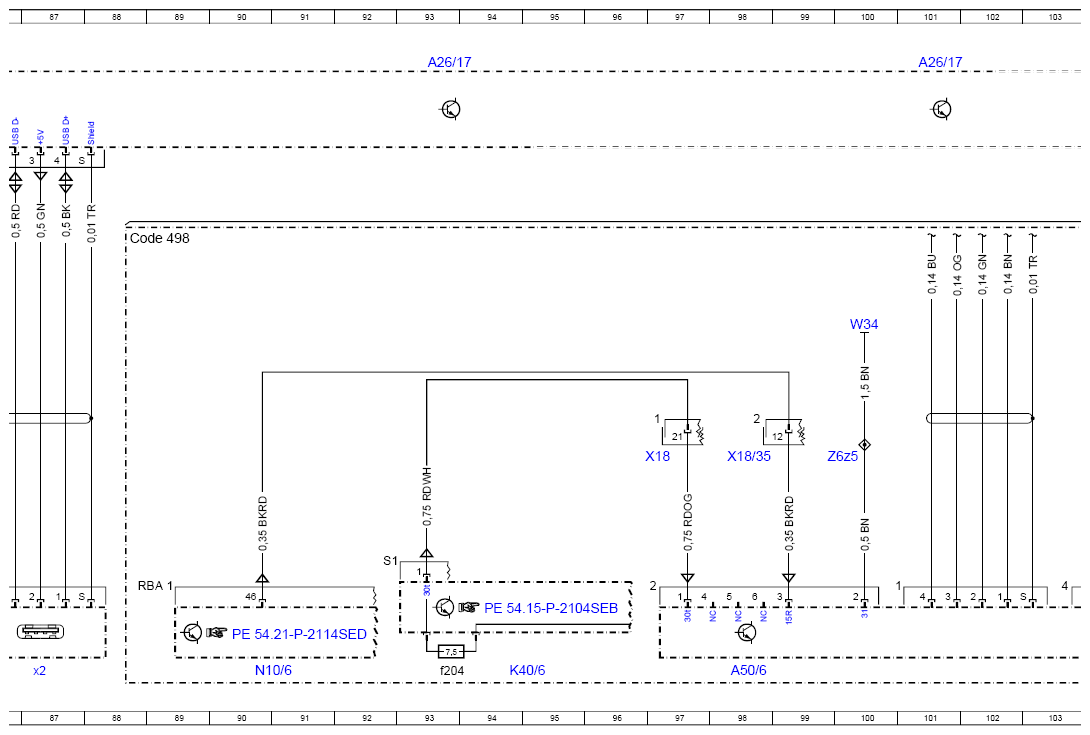

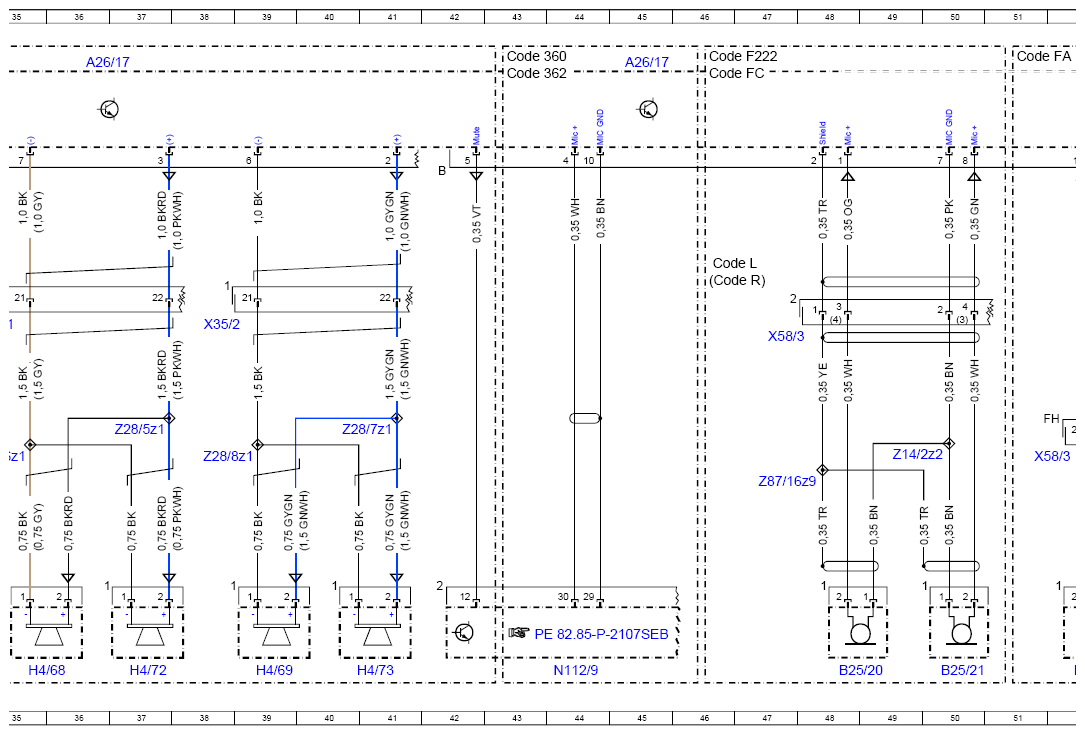

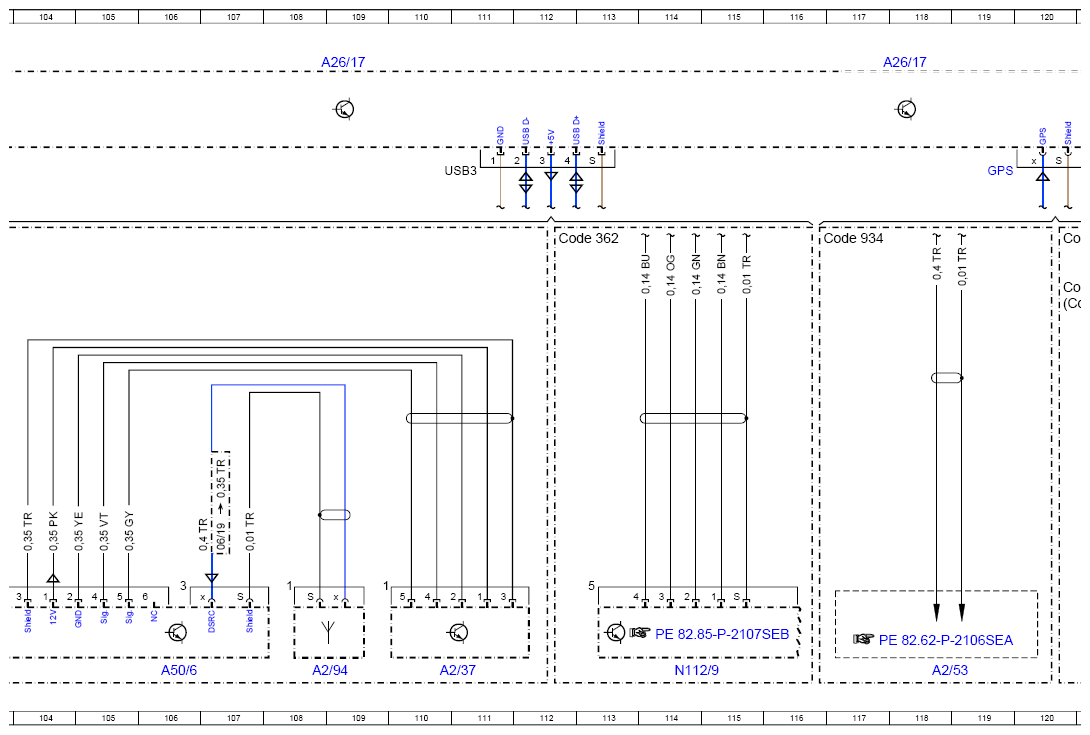

Wiring Diagram Of Head Unit - PE82.85-P-2110-97SEA
Model 217, 222 as of model year 2018 Head unit A26/17
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 153L |
| A1 | Instrument cluster | 146L |
| A2/155 | Telephone, stationary heater and Remote Park-Pilot antenna changeover switch | 7L |
| A2/18 | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier | 127L |
| A2/37 | Vehicle Information and Communication System (VICS) control unit | 110L |
| A2/49a2 | GPS antenna | 122L |
| A2/53 | Mobile phone and stationary heater radio remote control antenna splitter | 118L |
| A2/82 | SDARS antenna | 124L |
| A2/83 | WLAN antenna | 132L |
| A2/91 | Bluetooth® antenna | 130L |
| A2/94 | DSRC antenna | 108L |
| A26/17 | Head unit | 29A |
| A26/17 | Head unit | 4A |
| A26/17 | Head unit | 11A |
| A26/17 | Head unit | 20A |
| A26/17 | Head unit | 53A |
| A26/17 | Head unit | 36A |
| A26/17 | Head unit | 45A |
| A26/17 | Head unit | 60A |
| A26/17 | Head unit | 68A |
| A26/17 | Head unit | 77A |
| A26/17 | Head unit | 85A |
| A26/17 | Head unit | 93A |
| A26/17 | Head unit | 101A |
| A26/17 | Head unit | 109A |
| A26/17 | Head unit | 118A |
| A26/17 | Head unit | 126A |
| A26/17 | Head unit | 134A |
| A26/17 | Head unit | 142A |
| A26/17f1 | Electrical fuse, head unit | 5B |
| A28/11 | Multifunction antenna | 123L |
| A40/8 | Audio/COMAND display | 142L |
| A50/6 | Dedicated Short-Range Communications control unit | 98L |
| A50/6 | Dedicated Short-Range Communications control unit | 106L |
| A90/5 | Multimedia connection unit | 84L |
| A90/5x1 | USB connector 1 | 83L |
| A90/5x2 | USB connector 2 | 87L |
| B25/20 | Driver hands-free system microphone | 48L |
| B25/20 | Driver hands-free system microphone | 52L |
| B25/21 | Front passenger hands-free system microphone | 50L |
| B25/21 | Front passenger hands-free system microphone | 56L |
| CAN A | Telematics CAN | 59K |
| CAN HMI | User interface CAN | 62K |
| Code 235 | Active Park Assist | 136D |
| Code 360 | HERMES UMTS | 43A |
| Code 362 | HERMES LTE | 43A |
| Code 362 | HERMES LTE | 112D |
| Code 498 | Japan version | 88D |
| Code 536 | SIRIUS satellite radio | 120D |
| Code 810 | Sound system | 12A |
| Code 811 | Advanced sound system | 12A |
| Code 934 | Taxi emergency alarm system | 116D |
| Code F217 | MODEL SERIES 217 | 12C |
| Code F217 | MODEL SERIES 217 | 120E |
| Code F222 | MODEL SERIES 222 | 23C |
| Code F222 | MODEL SERIES 222 | 46A |
| Code F222 | MODEL SERIES 222 | 120E |
| Code FA | CABRIOLET | 51A |
| Code FC | COUPE | 46A |
| Code L | LEFT-HAND DRIVE | 46D |
| Code R | RIGHT-HAND DRIVE | 46E |
| F1/3 | Passenger-side A-pillar fuse box | 78L |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3MF2 | Multiple fuse 2 | 76K |
| F1/3f317 | Fuse 317 | 2K |
| H4/42 | Left footwell woofer | 22L |
| H4/42 | Left footwell woofer | 32L |
| H4/43 | Right footwell woofer | 17L |
| H4/43 | Right footwell woofer | 28L |
| H4/68 | Left front door tweeter | 35L |
| H4/69 | Right front door tweeter | 39L |
| H4/70 | Left rear door tweeter | 18L |
| H4/70 | Left rear door tweeter | 29L |
| H4/71 | Right rear door tweeter | 14L |
| H4/71 | Right rear door tweeter | 24L |
| H4/72 | Left front door midrange speaker | 37L |
| H4/73 | Right front door midrange speaker | 41L |
| H4/80 | Left rear door midrange speaker | 20L |
| H4/80 | Left rear door midrange speaker | 31L |
| H4/81 | Right rear door midrange speaker | 15L |
| H4/81 | Right rear door midrange speaker | 26L |
| K40/6 | Driver-side fuse and relay module | 68L |
| K40/6 | Driver-side fuse and relay module | 94L |
| K40/6f204 | Fuse 204 | 93L |
| K40/6f208 | Fuse 208 | 67L |
| M4/12 | Digital instrument cluster full display fan motor | 71L |
| N10/6 | Front SAM control unit | 90L |
| N112/9 | HERMES control unit | 44L |
| N112/9 | HERMES control unit | 114L |
| N62 | Parking system control unit | 138L |
| N66/2 | Backup camera control unit | 134L |
| W18 | Left front seat crossmember ground point | 3E |
| W34 | Left footwell ground point | 65L |
| W34 | Left footwell ground point | 100E |
| X11/4 | Diagnostic connector | 73L |
| X120/1 | External fan electrical connector, Audio/COMAND display | 70H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 97H |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 98H |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 62L |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 59L |
| X35/1 | Driver door electrical connector | 35E |
| X35/2 | Front passenger door electrical connector | 38E |
| X35/3 | Left rear door electrical connector | 29E |
| X35/4 | Right rear door electrical connector | 24E |
| X58/3 | Microphone electrical connector | 52H |
| X58/3 | Microphone electrical connector | 54H |
| X58/3 | Microphone electrical connector | 47F |
| Z14/2z2 | Microphone connector sleeve (-) | 49G |
| Z14/2z2 | Microphone connector sleeve (-) | 55E |
| Z236/1z1 | COMAND fan motor and circuit 30 connector sleeve | 66G |
| Z245/1z1 | Universal serial bus connector sleeve, power supply | 76F |
| Z28/1z1 | Left rear speaker group connector sleeve (+ signal) | 20G |
| Z28/1z1 | Left rear speaker group connector sleeve (+ signal) | 31G |
| Z28/2z1 | Left rear speaker group connector sleeve (- signal) | 18G |
| Z28/2z1 | Left rear speaker group connector sleeve (- signal) | 29G |
| Z28/3z1 | Right rear speaker group connector sleeve (+ signal) | 15G |
| Z28/3z1 | Right rear speaker group connector sleeve (+ signal) | 26G |
| Z28/4z1 | Right rear speaker group connector sleeve (- signal) | 13G |
| Z28/4z1 | Right rear speaker group connector sleeve (- signal) | 24G |
| Z28/5z1 | Left front door speaker group connector sleeve (+ signal) | 37G |
| Z28/6z1 | Left front door speaker group connector sleeve (- signal) | 35G |
| Z28/7z1 | Right front door speaker group connector sleeve (+ signal) | 41G |
| Z28/8z1 | Right front door speaker group connector sleeve (- signal) | 38G |
| Z6z4 | Circuit 31 connector sleeve | 64G |
| Z6z5 | Circuit 31 connector sleeve | 100G |
| Z87/16z9 | Active engine noise compensation microphones connector sleeve, shielding | 47H |
| Z87/16z9 | Active engine noise compensation microphones connector sleeve, shielding | 54E |
