Wiring Diagram Of Most Bus - PE82.00-P-2710-97SEA
Model 217 up to model year 2018
Model 222 up to model year 2018
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A26/18 | Rear entertainment controller unit | 15L |
| A40/3 | COMAND control unit | 4A |
| A40/3 | COMAND control unit | 12A |
| A40/3 | COMAND control unit | 17A |
| A40/3 | COMAND control unit | 21A |
| A40/3 | COMAND control unit | 27A |
| A90/4 | Tuner unit | 4L |
| A90/4 | Tuner unit | 22L |
| Code 536 | SIRIUS satellite radio | 1G |
| Code 536 | SIRIUS satellite radio | 19G |
| Code 537 | Digital radio | 1G |
| Code 537 | Digital radio | 19G |
| Code 810 | Sound system | 7G |
| Code 810 | Sound system | 24G |
| Code 811 | Advanced sound system | 7G |
| Code 811 | Advanced sound system | 24G |
| Code 864 | Rear compartment entertainment | 12G |
| Code 865 | TV tuner | 1G |
| Code 865 | TV tuner | 19G |
| MOST | Media Oriented System Transport | 5C |
| MOST | Media Oriented System Transport | 23C |
| N40/3 | Sound system amplifier control unit | 9L |
| N40/3 | Sound system amplifier control unit | 9L |
| N40/3 | Sound system amplifier control unit | 27L |
| N40/3 | Sound system amplifier control unit | 27L |

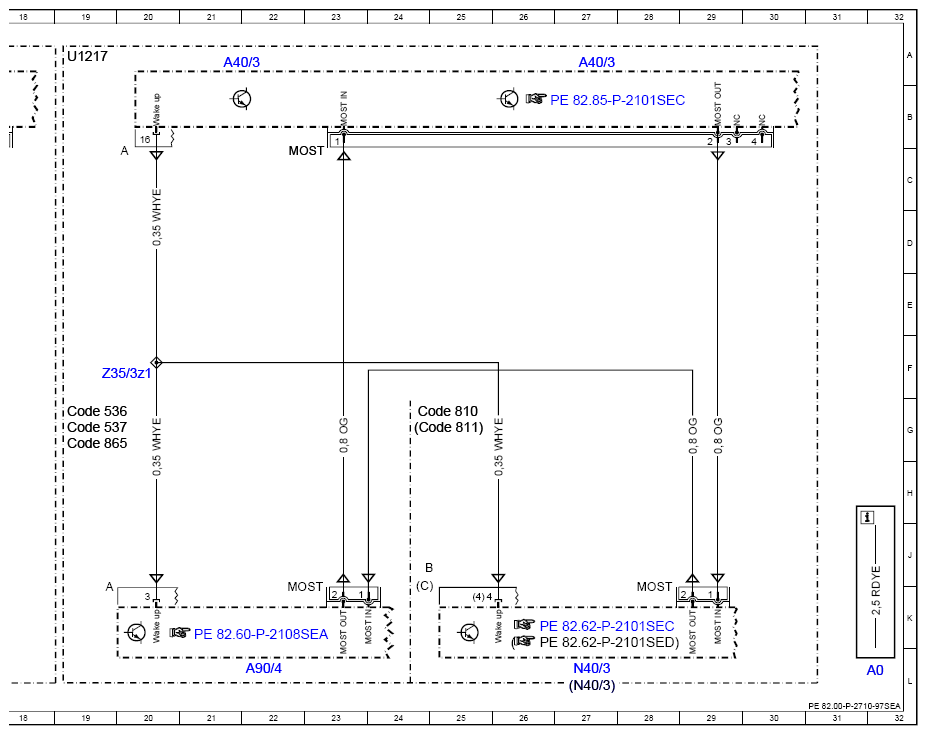

| U1217 | Valid for model series 217 | 19A |

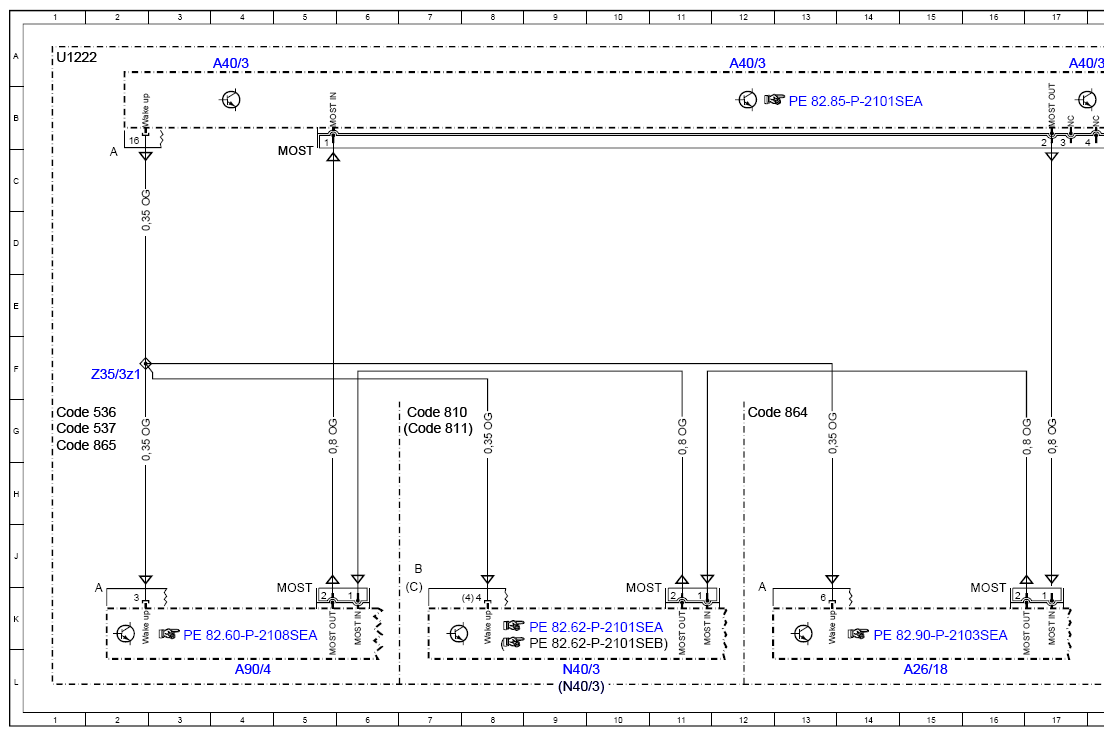

| U1222 | Valid for model series 222 | 1A |
| Z35/3z1 | Wake-up signal connector sleeve | 20F |
| Z35/3z1 | Wake-up signal connector sleeve | 2F |
