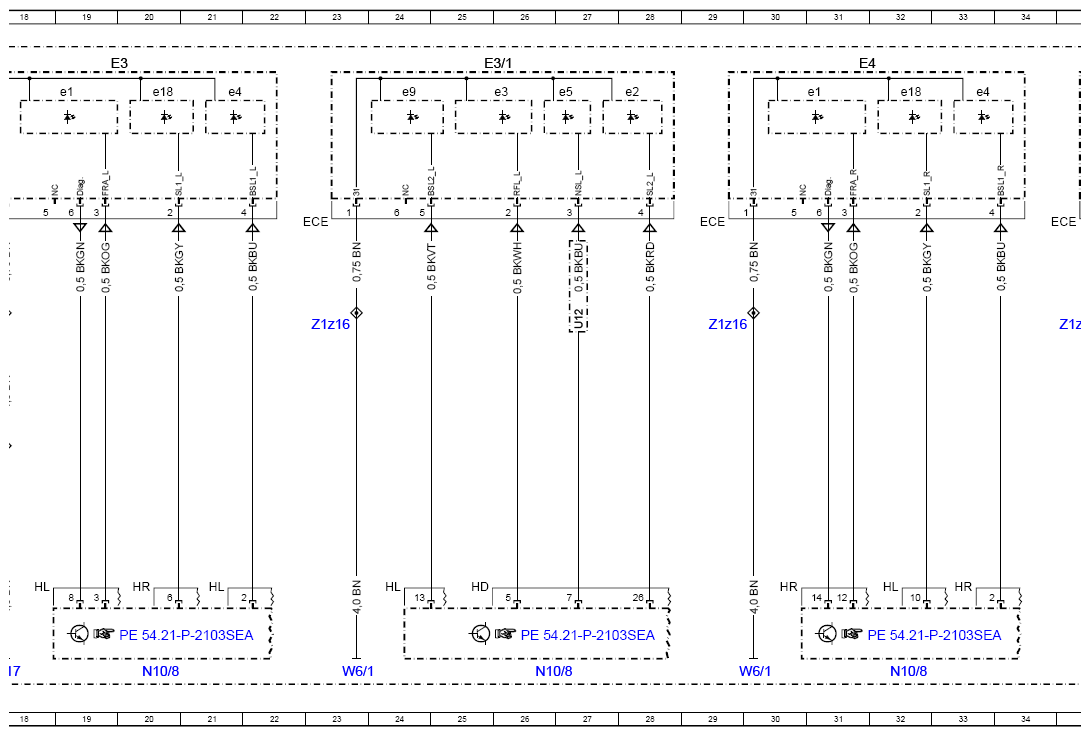

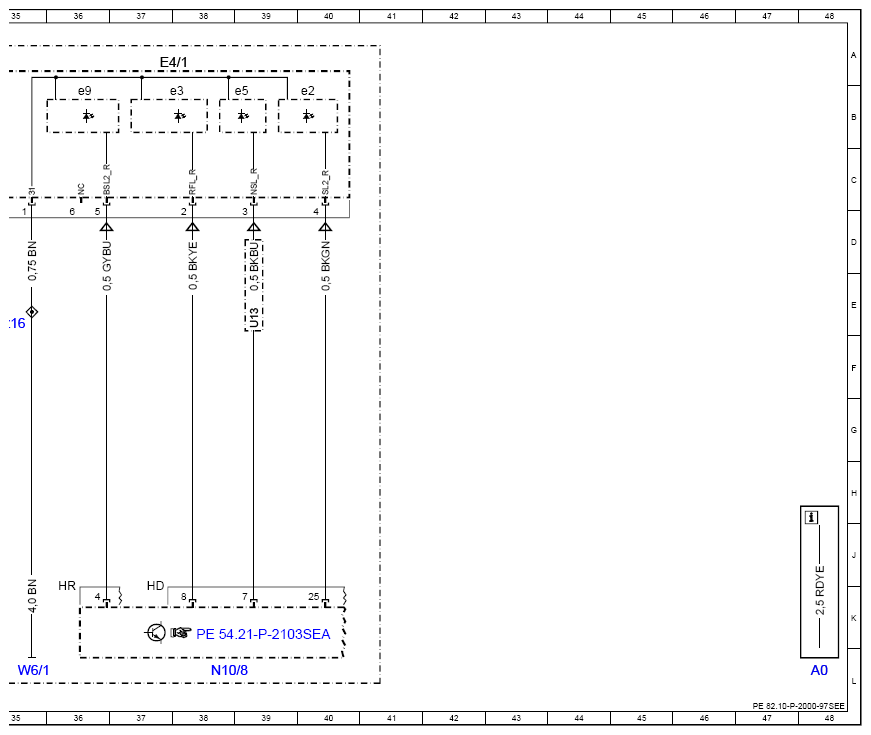

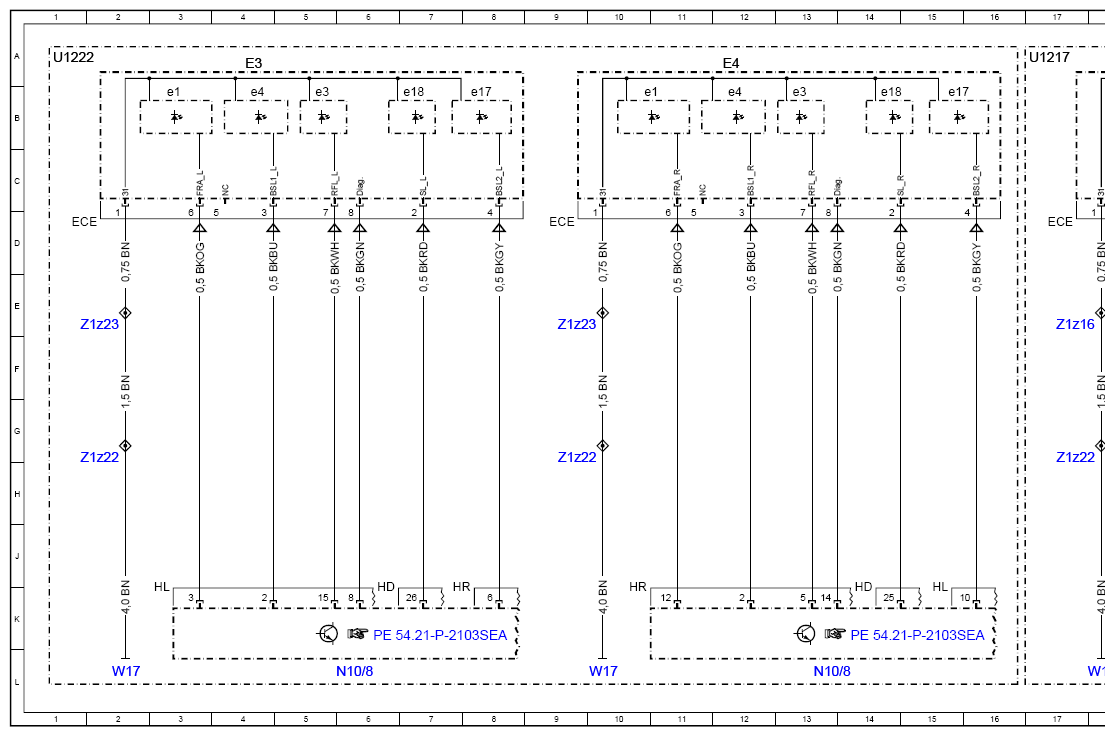

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97SEE
Model 217 up to model year 2018 except code 494 (US version)
Lamp units E3 and E4
Model 222 up to model year 2018 except code 494 (US version)
Lamp units E3 and E4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| E3 | Left rear lamp unit | 4A |
| E3 | Left rear lamp unit | 19A |
| E3/1 | Inner left rear lamp unit | 25A |
| E3/1e2 | Left inside taillight | 28B |
| E3/1e3 | Left backup lamp | 26B |
| E3/1e5 | Left rear fog lamp | 27B |
| E3/1e9 | Inner left brake light | 24B |
| E3e1 | Left rear turn signal lamp | 3B |
| E3e1 | Left rear turn signal lamp | 19B |
| E3e17 | Left taillight and brake light | 8B |
| E3e18 | Left taillamp | 7B |
| E3e18 | Left taillamp | 20B |
| E3e3 | Left backup lamp | 5B |
| E3e4 | Left stop lamp | 4B |
| E3e4 | Left stop lamp | 21B |
| E4 | Right rear lamp unit | 12A |
| E4 | Right rear lamp unit | 31A |
| E4/1 | Inner right rear lamp unit | 37A |
| E4/1e2 | Right inside taillight | 40B |
| E4/1e3 | Right backup lamp | 38B |
| E4/1e5 | Right rear fog lamp | 39B |
| E4/1e9 | Inner right brake light | 36B |
| E4e1 | Right rear turn signal lamp | 10B |
| E4e1 | Right rear turn signal lamp | 31B |
| E4e17 | Right taillight and brake light | 15B |
| E4e18 | Right taillamp | 14B |
| E4e18 | Right taillamp | 32B |
| E4e3 | Right backup lamp | 13B |
| E4e4 | Right stop lamp | 12B |
| E4e4 | Right stop lamp | 33B |
| N10/8 | Rear SAM control unit | 6L |
| N10/8 | Rear SAM control unit | 13L |
| N10/8 | Rear SAM control unit | 20L |
| N10/8 | Rear SAM control unit | 26L |
| N10/8 | Rear SAM control unit | 32L |
| N10/8 | Rear SAM control unit | 38L |
| U12 | Valid for left-hand drive vehicles | 27E |
| U1217 | Valid for model series 217 | 17A |
| U1222 | Valid for model series 222 | 1A |
| U13 | Valid for right-hand drive vehicles | 39E |
| W17 | Right rear seat ground point | 2L |
| W17 | Right rear seat ground point | 10L |
| W17 | Right rear seat ground point | 18L |
| W6/1 | Left taillamp trunk ground point | 23L |
| W6/1 | Left taillamp trunk ground point | 30L |
| W6/1 | Left taillamp trunk ground point | 35L |
| Z1z16 | Circuit 31 connector sleeve | 17E |
| Z1z16 | Circuit 31 connector sleeve | 23E |
| Z1z16 | Circuit 31 connector sleeve | 35E |
| Z1z16 | Circuit 31 connector sleeve | 29E |
| Z1z22 | Circuit 31 connector sleeve | 2G |
| Z1z22 | Circuit 31 connector sleeve | 9G |
| Z1z22 | Circuit 31 connector sleeve | 17G |
| Z1z23 | Circuit 31 connector sleeve | 2E |
| Z1z23 | Circuit 31 connector sleeve | 9E |
