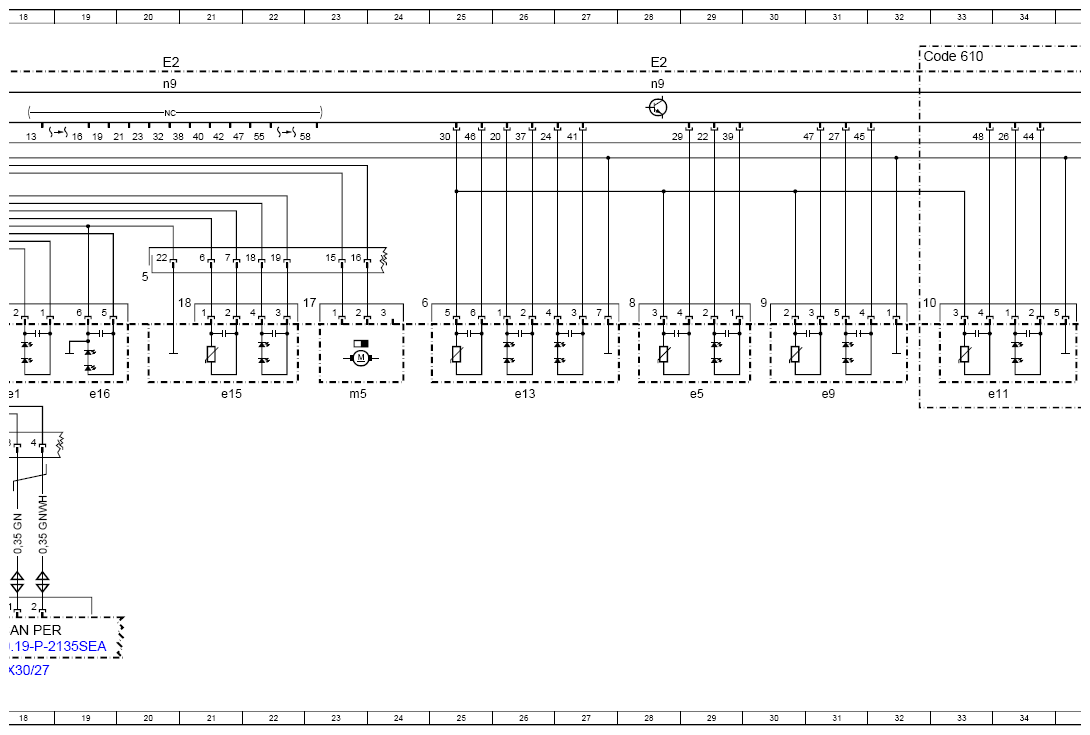

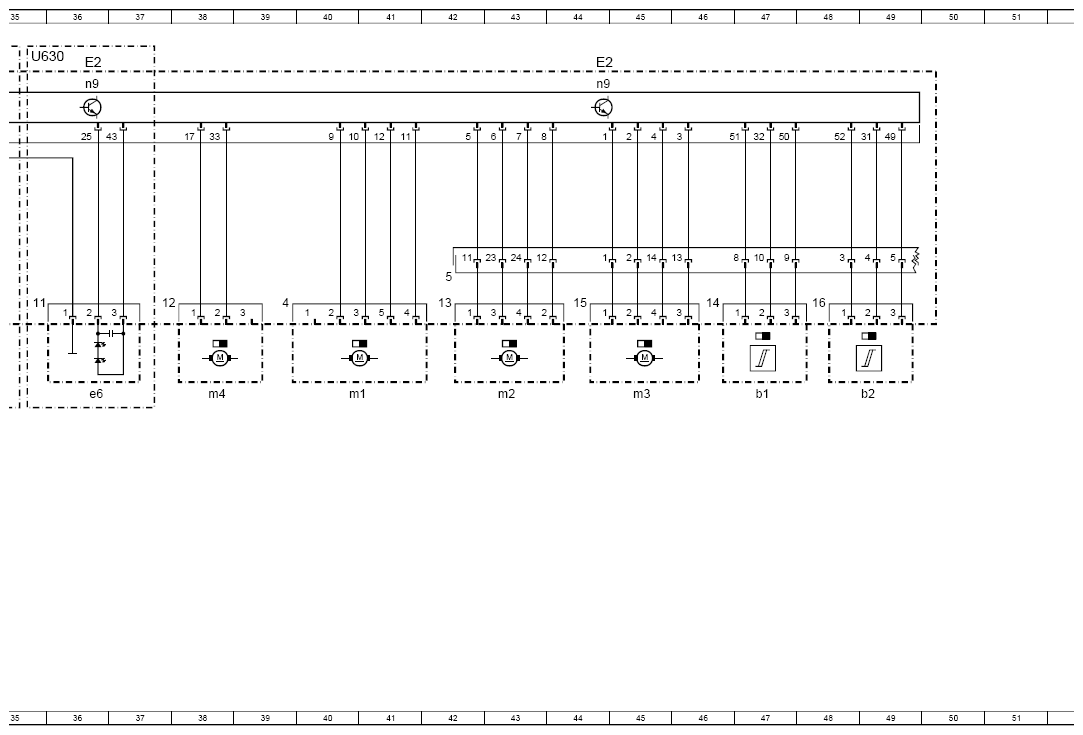

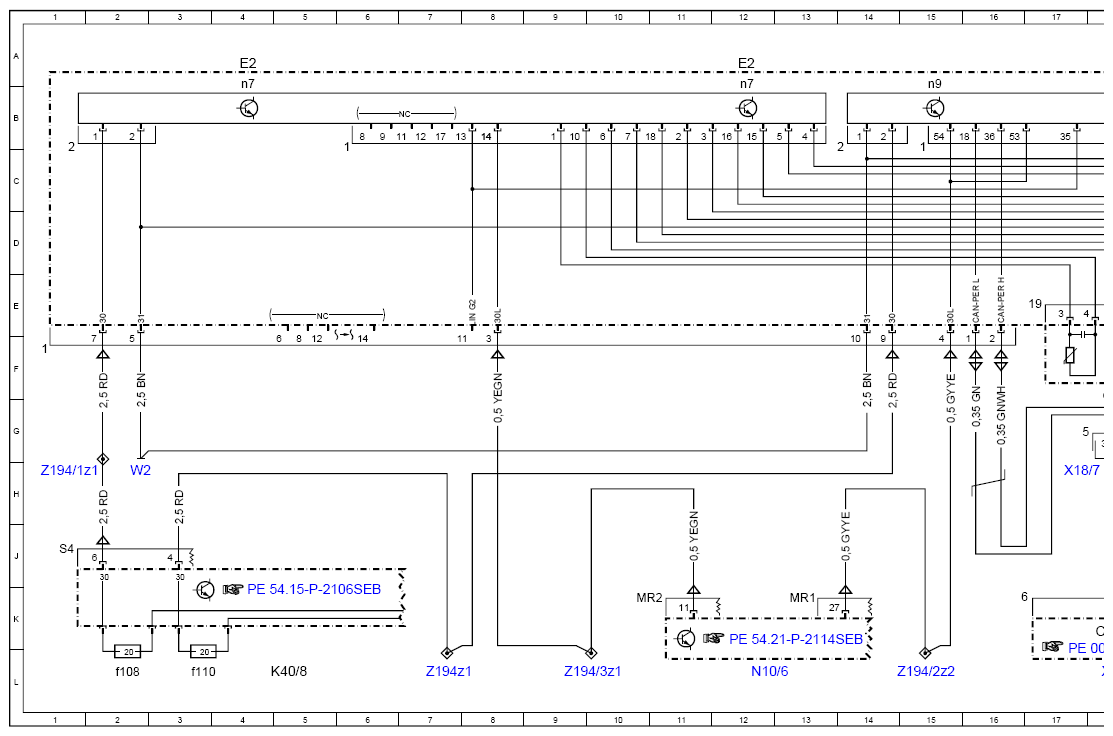

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97SEB
Model 217 up to model year 2018
with code 641 (Dynamic LED headlamps, left-hand traffic)
with code 642 (Dynamic LED headlamps, right-hand traffic)
Headlamp unit E2
Model 222 up to model year 2018
with code 640 (SAE dynamic LED headlamps, right-hand traffic)
with code 641 (Dynamic LED headlamps, left-hand traffic)
with code 642 (Dynamic LED headlamps, right-hand traffic)
Headlamp unit E2
| Code: | Designation: | Position: |
|---|---|---|

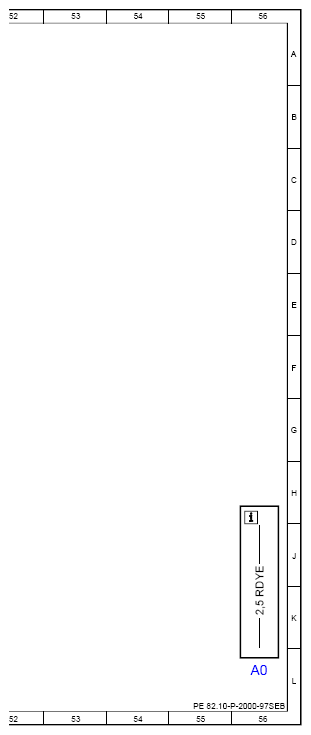

| A0 | Use of wiring diagrams | 56L |
| CAN PER | Peripherals CAN | 18K |
| Code 610 | Night View Assist | 32A |
| E2 | Right front lamp unit | 4A |
| E2 | Right front lamp unit | 12A |
| E2 | Right front lamp unit | 20A |
| E2 | Right front lamp unit | 28A |
| E2 | Right front lamp unit | 36A |
| E2 | Right front lamp unit | 44A |
| E2b1 | Right active curve illumination position sensor | 47F |
| E2b2 | Right light distribution position sensor | 49F |
| E2e1 | Right high beam | 18F |
| E2e11 | Right infrared lamp | 33F |
| E2e13 | Right parking light, standing light and daytime running light | 26F |
| E2e15 | Right low beam (short range) | 21F |
| E2e16 | Right low beam (long range) | 19F |
| E2e5 | Right front turn signal lamp | 29F |
| E2e6 | Right front side-marker lamp | 36F |
| E2e9 | Right cornering illumination | 31F |
| E2m1 | Right headlamp range adjustment actuator motor | 40F |
| E2m2 | Right active curve illumination actuator motor | 43F |
| E2m3 | Right light distribution actuator motor | 45F |
| E2m4 | Right LED signaling lights actuation module fan motor | 38F |
| E2m5 | Right LED driving lights actuation module fan motor | 23F |
| E2n7 | Actuation module for right front exterior lights LED | 4B |
| E2n7 | Actuation module for right front exterior lights LED | 12B |
| E2n9 | Right headlamp control unit | 15B |
| E2n9 | Right headlamp control unit | 20B |
| E2n9 | Right headlamp control unit | 28B |
| E2n9 | Right headlamp control unit | 36B |
| E2n9 | Right headlamp control unit | 44B |
| K40/8 | Engine fuse and relay module | 5L |
| K40/8f108 | Fuse 108 | 2L |
| K40/8f110 | Fuse 110 | 3L |
| N10/6 | Front SAM control unit | 12L |
| U630 | Valid for USA and Canada | 35A |
| W2 | Right front ground point (at lamp unit) | 2H |
| X18/7 | Vehicle interior and engine compartment electrical connector | 17H |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 18L |
| Z194/1z1 | Right lamp unit circuit 30 connector sleeve | 1H |
| Z194/2z2 | Left lamp unit circuit 30L connector sleeve | 15L |
| Z194/3z1 | Right lamp unit circuit 30L connector sleeve | 9L |
| Z194z1 | Left lamp unit circuit 30 connector sleeve | 7L |
