Wiring Diagram For Touchpad - PE82.00-P-2061-97SEB

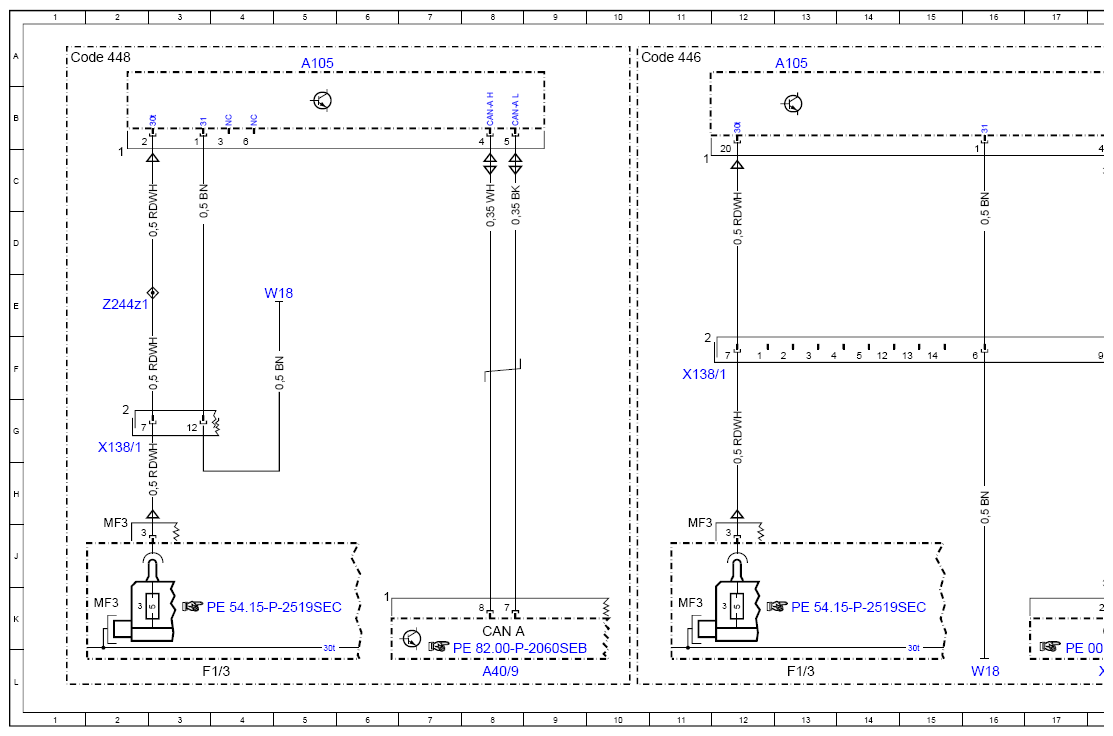

Model 217, 222 as of model year 2018 with code 448 (Touchpad) Control unit A105
Model 217, 222 as of model year 2019 with code 446 (Touchpad only) Control unit A105
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A105 | Touchpad | 5A |
| A105 | Touchpad | 13A |
| A105 | Touchpad | 19A |

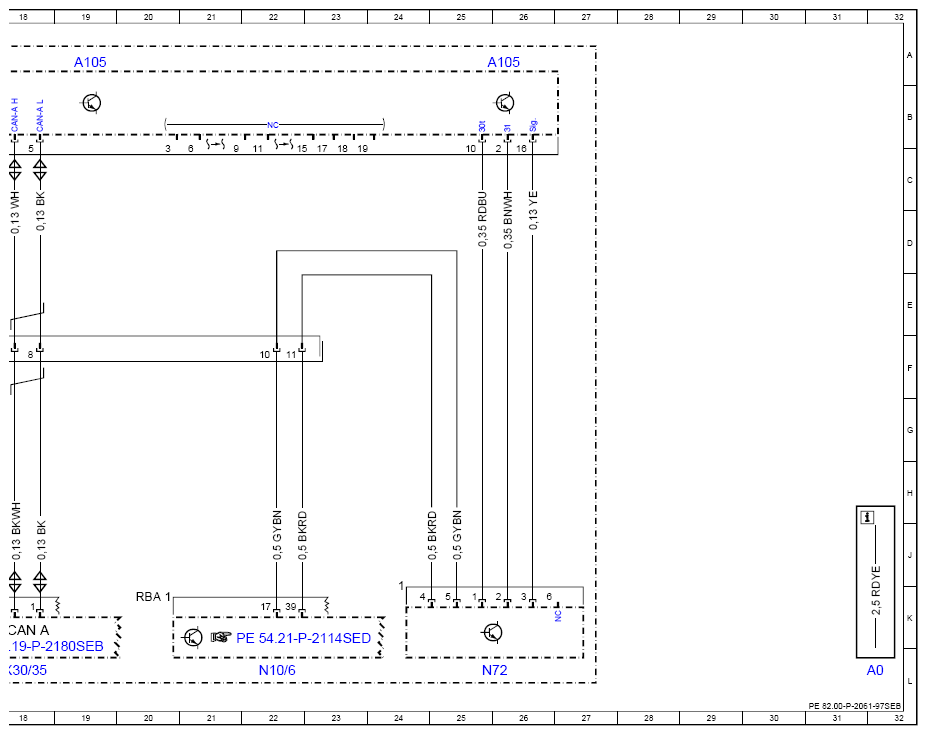

| A105 | Touchpad | 26A |
| A40/9 | Audio/COMAND control panel | 8L |
| CAN A | Telematics CAN | 8K |
| CAN A | Telematics CAN | 18K |
| Code 446 | Touchpad only | 10A |
| Code 448 | Touchpad | 1A |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3 | Passenger-side A-pillar fuse box | 13L |
| F1/3MF3 | Multiple fuse 3 | 2K |
| F1/3MF3 | Multiple fuse 3 | 11K |
| N10/6 | Front SAM control unit | 22L |
| N72 | Lower control panel | 25L |
| W18 | Left front seat crossmember ground point | 16L |
| W18 | Left front seat crossmember ground point | 5E |
| X138/1 | Front center console electrical connector | 2G |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 18L |
| Z244z1 | Touchpad terminal 30g connector sleeve | 2E |
