Removing And Installing Loudspeaker In Rear Center - AR82.62-P-7840LC
Model 217
with code 811 (High-End sound system)
| Remove/install | |||

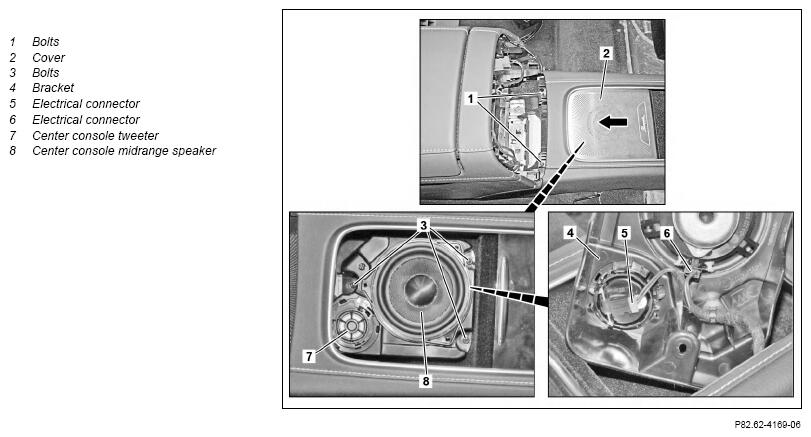

| 1 | Remove cover on center console | AR68.20-P-2350LF | |
| 2 | Remove bolt (1) | ||
| 3 | Slide out cover (2) in direction of arrow and remove | ||
| 4 | Remove bolt (3) | ||
| 5 | Remove bracket (4) | ||
| 6.1 | Disconnect electrical connector (5) | When removing the center console tweeter (7). | |
| 6.2 | Disconnect electrical connector (6) | When removing the center console midrange speaker (8). | |
| 7.1 | Unclip center console tweeter (7) from bracket (4) | When removing the center console tweeter (7). | |
| 7.2 | Remove center console midrange speaker (8) from bracket (4) | When removing the center console midrange speaker (8). | |
| 8 | Install in the reverse order |
